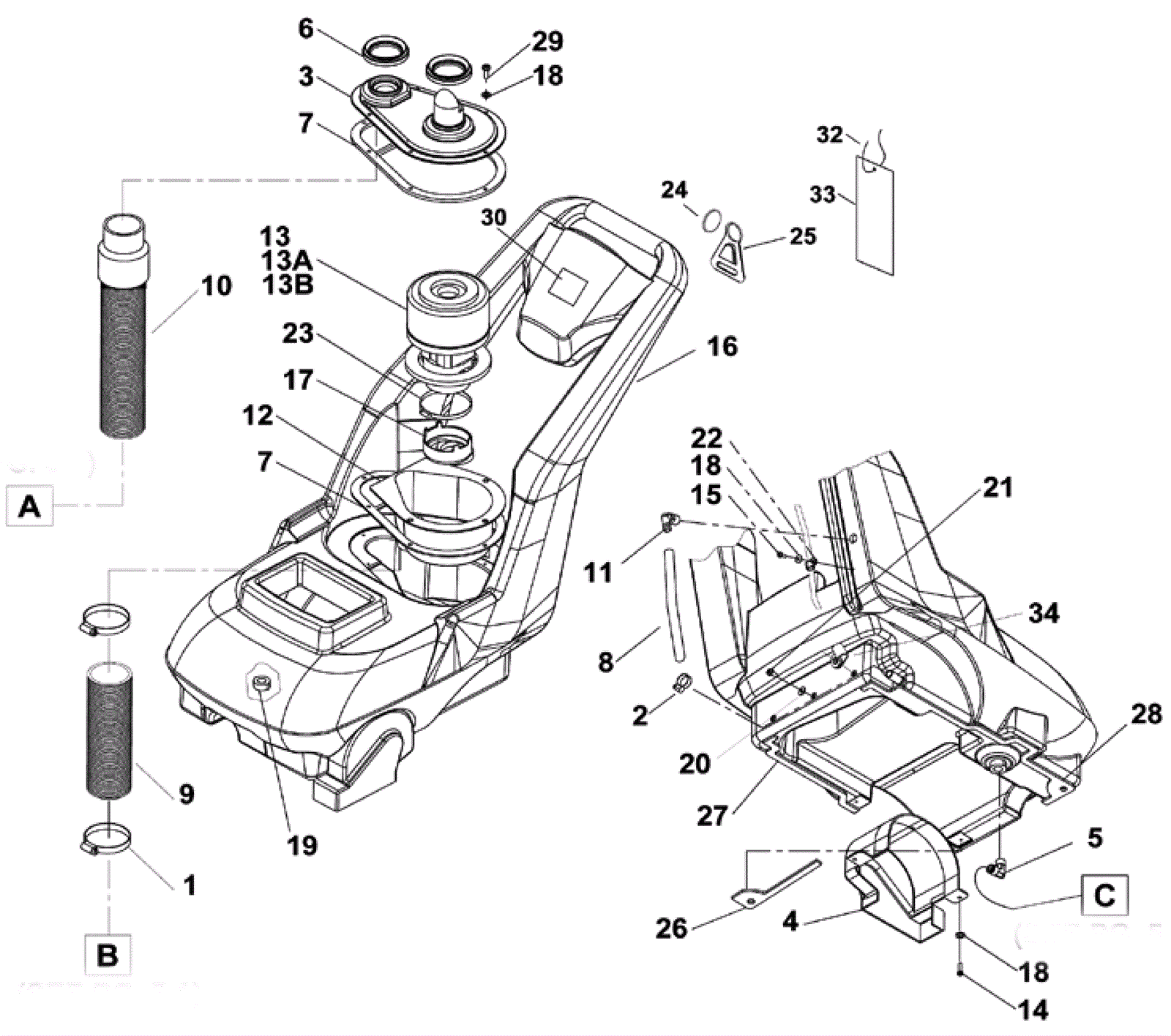

Solution Tank Assembly

#PartDescription ReqNotesAvailability
1 273-5693 Hose clamp 3
2 173-1821 Hose clamp 1
3 173-2230 Vacuum motor cover 1
4 173-2231 Belt cover 1
5 189-4166 Elbow 3/8 x 3/8 inch 1
6 173-2233 Gasket 2
7 173-2234 Gasket 2
8 173-2235 Hose 1/2 x 12 inch (clear) 1
9 173-0626 Hose 1 1/2 x 3 inch (black) 1
10 189-4175 Vacuum hose 1 1/2 x 15 1/2 inch 1
11 189-4166 Elbow 3/8 x 3/8 inch 1
12 173-2238 Vacuum motor housing 1
13a 173-2239 120V vacuum motor assembly 1
13b 173-0093 Exhaust filter 1
13c 273-4028 Carbon brush set (OBSOLETE) 4
14 173-2454 Screw 10-3/4 polyfast 2
15 999-0371 Screw 10-32 x 1/2 pan head phillips zinc plated 2
16 189-4179 Solution tank 1
17 173-0629 Cooling vent 1
18 999-0998 Washer #10 flat stainless steel 10
19 189-4181 3/8 inch mesh strainer 1
20 999-0123 Washer 1/4 SAE flat zinc plated 3
21 999-0522 Screw 1/4-20 x 1/2 pan head phillips stainless steel 3
22 173-2094 P clamp 2
23 173-2242 Hose clamp 1
24 173-2182 2 inch split ring 1
26 173-2243 Front left tank gasket 1
27 173-2244 Rear left tank gasket 1
28 173-2245 Right tank gasket (OBSOLETE) 1
29 173-0627 Screw 10 x 1 pan head phillips self tapping type b 6
30 992-9749 Front decal 1
32 173-3412 Cord 1/8 x 12 inch 1
33 189-4169 Instruction card 1
34 273-4014 Cable clamp 1/2 x 1/4 inch 1
