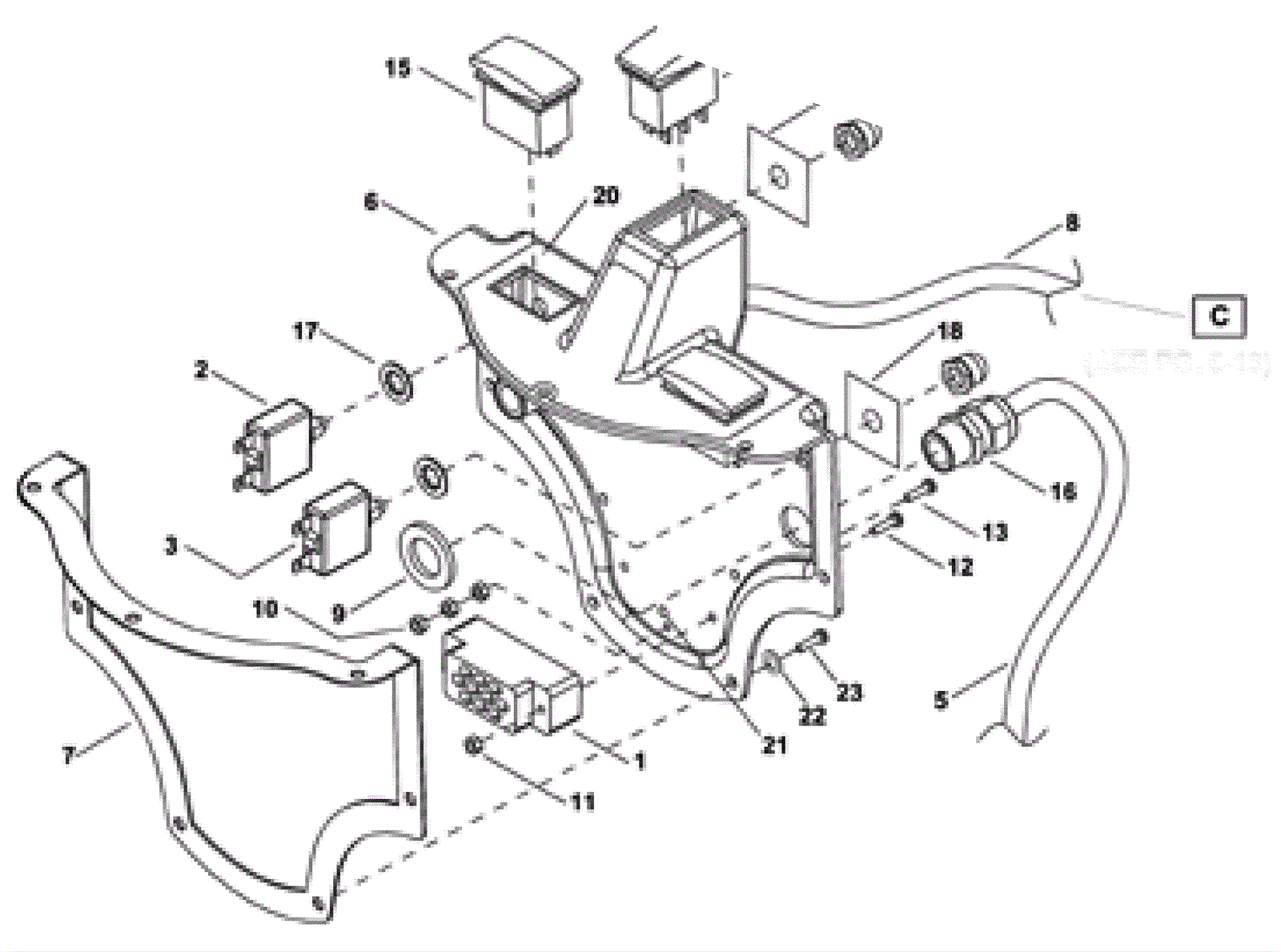

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
173-1888
|
Terminal block |
1 |
|
|
2 |
189-4092
|
15amp circuit breaker |
1 |
|
|
3 |
173-2053
|
6amp circuit breaker |
1 |
|
|
5a |
189-4164
|
14/3 pigtail cord with twist lock 22 inch |
1 |
|
|
5b |
991-5002
|
16/3 extension cord 50 foot (orange) |
1 |
|
|
6 |
N/A
|
Not available |
1 |
(panel) |
|
7 |
189-4197
|
Panel gasket |
1 |
|
|
8 |
173-2180
|
Main harness |
1 |
|
|
9 |
173-2478
|
Nut 1/2 conduit nickel plated thread (OBSOLETE) |
2 |
|
|
10 |
173-2472
|
Nut 10-32 with star washer |
3 |
|
|
11 |
173-2522
|
Nut 6-32 with star washer |
2 |
|
|
12 |
999-0511
|
Screw 6-32 x 1 pan head phillips zinc plated |
2 |
|
|
13 |
999-1044
|
Screw 10-32 x 3/4 pan head phillips stainless steel |
1 |
|
|
14 |
189-4165
|
3 position rocker switch |
1 |
|
|
15 |
189-0319
|
2 position rocker switch |
2 |
|
|
16 |
173-0682
|
Strain relief (OBSOLETE) |
2 |
|
|
17 |
173-2518
|
Washer 1/8 interlock |
1 |
|
|
18 |
173-9684
|
Circuit breaker brush label |
1 |
|
|
19 |
173-9683
|
Circuit breaker vac label |
1 |
|
|
20 |
189-4202
|
Control panel label |
1 |
|
|
21 |
173-2188
|
Ground symbol decal |
1 |
|
|
22 |
173-2808
|
Washer 7/32 x 1/2 stainless steel (black) |
7 |
|
|
23 |
173-2807
|
Screw 10-32 x 3/4 pan head phillips hi-lo |
7 |
|
|
N/S |
189-0312
|
3/8 inch circuit breaker boot |
2 |
|
|
