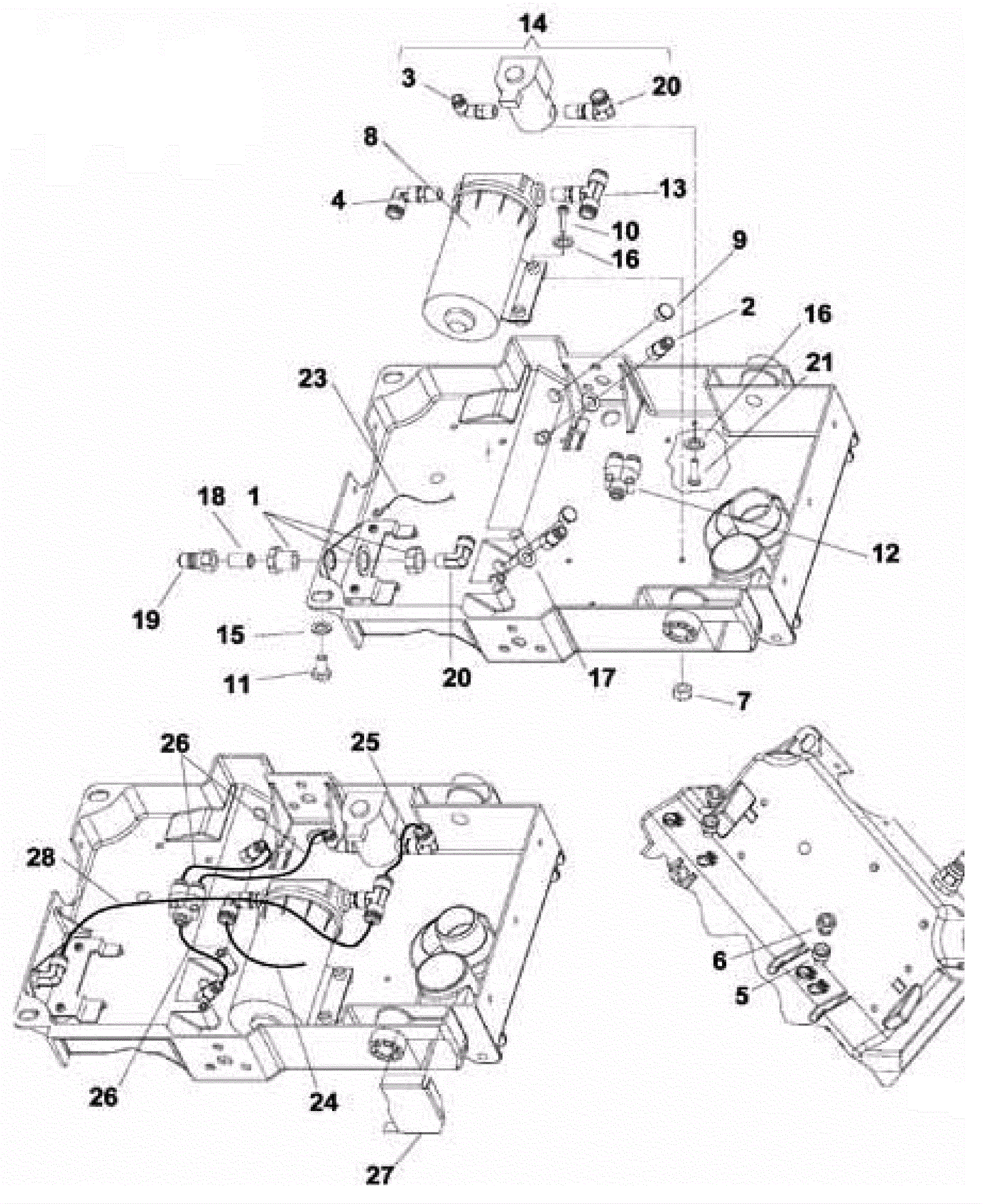

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
189-4207
|
Anchor coupling |
1 |
|
|
2 |
173-2207
|
Quick connect |
2 |
|
|
3 |
189-4208
|
90 degree swivel elbow 1/4 x 1/4 inch |
1 |
|
|
4 |
189-4209
|
90 degree swivel elbow 3/8 x 3/8 inch |
1 |
|
|
5 |
173-2210
|
Jet body |
2 |
|
|
6 |
173-0623
|
Mini promax jet |
2 |
|
|
7 |
999-0086
|
Nut 10-32 nylon insert lock zinc plated |
2 |
|
|
8 |
189-4159
|
Pump assembly |
1 |
|
|
9 |
173-2213
|
Nylon plug (OBSOLETE) |
2 |
|
|
10 |
999-0359
|
Screw 10-32 x 1 1/4 pan head phillips zinc plated |
2 |
|
|
11 |
999-1032
|
Screw 1/4-20 x 5/8 hex head stainless steel |
2 |
|
|
12 |
173-2214
|
Fitting |
1 |
|
|
13 |
189-4212
|
Tee fitting 3/8 x 3/8 inch |
1 |
|
|
14 |
173-2216
|
Solenoid valve assembly |
1 |
(includes 3,20) |
|
15 |
999-6684
|
Washer 1/4 flat stainless steel |
2 |
|
|
16 |
999-0998
|
Washer #10 flat stainless steel |
4 |
|
|
17 |
173-2555
|
Washer 7/16 x 3/16 inch rubber |
2 |
|
|
18 |
189-4213
|
1/4 inch nipple |
1 |
|
|
19 |
991-8150
|
1/4 inch BH2-61 male nipple (mate to QD80) |
1 |
|
|
20 |
189-4214
|
90 degree elbow 1/4 x 3/8 inch |
2 |
|
|
21 |
999-0896
|
Screw 10-32 x 3/8 round head phillips stainless steel |
2 |
|
|
23 |
173-2218
|
22 inch wire (green) |
1 |
|
|
24 |
189-4161
|
Urethane hose 3/8 x 29 inch |
1 |
|
|
25 |
189-4217
|
Nylon hose 3/8 x 6 inch |
1 |
|
|
26 |
189-4162
|
Urethane hose 1/4 x 6 inch |
3 |
|
|
27 |
173-2222
|
Intake screen |
1 |
|
|
28 |
173-8593
|
Nylon hose 3/8 x 29 inch |
1 |
|
|
