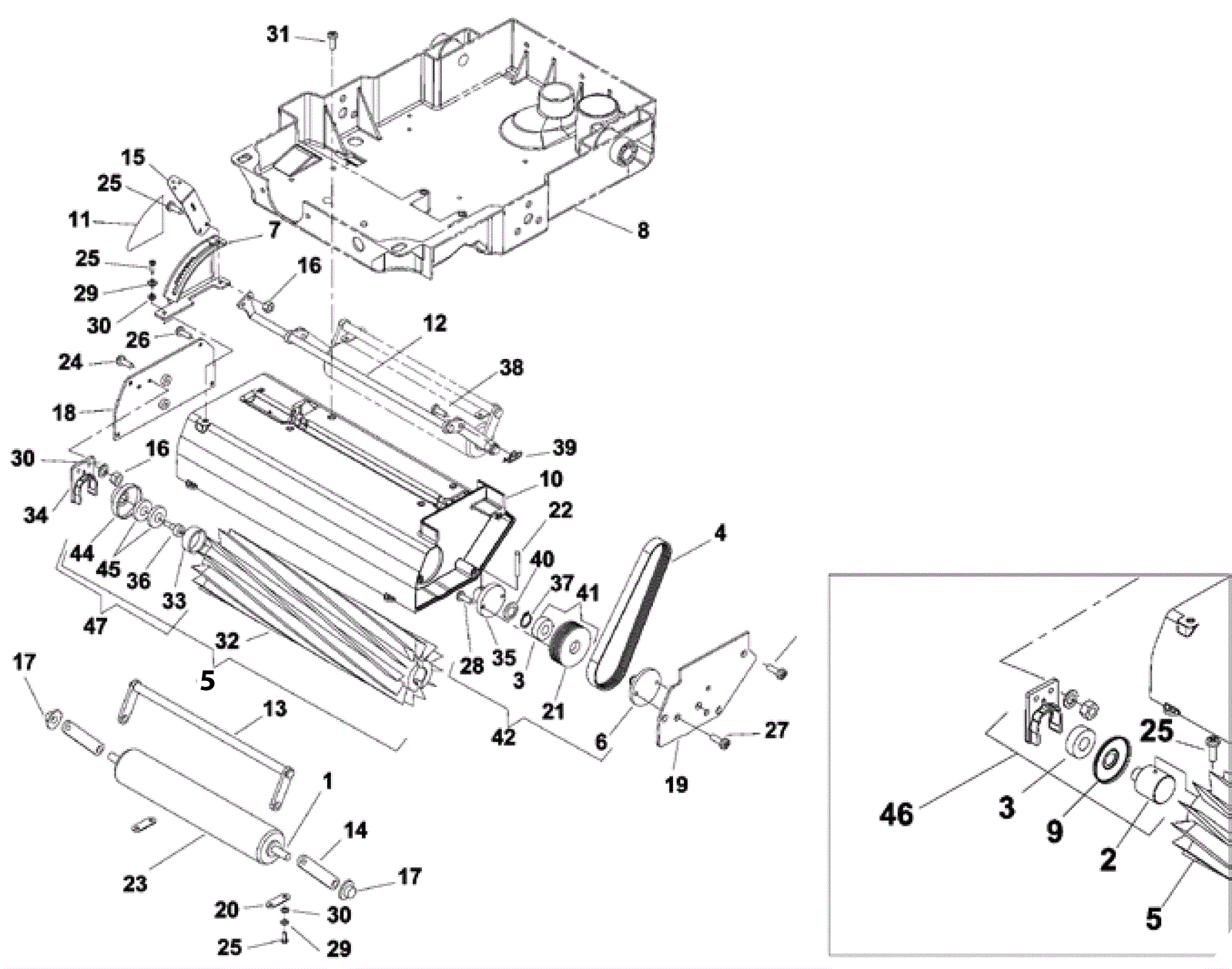

Brush Assembly

#PartDescription ReqNotesAvailability
1 173-2061 Roller axle 1
2 189-4220 Brush bearing adapter 1
3 289-0021 Bearing 1 1/8 x 1/2 x 3/8 2
4 173-2139 Belt 1
5 173-7506 15 inch brush- CYLINDRICAL 1 (includes 32-33, 36, 44-45, 47)
6 189-4222 Pulley bracket 1
7 173-2142 Brush height bracket 1
8 173-0617 Frame 1
9 189-4152 Threaded guard 2
10 173-2145 Brush housing (18 inch) (OBSOLETE) 1
11 173-6407 Brush height decal 1
12 173-2147 Brush height linkage assembly 1
13 173-2148 Roller support linkage assembly 1
14 173-2149 Front roller link 2
15 173-2150 Height adjustment lever 1
16 999-0086 Nut 10-32 nylon insert lock zinc plated 4
17 173-2535 Nut 3/8 push 2
18 173-2151 Right brush housing plate 1
19 173-2152 Left brush housing plate 1
20 173-2153 Axle retainer plate 2
21 173-2154 Pulley 1
22 173-2880 Roll pin 1
23 173-2155 Brush roller 1
24 999-0087 Screw 10-32 x 5/8 flat head slotted zinc plated 2
25 999-0371 Screw 10-32 x 1/2 pan head phillips zinc plated 6
26 999-0723 Screw 10-32 x 1/2 pan head slotted stainless steel 7
27 999-9075 Screw 10-32 x 3/8 flat head socket steel 2
28 999-0322 Screw 10-24 x 1/2 socket head alloy plain finish 2
29 999-0311 Washer #10 external star lock zinc plated 4
30 999-0998 Washer #10 flat stainless steel 6
31 999-1080 Screw 1/4-20 x 5/8 truss head phillips stainless steel 4
32 273-0786 15 inch cylidrical brush 1
33 173-5220 Tolerance ring 7/8 inch 1
34 189-4155 Bearing clip 1
35 189-4234 Brush driver 1
36 992-9748 Bolt shoulder 3/8 OD x 3/8 stainless steel 1
37 173-1059 Snap ring (OBSOLETE) 1
38 173-2158 Clevis pin (OBSOLETE) 2
39 173-1130 Cotter ring 2
40 N/A Not available 1 (ring)
41 173-4239 Cover 1 (includes 3, 21)
42 189-4156 Brush driver assembly 1 (includes 3, 6, 21, 28, 35)
44 173-5223 Brush bearing adapter 1
45 173-5224 Bearing 2
46 173-4099 Brush bearing assembly kit 1 (includes 2-3, 9)
47 173-4152 Brush bearing kit 1 (includes 33, 36, 44-45)
