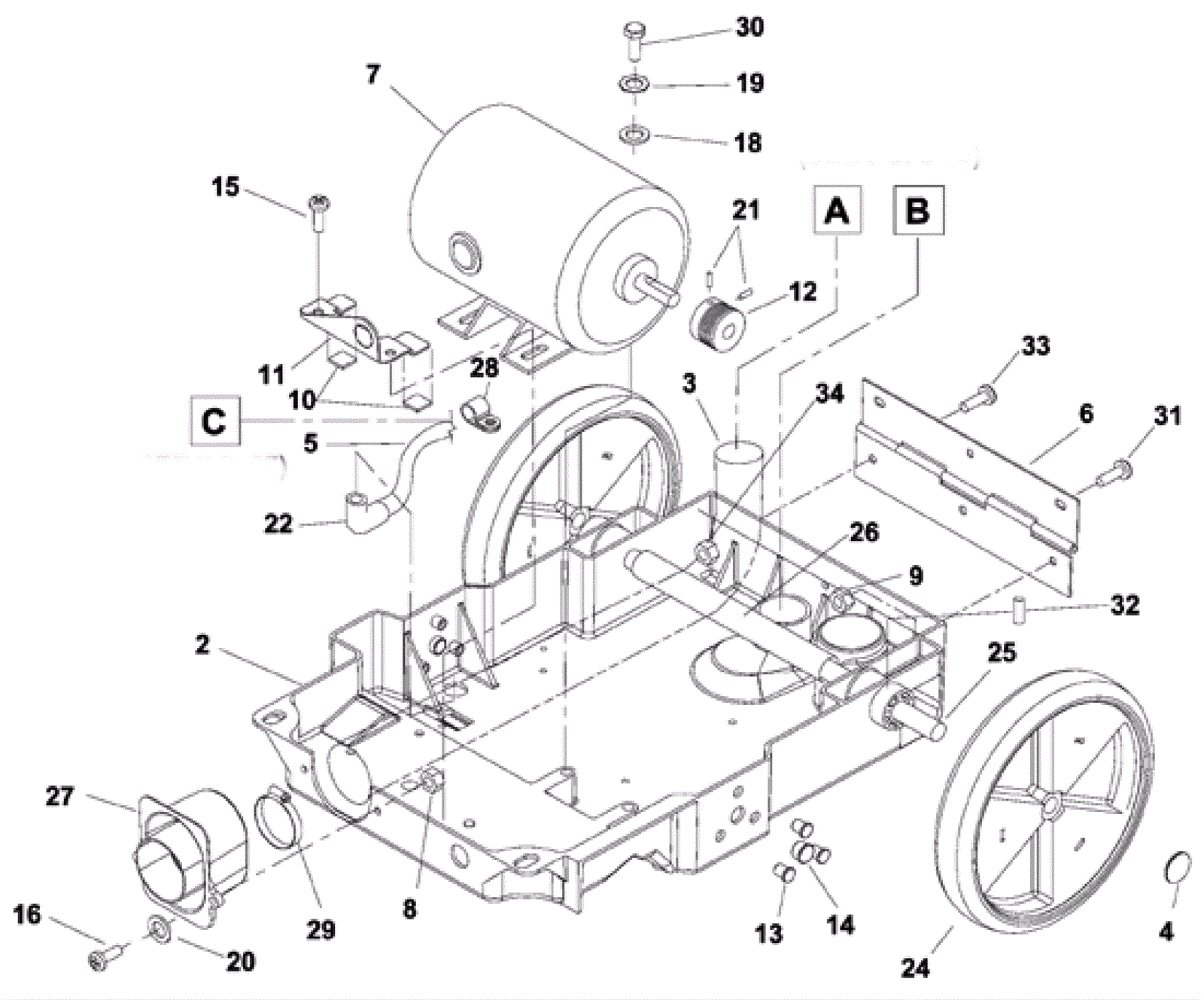

Frame Assembly

#PartDescription ReqNotesAvailability
2 173-0617 Frame 1
4 173-2064 Axle cap 2
5 173-2180 Main harness 1
8 999-0086 Nut 10-32 nylon insert lock zinc plated 2
9 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel 3
11 173-2195 Clamping plate 1
12 173-2196 Pulley 1
15 999-0509 Screw 1/4-20 x 3/8 pan head phillips zinc plated 2
18 999-0123 Washer 1/4 SAE flat zinc plated 2
22 173-2199 90 degree strain relief 1
24 273-4000 10 inch gray wheel 2
26 173-2201 Heat shrink 10 in
27 189-4247 Frame and tank seal 1
29 273-5693 Hose clamp 1
30 999-0018 Bolt 1/4-20 x 1/2 hex cap grade 5 zinc plated 2
33 999-0625 Screw 1/4-20 x 1 1/4 pan head phillips stainless steel 1
