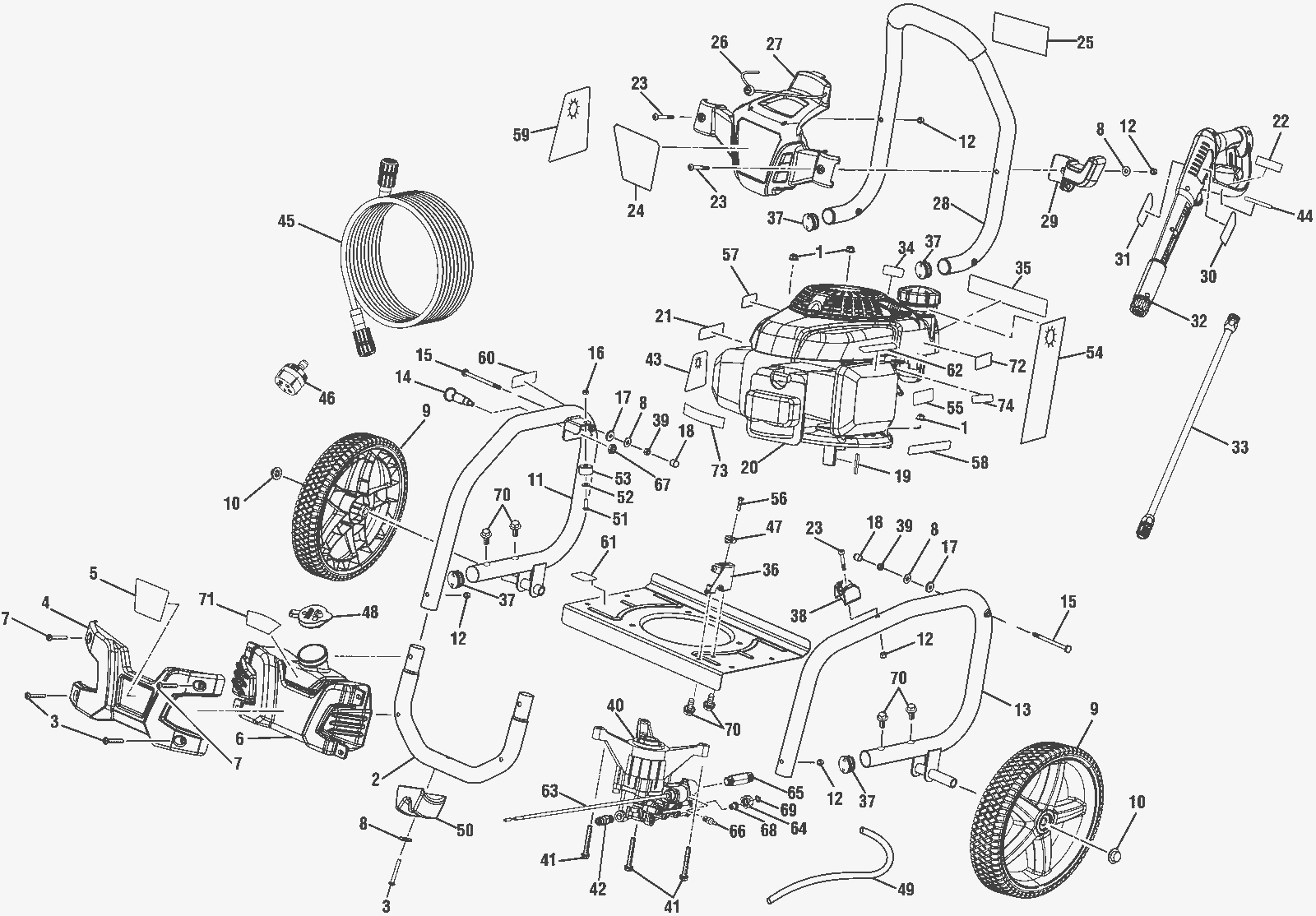

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
992-0804
|
Lock nut M8 x 1 1/4 |
3 |
|
|
2 |
992-0805
|
Front frame |
1 |
(includes 3, 8, 50) |
|
3 |
992-0806
|
Screw M6 x 1.25 in torx pan head (OBSOLETE) |
3 |
|
|
4 |
992-0807
|
Detergent tank cover |
1 |
|
|
5 |
992-0809
|
Detergent tank decal |
1 |
|
|
6 |
992-0810
|
Detergent tank with outlet (OBSOLETE) |
1 |
|
|
7 |
992-0811
|
Bolt M6 x 48mm T30 torx pan head (OBSOLETE) |
2 |
|
|
8 |
999-6684
|
Washer 1/4 flat stainless steel |
4 |
|
|
9 |
992-0812
|
Wheel |
2 |
|
|
10 |
992-0813
|
Metal cap |
2 |
|
|
11 |
992-0814
|
Right hand main frame assembly |
1 |
(includes 16, 37, 51-53) |
|
12 |
992-0815
|
M6 lock nut |
5 |
|
|
13 |
992-0816
|
Left hand main frame assembly |
1 |
(includes 37) |
|
14 |
992-0817
|
Handle release knob |
1 |
|
|
15 |
999-0682
|
Bolt 1/4-20 x 3 1/2 hex head grade 5 zinc plated |
2 |
|
|
16 |
992-0818
|
Flange nut M4-.7 (OBSOLETE) |
1 |
|
|
17 |
992-0819
|
Spacer |
2 |
|
|
18 |
992-0820
|
Cap |
2 |
|
|
19 |
992-0821
|
Output shaft key |
1 |
|
|
20 |
N/A
|
Not available |
1 |
(engine) |
|
21 |
992-0822
|
Hot surface decal |
1 |
|
|
22 |
992-0823
|
Trigger handle warning decal (OBSOLETE) |
1 |
|
|
23 |
992-0824
|
Screw M6 x 48mm phillips button head |
3 |
|
|
24 |
992-0825
|
Performance decal |
1 |
|
|
25 |
992-0826
|
Quick start decal (OBSOLETE) |
1 |
|
|
26 |
992-0827
|
Bungee cord and bead assembly |
1 |
|
|
27 |
992-0828
|
Hose storage (OBSOLETE) |
1 |
(includes 25-26) |
|
28 |
992-0829
|
Handle assembly (OBSOLETE) |
1 |
(includes 37) |
|
29 |
992-0830
|
Trigger handle holder |
1 |
|
|
30 |
992-0831
|
Trigger handle warning decal |
1 |
|
|
31 |
992-0832
|
Logo decal |
1 |
|
|
32 |
992-0833
|
Trigger handle assembly with decal (OBSOLETE) |
1 |
(includes 22, 30, 44) |
|
33 |
992-0834
|
Spray wand |
1 |
|
|
34 |
992-0835
|
E85 decal |
1 |
|
|
35 |
992-0836
|
Danger decal |
1 |
|
|
36 |
992-0837
|
Idle down speed controller assembly |
1 |
|
|
37 |
992-0838
|
Plastic tube cap |
4 |
|
|
38 |
992-0839
|
Spray wand holder |
1 |
|
|
39 |
992-0840
|
Lock nut 1/4-20 |
2 |
|
|
40 |
992-0841
|
Pump |
1 |
(includes 63-66, 68-69) |
|
41 |
992-0842
|
Bolt M8 x 60mm flange head (OBSOLETE) |
3 |
|
|
42 |
992-0843
|
Thermal release valve (OBSOLETE) |
1 |
|
|
43 |
992-0844
|
Oil dipstick hang tag |
1 |
|
|
44 |
992-0845
|
Trigger handle decal |
1 |
|
|
45 |
992-0846
|
High pressure hose 25 ft |
1 |
|
|
46 |
992-0847
|
5-in-1 change over nozzle |
1 |
|
|
47 |
992-0848
|
Idle down clip (OBSOLETE) |
1 |
|
|
48 |
992-0849
|
Detergent tank cap |
1 |
|
|
49 |
992-0850
|
Injection hose |
1 |
|
|
50 |
992-0851
|
Rubber foot (OBSOLETE) |
1 |
|
|
51 |
999-1898
|
Screw M4-.7 x 12mm pan head phillips stainless steel |
1 |
|
|
52 |
999-9089
|
Washer M4 flat stainless steel |
1 |
|
|
53 |
992-0852
|
Rubber bumper |
1 |
|
|
54 |
992-0853
|
Warning hang tag |
1 |
|
|
55 |
992-0854
|
Fuel valve decal |
1 |
|
|
56 |
992-0855
|
Screw M5 x 20mm cap head |
1 |
|
|
57 |
992-0856
|
Combustion warning decal (OBSOLETE) |
1 |
|
|
58 |
992-0857
|
EMC decal |
1 |
|
|
59 |
992-0858
|
Nozzle hang tag |
1 |
|
|
60 |
992-0859
|
Release pin decal |
1 |
|
|
61 |
992-0860
|
Oil dipstick decal |
1 |
|
|
62 |
992-0861
|
Inquiries decal |
1 |
|
|
63 |
992-0862
|
Idler assembly (OBSOLETE) |
1 |
|
|
64 |
992-0863
|
Spindle |
1 |
|
|
65 |
992-0864
|
Outlet tube |
1 |
|
|
66 |
992-0865
|
Detergent suction kit |
1 |
|
|
67 |
992-0866
|
Lock nut 1/2-20 |
1 |
|
|
68 |
992-0867
|
Collar |
1 |
|
|
69 |
992-0868
|
Filter screen (OBSOLETE) |
1 |
|
|
70 |
999-1886
|
Screw M6-1 x 16mm hex flange |
6 |
|
|
71 |
992-0869
|
Detergent tank decal |
1 |
|
|
72 |
992-0870
|
Do not mix decal |
1 |
|
|
73 |
992-0871
|
Idle down decal |
1 |
|
|
74 |
992-0872
|
On/off decal |
1 |
|
|
N/S |
992-0873
|
Wire tie |
1 |
|
|
