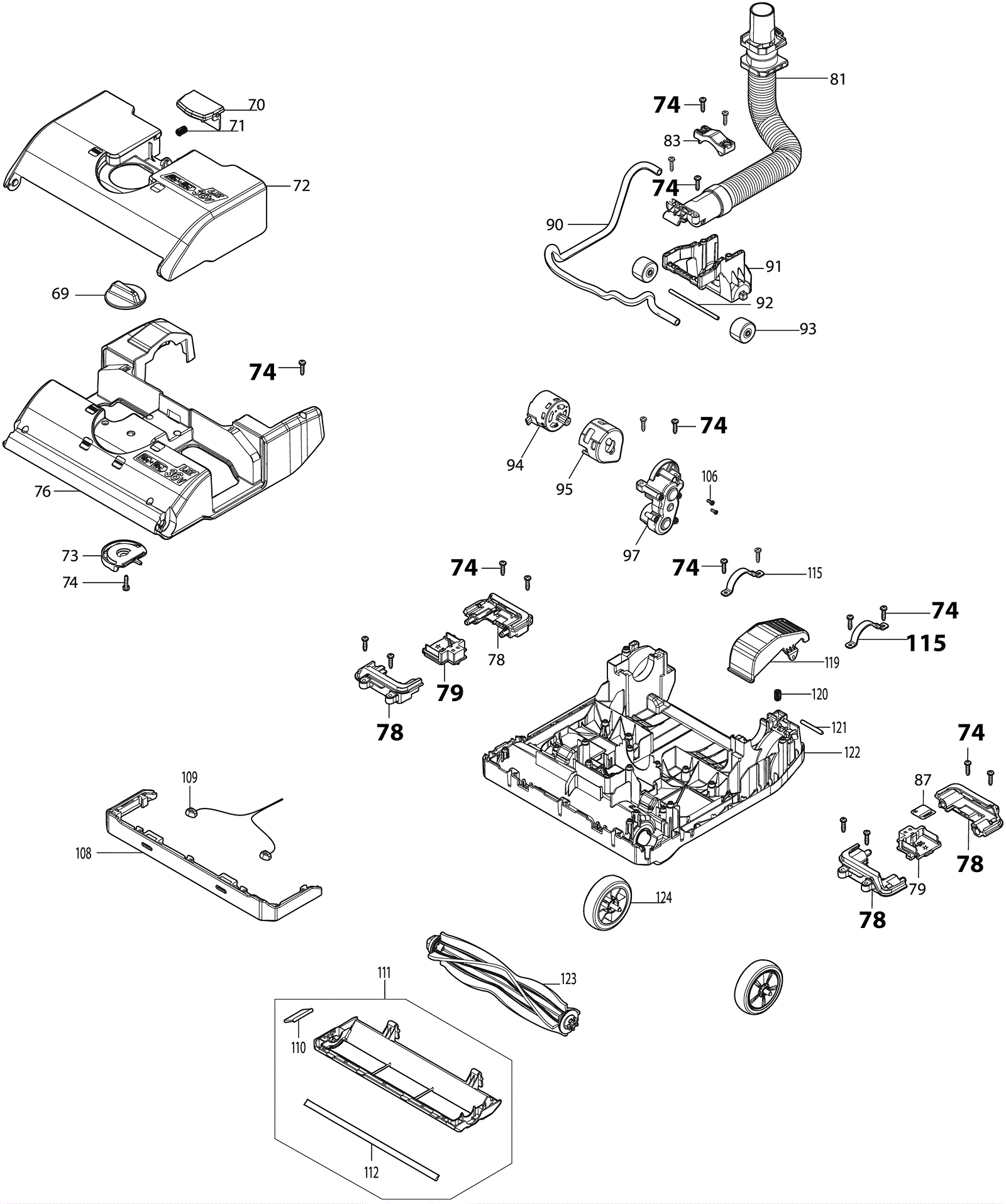

XCV19Z Lower Assembly

#PartDescriptionPriceReqNotesAvailability
69 992-9598 Height change lever Call for price 1 usually ships 17-33 days
70 992-9599 Lock lever Call for price 1 usually ships 17-33 days
71 992-9600 Compression spring Call for price 1 usually ships 17-33 days
72 992-9601 Battery cover Call for price 1 usually ships 17-33 days
73 992-9602 Cam Call for price 1 usually ships 17-33 days
74 992-9548 Screw 4 x 16 tapping Call for price 27 usually ships 17-33 days
76 992-9603 Upper housing Call for price 1 usually ships 17-33 days
78a 992-9604 Terminal case set Call for price 4 (includes 78b) usually ships 17-33 days
78b 992-9605 Rubber pin 6 Call for price 8 usually ships 17-33 days
79 992-9606 Terminal Call for price 2 usually ships 17-33 days
81 992-9607 Hose complete 28-0.2 Call for price 1 usually ships 17-33 days
83 992-9608 Cam plate Call for price 1 usually ships 17-33 days
87 992-9609 XCV19 serial number decal Call for price 1 usually ships 17-33 days
90 992-9610 Tube Call for price 1 usually ships 17-33 days
91 992-9611 Front roller holder Call for price 1 usually ships 17-33 days
92 992-9612 Front roller shaft Call for price 1 usually ships 17-33 days
93 992-9613 Front roller Call for price 2 usually ships 17-33 days
94 992-9614 DC motor Call for price 1 usually ships 17-33 days
95 992-9615 Tube joint Call for price 1 usually ships 17-33 days
97 992-9616 Brush gear assembly Call for price 1 usually ships 17-33 days
106 999-9225 Screw M3-0.5 x 8 pan head $0.99 2 usually ships 11-24 days
108 992-9617 Bumper Call for price 1 usually ships 17-33 days
109 992-9618 LED circuit Call for price 1 usually ships 17-33 days
110 992-9619 Side brush Call for price 1 usually ships 17-33 days
111 992-9620 Bottom plate assembly $43.48 1 (includes 110, 112) usually ships 17-33 days
112 992-9621 Brush Call for price 1 usually ships 17-33 days
115 992-9622 Hinge holder Call for price 2 usually ships 17-33 days
119 992-9623 Foot lever Call for price 1 usually ships 17-33 days
120 992-9624 Compression spring Call for price 1 usually ships 17-33 days
121 992-9625 Pin 4 Call for price 1 usually ships 17-33 days
122a 992-9626 Lower housing complete Call for price 1 (includes 122b) usually ships 17-33 days
122b 992-9627 Caution decal Call for price 1 usually ships 17-33 days
123 992-9634 Brush set complete $124.67 1 usually ships 17-33 days
124 992-9628 Caster 75 complete Call for price 2 usually ships 17-33 days
N/S 992-9629 Long sash nozzle set Call for price 1 usually ships 17-33 days
N/S 992-9630 Round brush set Call for price 1 usually ships 17-33 days
