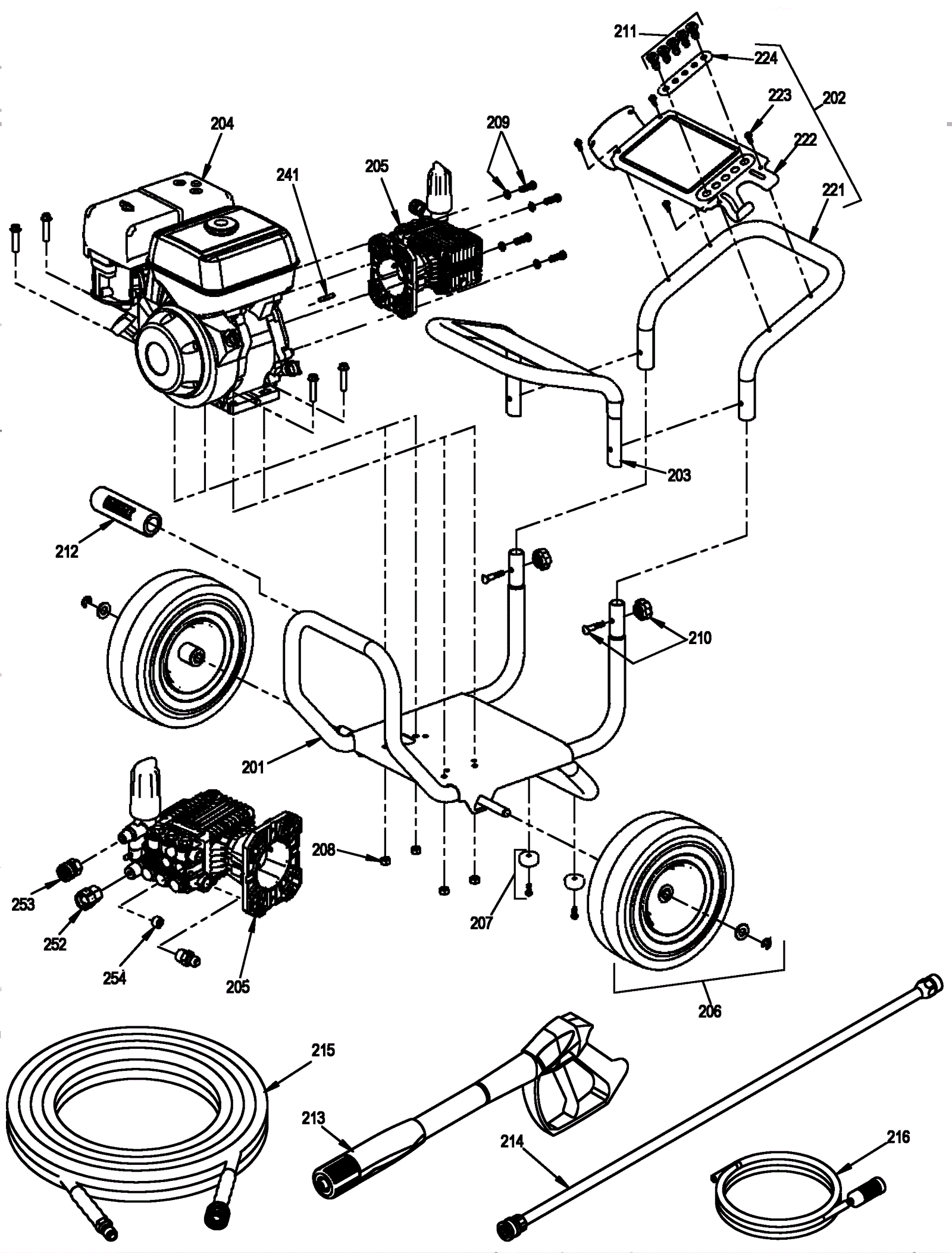

DXPW3835 General Assembly

#PartDescriptionPriceReqNotesAvailability
201 992-9245 Frame $130.01 1 usually ships 1-5 days
202 992-9246 Rear handle assembly $56.32 1 (includes 221-224) usually ships 1-5 days
203 992-9247 Handle $45.43 1 usually ships 1-5 days
204 992-9244 Engine $2,030.46 1 usually ships 1-5 days
205 992-9248 Pump assembly $1,436.28 1 usually ships 1-5 days
206 992-9253 Knob and bolt assembly $16.64 2 usually ships 1-5 days
207 992-9250 Foot $19.79 2 usually ships 1-5 days
208 992-9251 Hardware kit $20.98 1 usually ships 1-5 days
209 992-9252 Hardware kit $18.35 1 usually ships 1-5 days
210 992-9253 Knob and bolt assembly $16.64 1 usually ships 1-5 days
211 992-9254 Nozzle set $31.10 1 usually ships 1-5 days
212 992-9255 Handle grip $24.41 1 usually ships 1-5 days
213 992-9256 Spray gun $110.08 1 usually ships 1-5 days
214 992-9257 Lance $67.18 1 usually ships 1-5 days
215 992-0113 50 foot high pressure hose $112.99 1 usually ships 1-5 days
216 992-9258 Chemical hose $28.19 1 usually ships 1-5 days
221 992-9259 Rear handle $16.37 1 usually ships 1-5 days
222 992-9260 Dashboard $29.74 1 usually ships 1-5 days
223 N/A Not available Call for price 1 (screw) usually ships 3-26 days
224 992-9261 Rubber nozzle holder $17.01 1 usually ships 1-5 days
241 992-9262 Woodruff key $16.02 1 usually ships 1-5 days
252 992-9263 Hose adapter $17.82 1 usually ships 1-5 days
253 992-9264 Coupler $18.17 1 usually ships 1-5 days
254 992-9265 Thermal relief valve $27.80 1 usually ships 1-5 days
N/S 992-9266 Nozzle cleaning tool $25.80 1 usually ships 1-5 days
