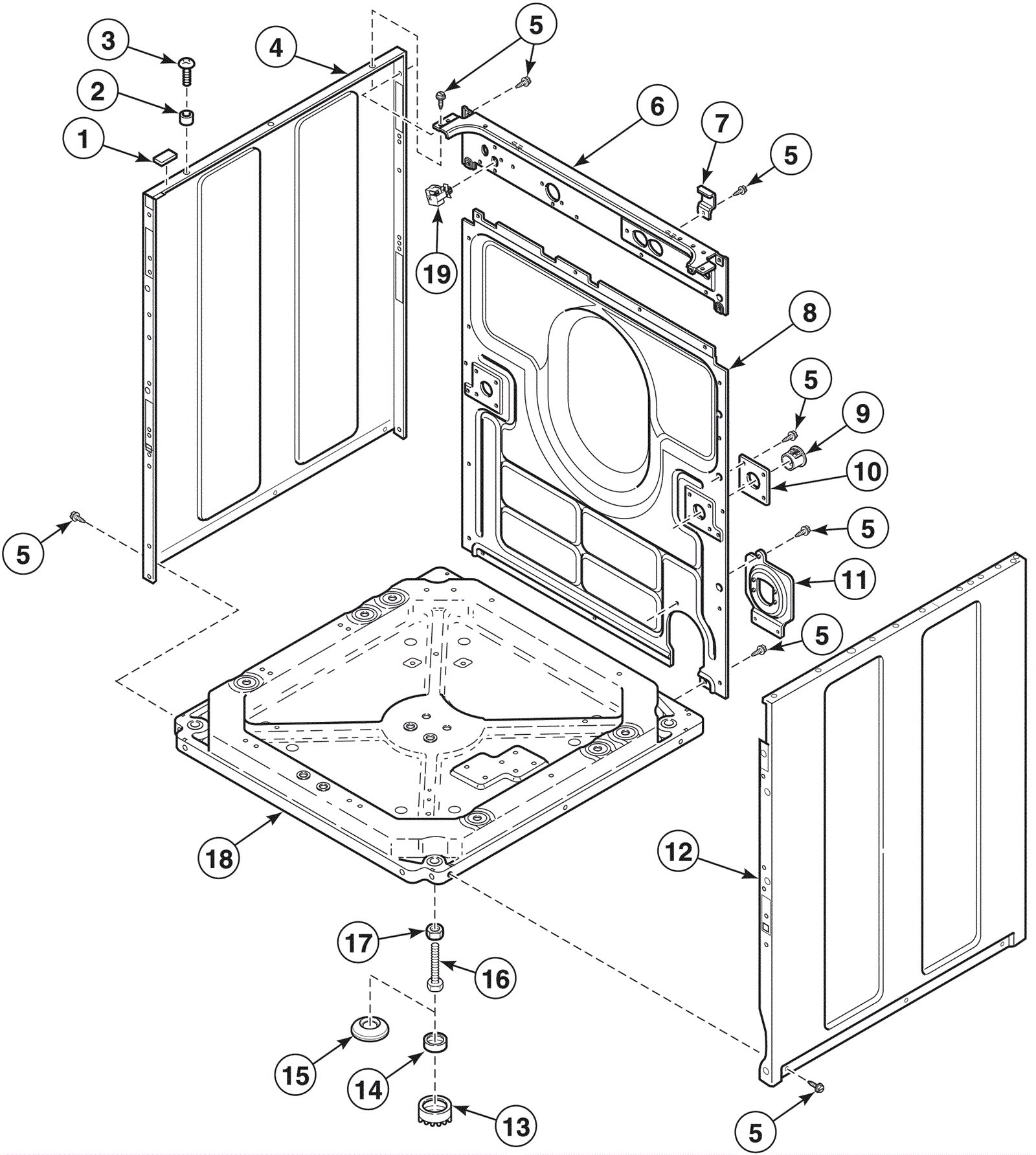

UFNBGBSP115TW81 Side, Base and Rear Panels Assembly

#PartDescriptionPriceReqNotesAvailability
1 992-0486 Bumper pad Call for price 1 usually ships 3-9 days
2 992-0351 Panel locator Call for price 1 usually ships 3-9 days
3 992-0317 Screw Call for price 1 usually ships 3-9 days
4a 992-0490 Left hand cabinet side panel (white) Call for price 1 (includes gusset with hardware) usually ships 3-9 days
4b 992-0633 Left hand cabinet panel (bisque) Call for price 1 (includes gusset with hardware) usually ships 3-9 days
4c 992-0489 Left hand cabinet side panel (gray) Call for price 1 usually ships 3-9 days
5 992-0319 Screw Call for price 8 usually ships 3-9 days
6a 992-0491 Rear panel Call for price 1 (before SN 1810000002) usually ships 3-9 days
6b 992-0492 Rear panel Call for price 1 (after SN 1810000001) usually ships 3-9 days
7 992-0493 Top hinge Call for price 1 usually ships 3-9 days
8 992-0494 Rear panel Call for price 1 usually ships 3-9 days
9 992-0495 Shipping plug Call for price 1 usually ships 3-9 days
10 992-0496 Shipping plate Call for price 1 usually ships 3-9 days
11 992-0497 Drain hose bracket Call for price 1 usually ships 3-9 days
12a 992-0499 Right hand cabinet side panel (gray) Call for price 1 usually ships 3-9 days
12b 992-0500 Right hand cabinet side panel (white) Call for price 1 usually ships 3-9 days
12c 992-0634 Right hand side panel (bisque) Call for price 1 usually ships 3-9 days
13 992-0502 Rubber foot Call for price 1 (install over 14) usually ships 3-9 days
14 992-0503 Rubber foot Call for price 1 usually ships 3-9 days
15a 992-0504 Anchor Call for price 1 (includes 4 rubber discs) usually ships 3-9 days
15b 992-0505 Anchor floor mount Call for price 1 (includes 2 rubber discs) usually ships 3-9 days
16 992-0501 Leveling leg Call for price 1 usually ships 3-9 days
17 992-0506 Nut Call for price 1 usually ships 3-9 days
18 992-0507 Base Call for price 1 usually ships 3-9 days
19 992-0508 Pressure sensor Call for price 1 usually ships 3-9 days
N/S 992-0509 Porcelain touch up paint (white) Call for price 1 usually ships 3-9 days
N/S 992-0635 Porcelain touch-up paint (bisque) Call for price 1 usually ships 3-9 days
N/S 992-0510 Paint Call for price 1 usually ships 3-9 days
