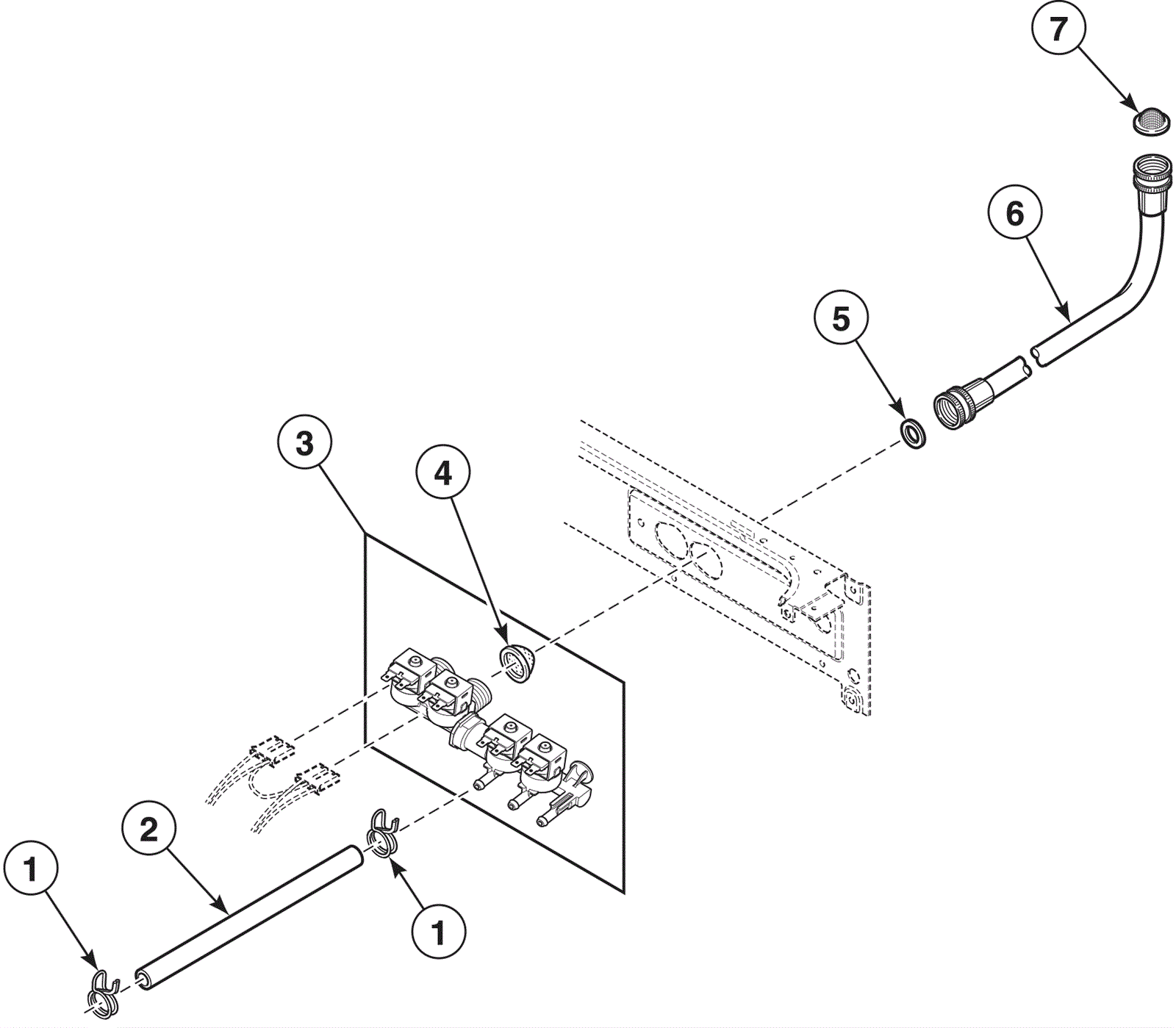

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
992-0614
|
Hose clamp |
2 |
|
|
2 |
992-0379
|
Dispenser inlet hose |
1 |
|
|
3 |
992-0616
|
Mixing valve |
1 |
(includes 4) |
|
4 |
992-0390
|
Mixing valve screen |
1 |
|
|
5 |
267-1016
|
WASHER,FLAT NON-FERROUS EPDM .593x1.031 |
1 |
|
|
6a |
267-1013
|
HOSE,INLET WATER-IEC(3/8 x 48)GHT/GHT (Red = Hot) |
1 |
(4 feet, marked for hot water) (2 standard thread hose couplings) |
|
6b |
267-1014
|
HOSE,INLET WATER-IEC(3/8 x 48)GHT/GHT (Blue = Cold) |
1 |
(4 feet, marked for cold water) (2 standard thread hose couplings) |
|
7a |
267-1025
|
WASHER,STRAINER,3/4 inch PIPE |
1 |
(filter screen) |
|
7b |
992-0391
|
Washer |
1 |
(flow restrictor) |
|
