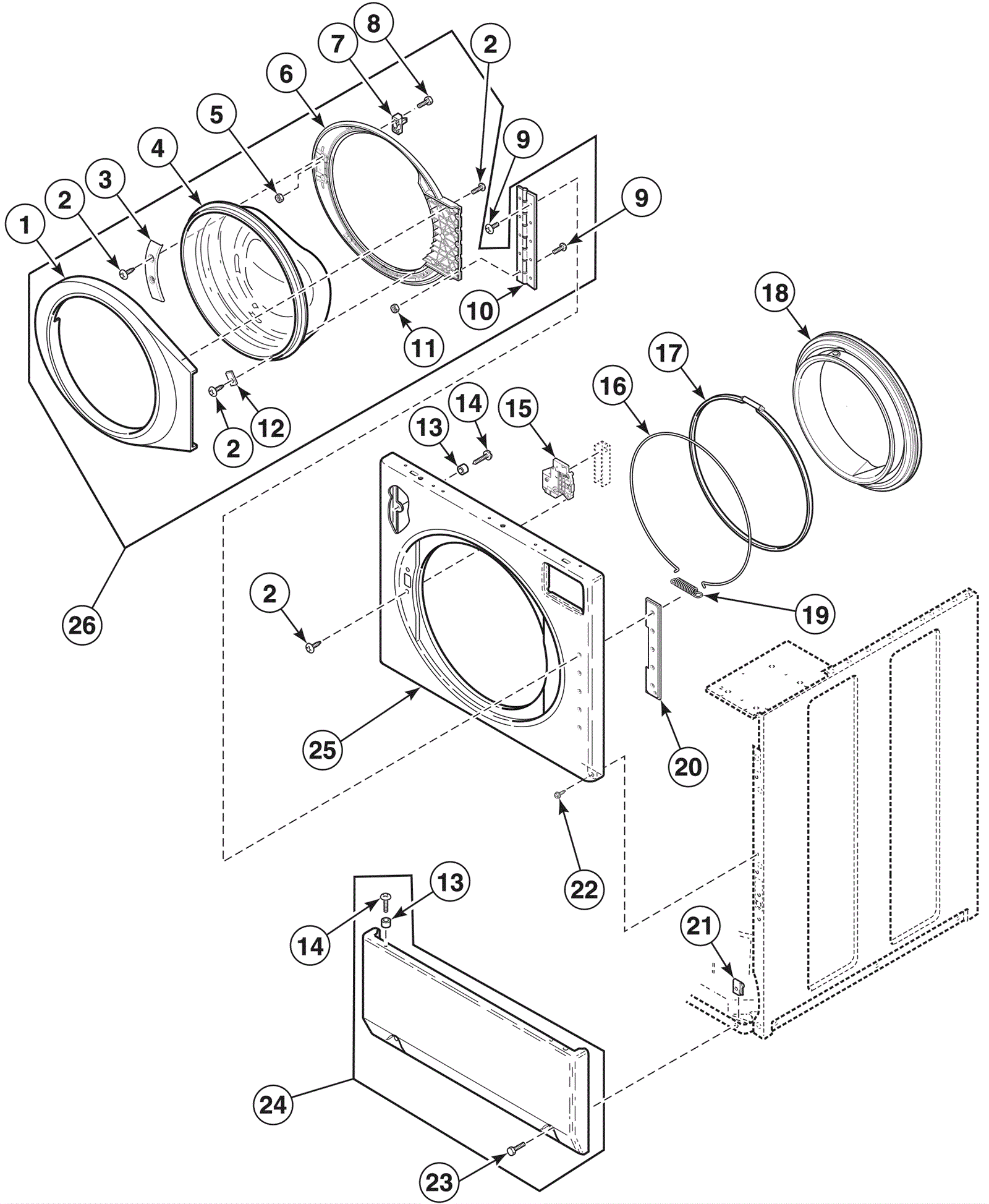

UFNBGBSP115TW81 Door Assembly

#PartDescriptionPriceReqNotesAvailability
1a 992-0600 Outer door bezel (white) Call for price 1 usually ships 3-9 days
1b 992-0601 Outer door bezel (gray) Call for price 1 usually ships 3-9 days
1c 992-0602 Outer door bezel (black) Call for price 1 usually ships 3-9 days
1d 992-0603 Outer door bezel (bisque) Call for price 1 usually ships 3-9 days
2 992-0350 Screw Call for price 4 usually ships 3-9 days
3 992-0604 Door glass mounting plate Call for price 1 usually ships 3-9 days
4 267-1019 Glass door $79.23 1 usually ships 3-9 days
5 992-0367 Nut Call for price 1 usually ships 3-9 days
6a 267-1020 Inner door bezel kit (white) $39.51 1 usually ships 3-9 days
6b 992-0605 Inner door bezel kit (gray) Call for price 1 usually ships 3-9 days
6c 267-1002 BEZEL,INNER DOOR(WHITE)42811 PKG $39.86 1 (glass filled polypropylene upgrade) ships same day
7 267-1004 ASSY DOOR CATCH $5.54 1 usually ships 3-9 days
8 992-0369 Screw Call for price 1 usually ships 3-9 days
9 992-0370 Screw Call for price 2 usually ships 3-9 days
10 992-0371 Door hinge Call for price 1 usually ships 3-9 days
11 992-0372 Nut Call for price 1 usually ships 3-9 days
12 992-0373 Glass mounting clip Call for price 1 usually ships 3-9 days
13 992-0351 Panel locator Call for price 2 usually ships 3-9 days
14a 992-0317 Screw Call for price 2 (use on painted panels) usually ships 3-9 days
14b 992-0352 Screw Call for price 2 (use with stainless steel panels) usually ships 3-9 days
15 267-1005 LOCK,DOOR $93.71 1 usually ships 3-9 days
16 992-0606 Wire clamp ring Call for price 1 usually ships 3-9 days
17 992-0354 Hose clamp Call for price 1 usually ships 3-9 days
18a 267-1022 Door bolt seal $195.99 1 usually ships 17-33 days
18b 992-0355 Door seal (gray) $229.65 1 usually ships 3-9 days
19 992-0607 Extension spring Call for price 1 usually ships 3-9 days
20 992-0356 Hinge plate $34.94 1 usually ships 3-9 days
21 992-0338 Nut Call for price 1 usually ships 3-9 days
22 992-0319 Screw Call for price 1 usually ships 3-9 days
23 992-0360 Screw Call for price 1 usually ships 3-9 days
24a 992-0362 Access panel (white) Call for price 1 (includes 13-14, 23) usually ships 3-9 days
24b 992-0608 Access panel assembly (bisque) Call for price 1 (includes 13-14, 23) usually ships 3-9 days
24c 992-0361 Access panel (stainless steel) Call for price 1 (includes 13-14, 23) usually ships 3-9 days
24d 992-0363 Access panel (dark gray) Call for price 1 usually ships 3-9 days
25a 992-0358 Front panel (white) Call for price 1 usually ships 3-9 days
25b 992-0609 Front panel (bisque) Call for price 1 usually ships 3-9 days
25c 992-0359 Front panel (dark gray) Call for price 1 usually ships 3-9 days
25d 992-0357 Front panel (stainless steel) Call for price 1 usually ships 3-9 days
26a 267-1018 Standard door assembly (white) $562.43 1 (includes 1-12) ships same day
26b 992-0610 Door assembly (bisque) Call for price 1 (includes 1-12) usually ships 3-9 days
26c 992-0375 Door assembly (gray) Call for price 1 (includes 1-12) usually ships 3-9 days
26d 992-0611 Door assembly (black) Call for price 1 (includes 1-12) usually ships 3-9 days
