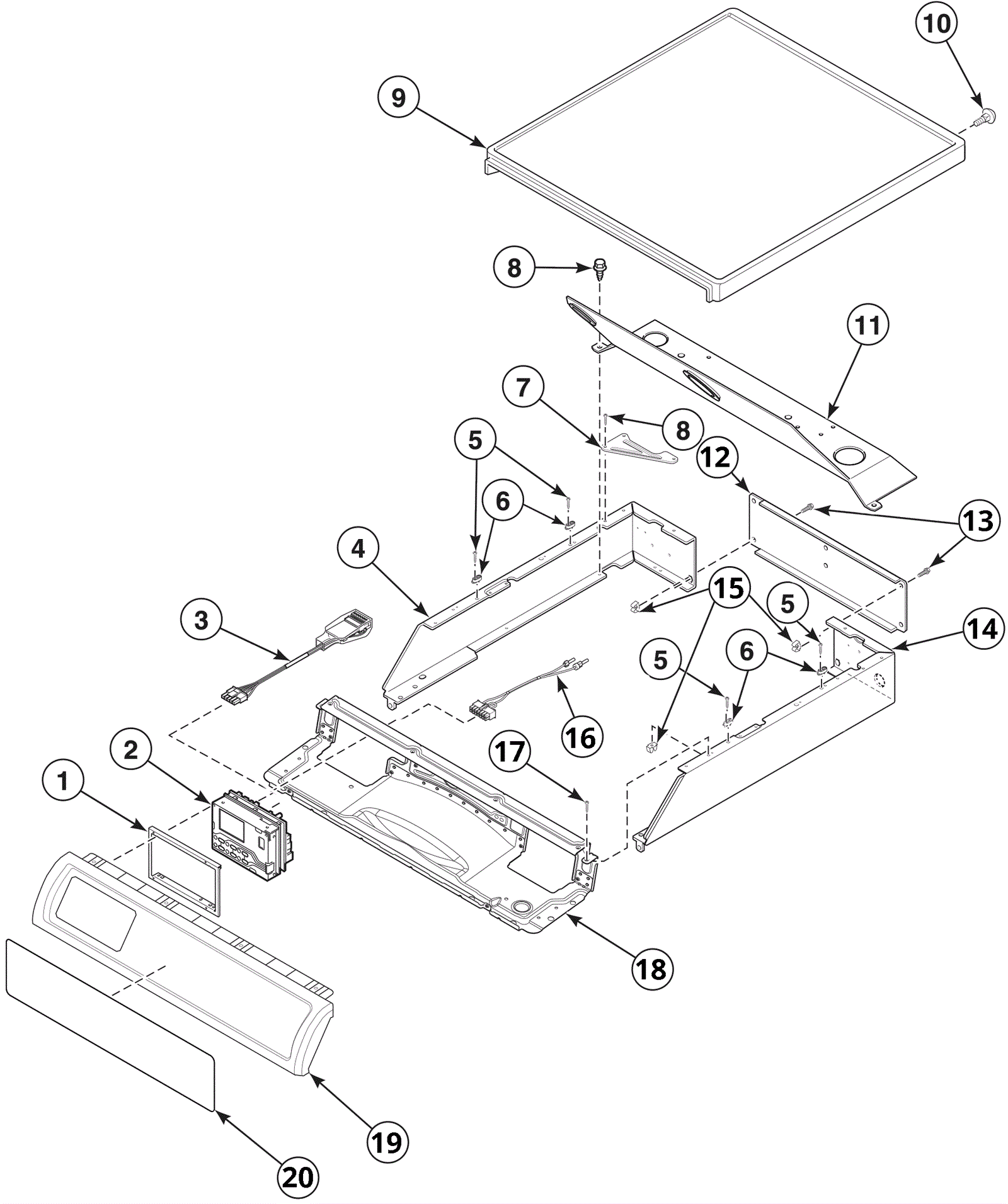

UFNBGBSP115TW81 Front Control Cabinet Assembly

#PartDescriptionPriceReqNotesAvailability
1 992-0594 Control bracket Call for price 1 usually ships 3-9 days
2 267-1000 ASSY,ACA H7S FLW GREEN CNTRL PKG $239.03 1 usually ships 3-9 days
3 992-0545 Machine ID control assembly Call for price 1 (model or serial number is required when ordering) usually ships 3-9 days
4 992-0327 Left hand control wrapper Call for price 1 usually ships 3-9 days
5 992-0317 Screw Call for price 4 usually ships 3-9 days
6 992-0318 Top panel guide Call for price 4 usually ships 3-9 days
7 992-0330 Rear wrapper brace Call for price 2 usually ships 3-9 days
8 992-0311 Screw Call for price 6 usually ships 3-9 days
9a 992-0332 Top panel stainless steel Call for price 1 usually ships 3-9 days
9b 992-0333 Top panel (white) Call for price 1 usually ships 3-9 days
10 992-0309 Bolt Call for price 1 usually ships 3-9 days
11 992-0310 Control shield Call for price 1 usually ships 3-9 days
12 992-0312 Rear access panel Call for price 1 usually ships 3-9 days
13 992-0311 Screw Call for price 2 usually ships 3-9 days
14a 992-0595 Right hand control wrapper (white) Call for price 1 usually ships 3-9 days
14b 992-0596 Right hand control wrapper (black) Call for price 1 usually ships 3-9 days
15 992-0316 Expansion clip Call for price 3 usually ships 3-9 days
16 992-0597 Wiring harness Call for price 1 usually ships 3-9 days
17 992-0598 Screw Call for price 1 usually ships 3-9 days
18 992-0320 Top panel brace Call for price 1 usually ships 3-9 days
19 992-0599 Control panel Call for price 1 usually ships 3-9 days
20 267-1001 OVERLAY,CONTROL MDC II-SINGLE CYC UNIMAC $23.11 1 usually ships 3-9 days
N/S 992-0486 Bumper pad Call for price 4 usually ships 3-9 days
