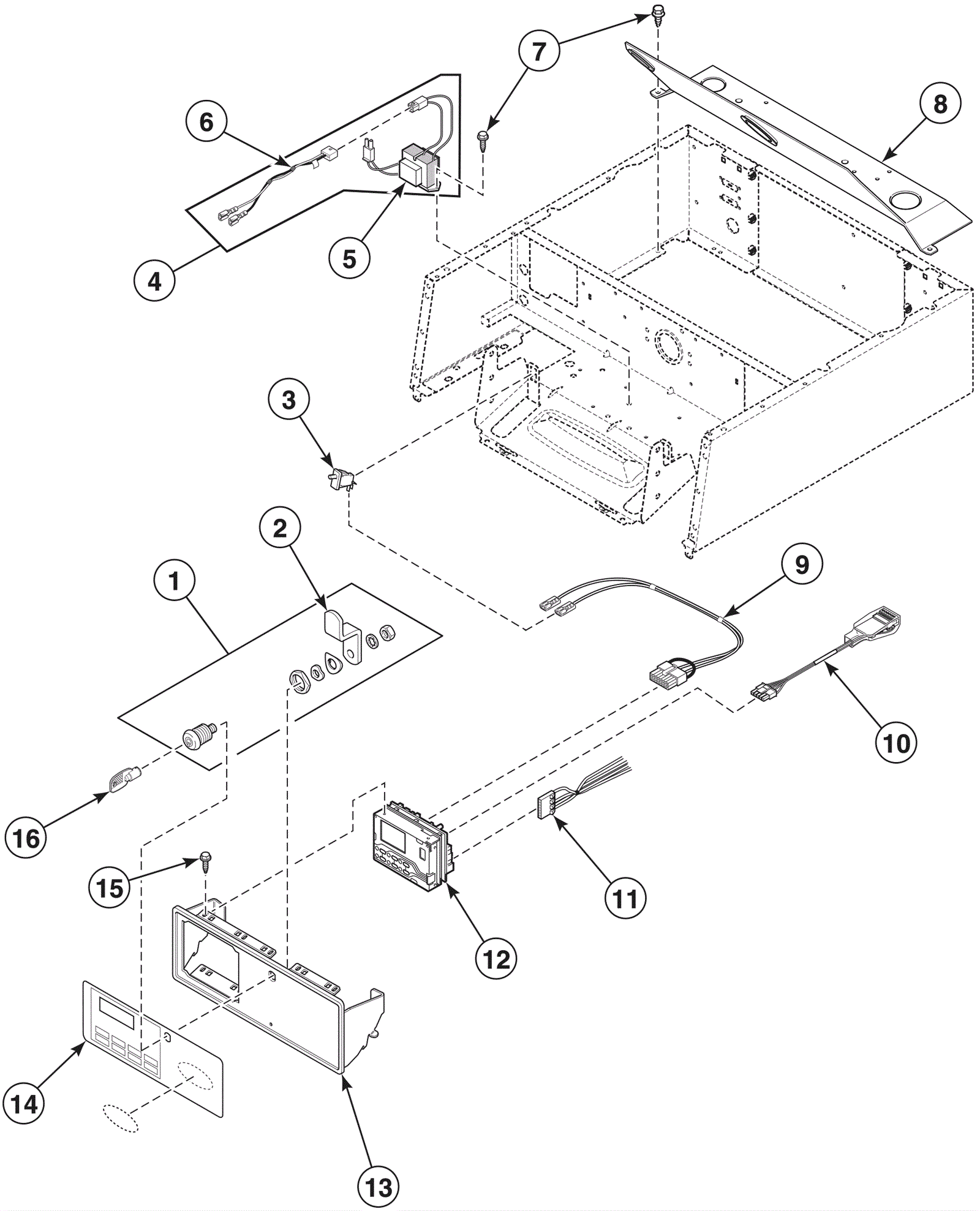

UFNBGBSP115TW81 Control Panel Assembly

#PartDescriptionPriceReqNotesAvailability
1 992-0538 Lock assembly Call for price 1 (includes 2) usually ships 3-9 days
2 992-0539 Lock cam Call for price 1 usually ships 3-9 days
3 992-0540 Switch Call for price 1 usually ships 3-9 days
4 992-0541 Transformer kit Call for price 1 (includes 5-6) usually ships 3-9 days
5 992-0542 120V transformer Call for price 1 usually ships 3-9 days
6 992-0543 Transformer harness Call for price 1 usually ships 3-9 days
7 992-0311 Screw Call for price 2 usually ships 3-9 days
8 992-0310 Control shield Call for price 1 usually ships 3-9 days
9 992-0544 Wiring harness assembly Call for price 1 usually ships 3-9 days
10 992-0545 Machine ID control assembly Call for price 1 (model or serial number is required when ordering) usually ships 3-9 days
11 992-0546 Central pay harness Call for price 1 usually ships 3-9 days
12 267-1000 ASSY,ACA H7S FLW GREEN CNTRL PKG $239.03 1 usually ships 3-9 days
13a 992-0547 Control panel (bisque) Call for price 1 usually ships 3-9 days
13b 992-0548 Control panel (white) Call for price 1 usually ships 3-9 days
13c 992-0549 Control panel (dark gray) Call for price 1 usually ships 3-9 days
13d 992-0550 Control panel (black) Call for price 1 usually ships 3-9 days
14 992-0551 Overlay Call for price 1 usually ships 3-9 days
15 992-0552 Screw Call for price 1 usually ships 3-9 days
16 992-0553 Key Call for price 1 usually ships 3-9 days
N/S 992-0554 Network retrofit kit Call for price 1 usually ships 3-9 days
N/S 992-0555 Network controller kit Call for price 1 usually ships 3-9 days
N/S 992-0556 Wirless network kit Call for price 1 usually ships 3-9 days
N/S 992-0557 Ethernet gateway kit Call for price 1 usually ships 3-9 days
N/S 992-0558 USB IR interface kit Call for price 1 usually ships 3-9 days
N/S 992-0559 USB gateway kit Call for price 1 usually ships 3-9 days
