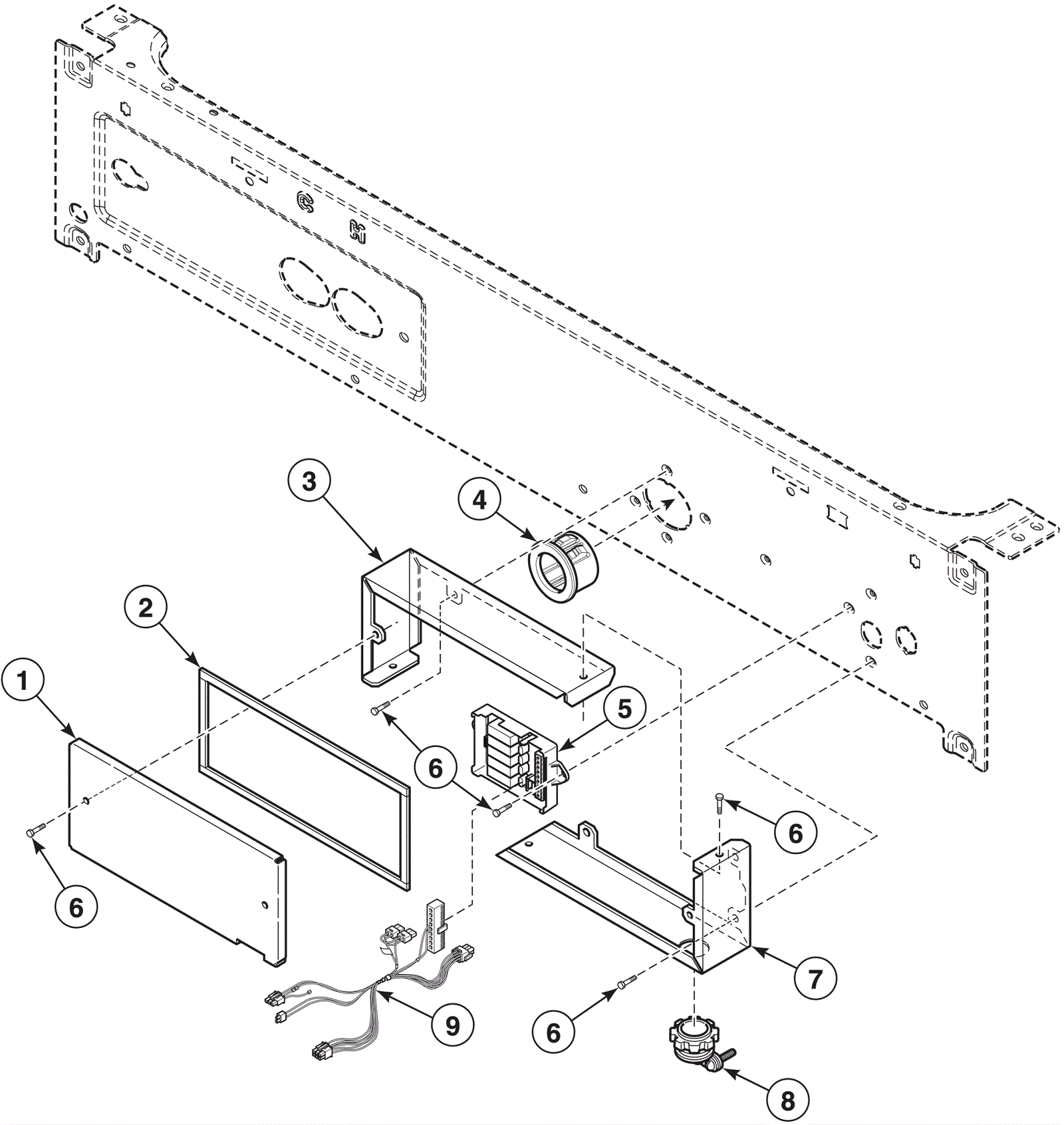

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
992-0511
|
Junction box cover |
1 |
|
|
2 |
992-0512
|
Junction box seal |
1 |
|
|
3 |
992-0513
|
Upper junction box |
1 |
|
|
4 |
992-0514
|
Snap bushing |
1 |
|
|
5 |
992-0515
|
Chemical injection control |
1 |
|
|
6 |
992-0319
|
Screw |
5 |
|
|
7 |
992-0516
|
Lower junction box |
1 |
|
|
8 |
992-0517
|
Connector |
1 |
|
|
9a |
992-0518
|
Supply injection wire harness |
1 |
(before SN 2013000000) |
|
9b |
992-0519
|
Supply injection wire harness |
1 |
(after SN 2101000000) |
|
