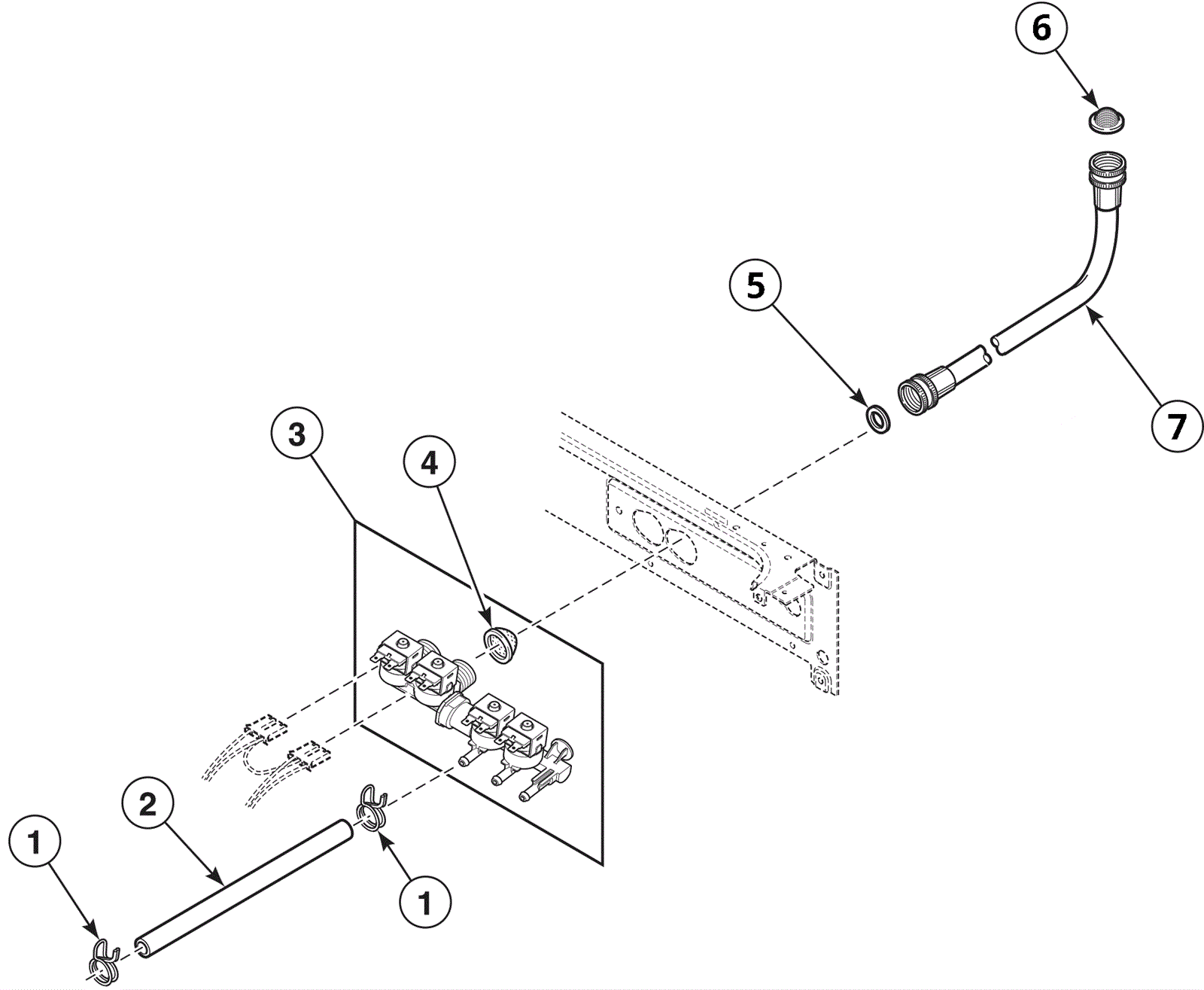

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
992-0378
|
Hose clamp |
2 |
|
|
2 |
992-0379
|
Dispenser inlet hose |
1 |
(before SN 1810000002) |
|
3 |
992-0389
|
Mixing valve |
1 |
(includes 4) |
|
4 |
992-0390
|
Mixing valve screen |
1 |
|
|
5 |
267-1016
|
WASHER,FLAT NON-FERROUS EPDM .593x1.031 |
1 |
|
|
6a |
267-1025
|
WASHER,STRAINER,3/4 inch PIPE |
1 |
(filter screen) |
|
6b |
992-0391
|
Washer |
1 |
(flow restrictor) |
|
7a |
267-1014
|
HOSE,INLET WATER-IEC(3/8 x 48)GHT/GHT (Blue = Cold) |
1 |
(marked for cold water, 4 feet) (2 GHT thread hose couplings) |
|
7b |
267-1013
|
HOSE,INLET WATER-IEC(3/8 x 48)GHT/GHT (Red = Hot) |
1 |
(marked for hot water, 4 feet) (2 GHT thread hose couplings) |
|
7c |
992-0392
|
Fill hose |
1 |
(marked for cold water, 4 feet) (1 GHT thread and 1 BSPP thread hose coupling) |
|
7d |
992-0393
|
Fill hose |
1 |
(marked for hot water, 4 feet) (1 GHT thread and 1 BSPP thread hose coupling) |
|
7e |
992-0394
|
Fill hose |
1 |
(marked for cold water, 4 feet) (2 BSPP thread hose couplings) |
|
7f |
992-0395
|
Fill hose |
1 |
(marked for hot water, 4 feet) (2 BSPP thread hose couplings) |
|
