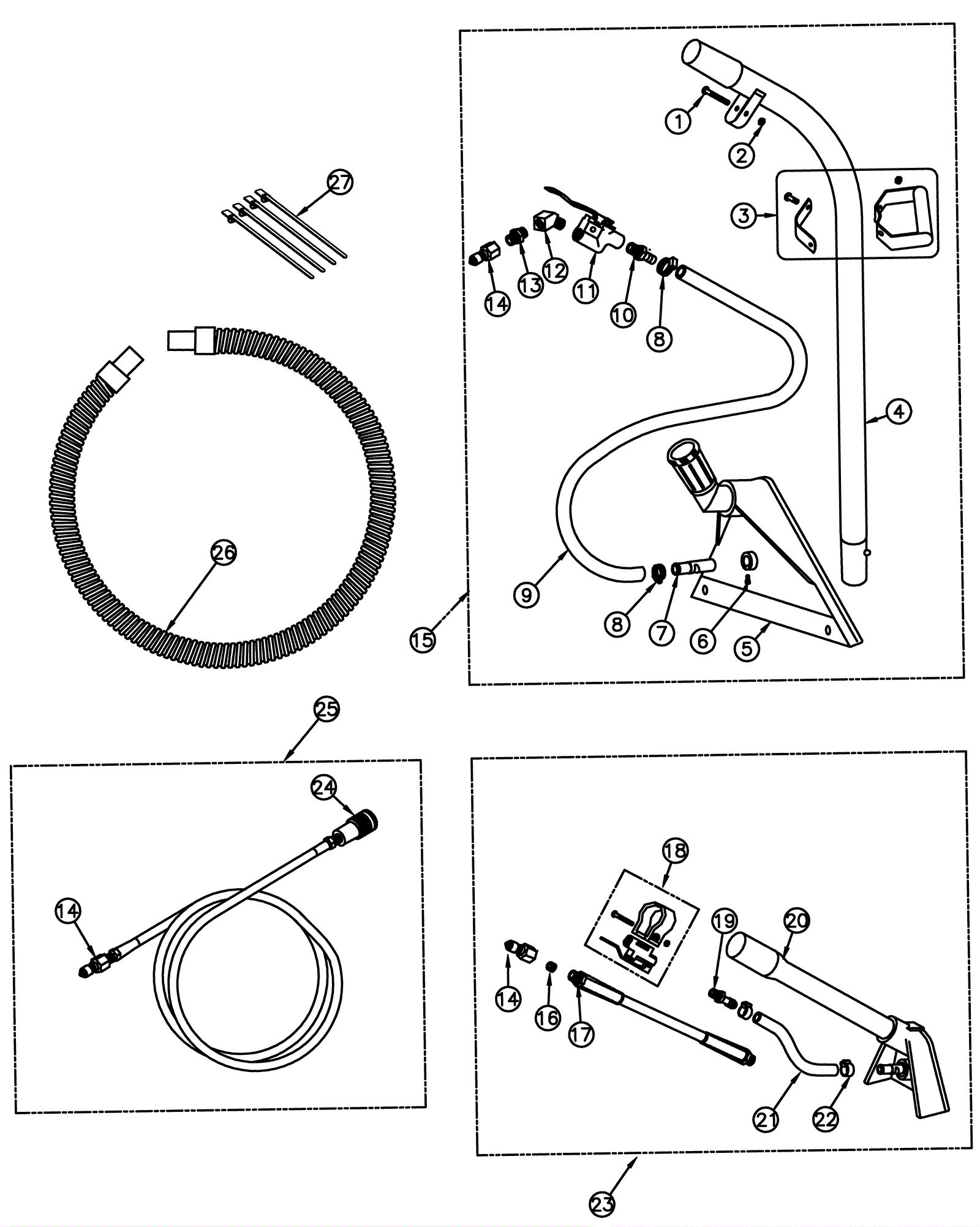

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
999-9067
|
Screw 10-32 x 1 pan head phillips zinc plated |
|
|
|
2 |
999-1353
|
Nut 10-32 hex nylon lock insert stainless steel |
|
|
|
3 |
992-1342
|
1 1/4 inch handle assembly |
|
|
|
4 |
992-1343
|
1 1/2 inch straight wand |
|
|
|
5 |
992-1344
|
Steam head assembly with cuff |
|
|
|
6 |
999-0941
|
Screw 4-40 x 1/4 pan head phillips stainless steel |
|
|
|
7 |
992-1345
|
Nozzle |
|
|
|
8 |
992-1325
|
5/16 inch worm clamp |
|
|
|
9 |
992-1346
|
5/16 inch vinyl braided hose |
|
|
|
10 |
992-1347
|
Nylon barbed fitting 3/8 x 1/4 inch |
|
|
|
11 |
992-0132
|
Valve assembly |
|
|
|
12 |
992-1348
|
45 degree elbow fitting 1/4 inch |
|
|
|
13 |
992-1349
|
1/4 inch hex nipple |
|
|
|
14 |
992-1365
|
Male disconnect |
|
|
|
15 |
992-1351
|
1 1/2 inch floor wand assembly |
|
(includes 1-14) |
|
16 |
992-1352
|
Screw 3/8-24 x 3/8 socket set |
|
|
|
17 |
992-1353
|
Hose assembly |
|
|
|
18 |
992-0133
|
Valve assembly w/ hanger & hardware |
|
|
|
19 |
992-1354
|
Hose barb 3/16 x 1/8 mpt |
|
|
|
20 |
992-1355
|
Steam head assembly |
|
|
|
21 |
992-1356
|
7/16 inch single ear hose clamp |
|
|
|
22 |
992-1357
|
3/16 inch braided vinyl hose |
|
|
|
23 |
992-1358
|
Upholstery tool |
|
(includes 14, and 16 - 22) |
|
24 |
992-1359
|
1/4 npt female disconnect |
|
|
|
25 |
992-1360
|
15 foot solution hose (blue) |
|
(includes 14 and 24) |
|
26 |
992-1361
|
15 foot vacuum hose |
|
|
|
27 |
992-1362
|
Strap 1 x 12 1/2 inch (black) |
|
|
|
