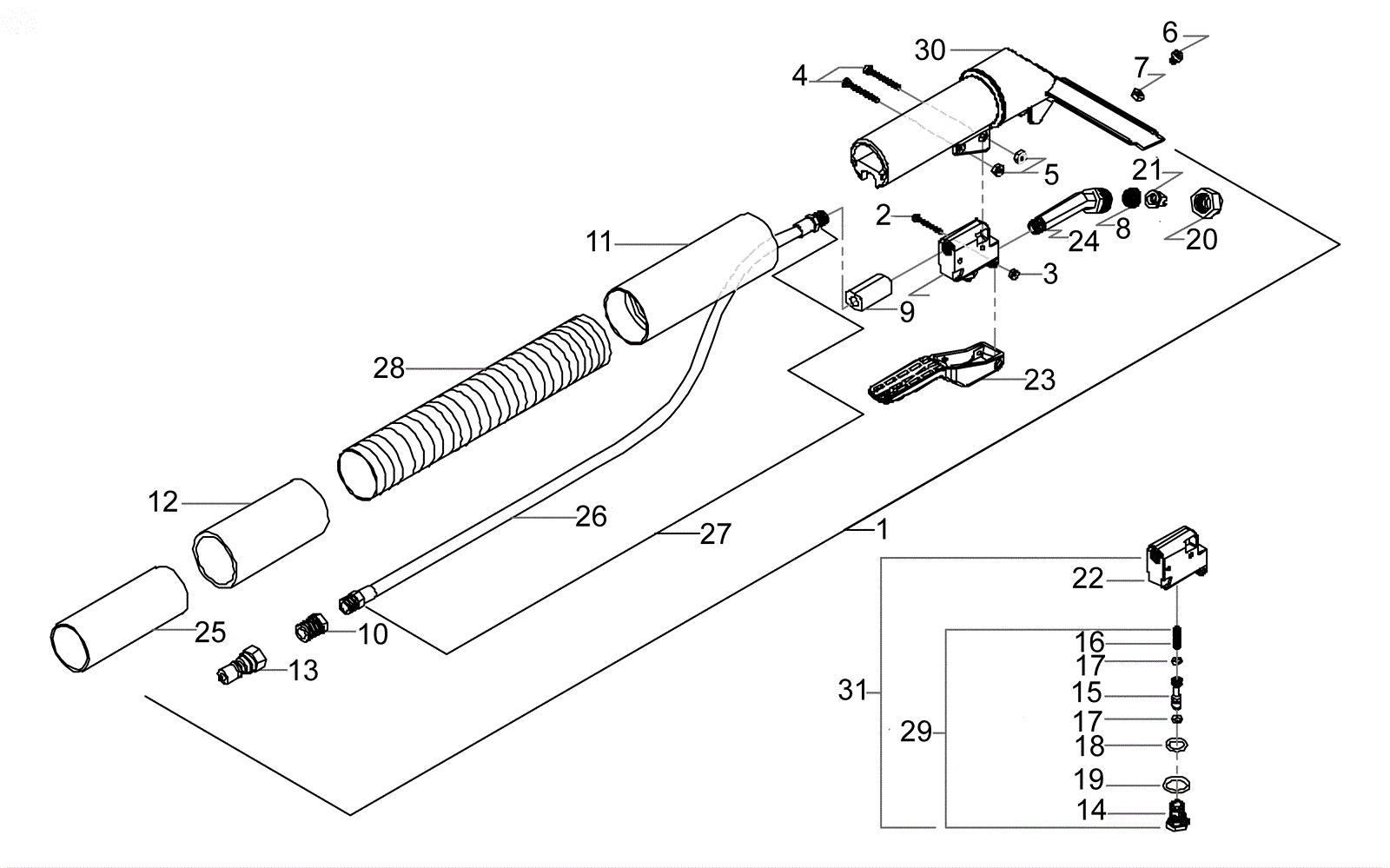

Hand tool Assembly

#PartDescription ReqNotesAvailability
1 262-0016 Hand tool assembly 1 (includes 2-13, 20, 21, 23-28, 30)
2 999-0339 Screw 4-40 x 7/8 round head slotted zinc plated 1
3 262-0428 Nut 4-40 hex head zinc nylok 1
4 999-0511 Screw 6-32 x 1 pan head phillips zinc plated 2
5 999-0227 Nut 6-32 hex nylon insert lock jam zinc plated 2
6 262-0309 Screw 1
7 999-0357 Nut 8-32 nylon insert lock stainless steel 1
8 262-0254 4 inch filter 1
9 262-0255 Grommet 1
10 262-0063 Hex fitting 1
11 262-0429 Hose cuff 1
12 262-0052 Hose cuff 1
13 262-0013 Quick connect 1
14 262-0256 Valve stem guide 1
15 262-0257 Valve stem 1
16 262-0258 4 inch valve spring 1
17 262-0259 O-ring 2
18 262-0260 O-ring 1
19 262-0261 O-ring 1
20 262-0262 Cap nut 1
21 262-0263 Jet 1
22 262-0264 4 inch valve 1
23 262-0265 4 inch trigger 1
24 262-0266 4 inch elbow 1
25 262-0267 Coupler 1
26 262-0430 16 1/2 inch hose (black) 1
27 262-0268 Hose 1 (includes 26)
28 262-0431 12 inch hose 1
29 262-0003 4 inch tool stem assembly 1 (includes 14-19)
30 262-0048 4 inch detail tool handle assembly 1
31 262-0269 Valve 1 (includes 14-19, 22, 29)
