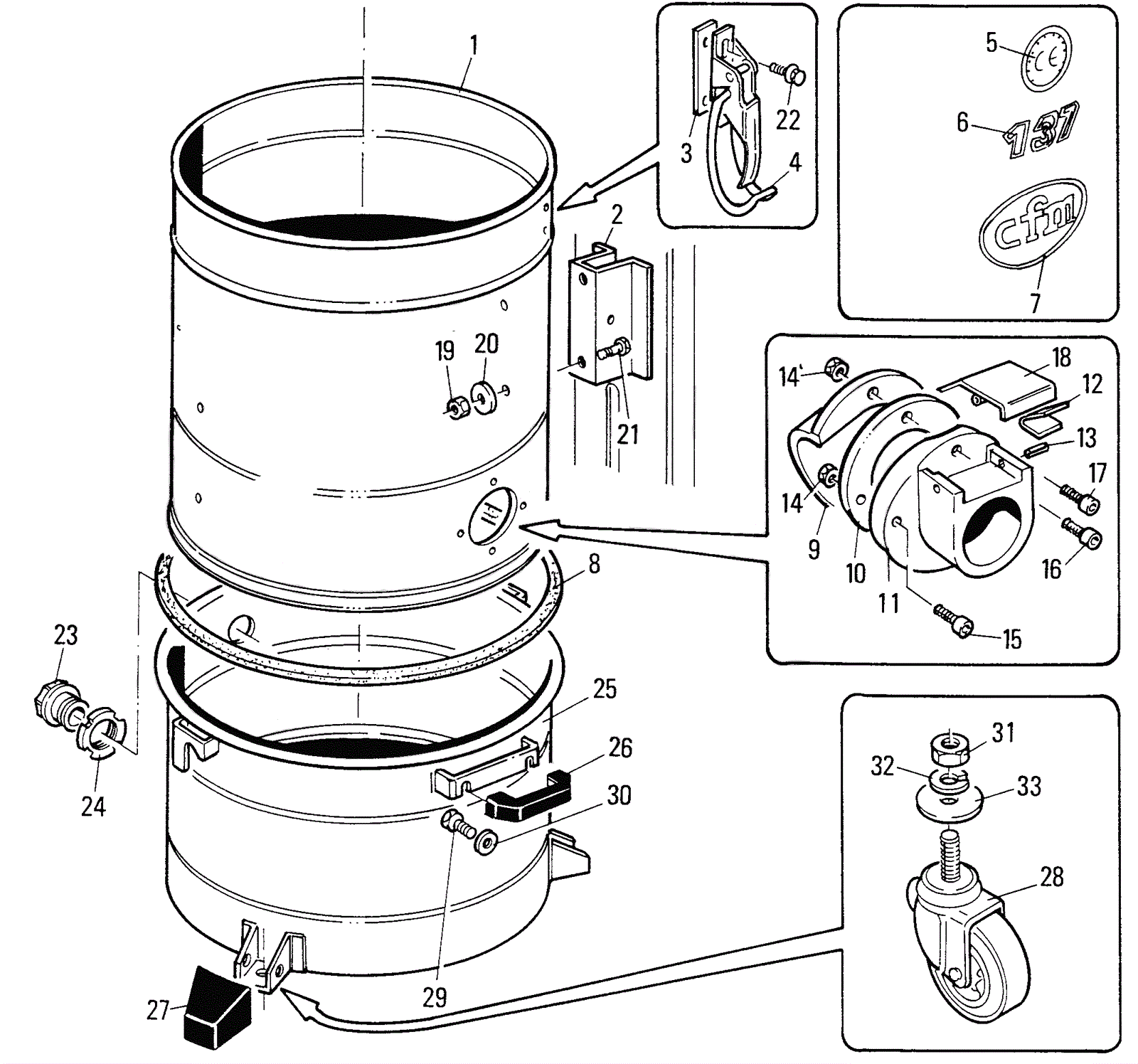

CFM 137 Container Unit Assembly

#PartDescriptionPriceReqNotesAvailability
1 572-4090 Container Call for price 1 usually ships 13-18 days
2 572-4091 Bracket Call for price 2 usually ships 13-18 days
3 572-4092 Plaque $33.07 2 usually ships 13-18 days
4 370-5937 LATCH CAV 26 $56.99 2 usually ships 13-18 days
5 572-4094 Decal Call for price 1 usually ships 13-18 days
6 572-4095 Decal Call for price 1 usually ships 13-18 days
7 572-4096 Decal Call for price 1 usually ships 13-18 days
8 370-5388 SEAL INLET CAV 26 (OBSOLETE) $53.67 1 usually ships 13-18 days
9 370-5207 DEFLECTOR INLET CAV-26 (OBSOLETE) $59.95 1 usually ships 13-18 days
10 370-5387 SEAL CONTAINER CAV 26 (OBSOLETE) $17.05 1 usually ships 13-18 days
11 572-4100 Filler Call for price 1 usually ships 13-18 days
12 572-4101 Spring $2.73 2 usually ships 13-18 days
13 572-4102 Pin Call for price 2 usually ships 13-18 days
14 572-4129 Top container assembly Call for price 4 (nut ) (only available in kit 1) usually ships 13-18 days
15 572-4129 Top container assembly Call for price 1 (screw) (only available in kit 1) usually ships 13-18 days
16 572-4129 Top container assembly Call for price 2 (screw) (only available in kit 1) usually ships 13-18 days
17 572-4129 Top container assembly Call for price 1 (screw) (only available in kit 1) usually ships 13-18 days
18 572-4107 Push button Call for price 1 usually ships 13-18 days
19 572-4129 Top container assembly Call for price 4 (nut ) (only available in kit 1) usually ships 13-18 days
20 572-4129 Top container assembly Call for price 4 (washer) (only available in kit 1) usually ships 13-18 days
21 572-4129 Top container assembly Call for price 4 (push button) (only available in kit 1) usually ships 13-18 days
22 572-4129 Top container assembly Call for price 4 (screw) (only available in kit 1) usually ships 13-18 days
23 572-4112 Indicator $37.64 1 usually ships 13-18 days
24 572-4113 Ring nut $37.11 1 usually ships 13-18 days
25a 572-4114 Container Call for price 1 (60) usually ships 13-18 days
25b 572-4115 Container Call for price 1 (100) usually ships 13-18 days
26 572-4116 Handle $37.64 2 usually ships 13-18 days
27 370-5389 BUMPER WHEEL CAV 26 (OBSOLETE) $17.05 4 usually ships 13-18 days
28 370-5959 CASTER CAV 26 (OBSOLETE) $34.43 4 usually ships 13-18 days
29a 572-4131 Bottom container assembly Call for price 4 (screw) (only available in kit 3) usually ships 13-18 days
29b 572-4132 Bottom container assembly Call for price 4 (screw) (only available in kit 4) usually ships 13-18 days
30a 572-4131 Bottom container assembly Call for price 4 (washer) (only available in kit 3) usually ships 13-18 days
30b 572-4132 Bottom container assembly Call for price 4 (washer) (only available in kit 4) usually ships 13-18 days
31a 572-4131 Bottom container assembly Call for price 4 (nut) (only available in kit 3) usually ships 13-18 days
31b 572-4132 Bottom container assembly Call for price 4 (nut) (only available in kit 4) usually ships 13-18 days
32a 572-4131 Bottom container assembly Call for price 4 (washer) (only available in kit 3) usually ships 13-18 days
32b 572-4132 Bottom container assembly Call for price 4 (washer) (only available in kit 4) usually ships 13-18 days
33a 572-4131 Bottom container assembly Call for price 4 (washer) (only available in kit 3) usually ships 13-18 days
33b 572-4132 Bottom container assembly Call for price 4 (washer) (only available in kit 4) usually ships 13-18 days
Kit 1 572-4129 Top container assembly Call for price 1 (includes parts 1-22) usually ships 13-18 days
Kit 2 572-4130 Filler assembly Call for price 1 (includes parts 11-13, 18) usually ships 13-18 days
Kit 3 572-4131 Bottom container assembly Call for price 1 (includes parts 23-33, 60) usually ships 13-18 days
Kit 4 572-4132 Bottom container assembly Call for price 1 (includes parts 23-33, 100) usually ships 13-18 days
