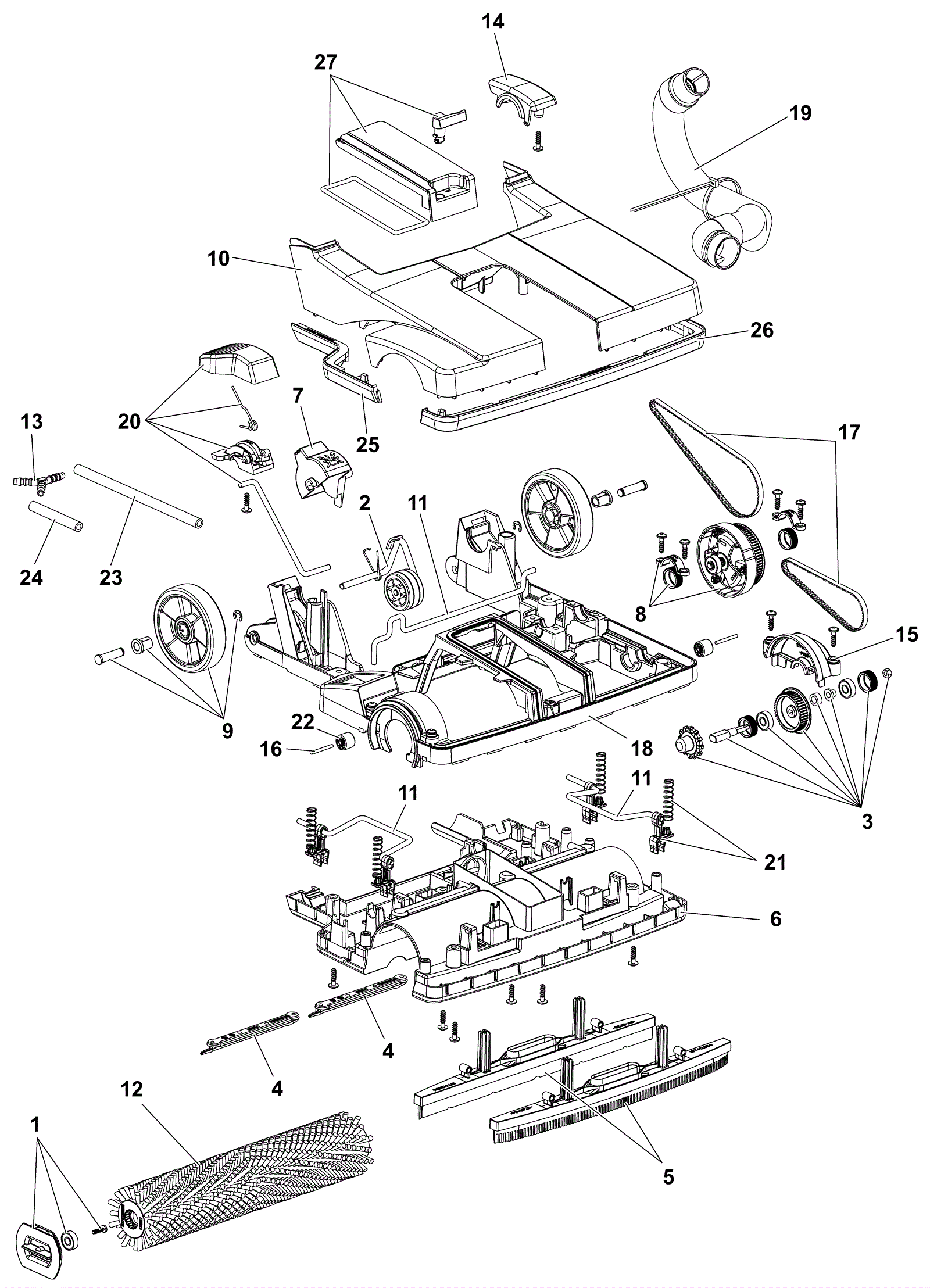

SC100 Nozzle Head Assembly

#PartDescriptionPriceReqNotesAvailability
1 472-0291 Brush key lock (jet black) $10.98 1 usually ships 16-41 days
2 472-0270 AXLE HIGHT ADJUSTMENT ROLLER $14.51 1 usually ships 16-41 days
3 472-0286 BRUSH MOUNTING $20.86 1 ships same day
4 472-0285 DOSING BRIDGE $11.26 2 usually ships 16-41 days
5a 472-0250 SQUEEGEE 12.5IN 13 KIT $27.18 1 ships same day
5b 472-0251 SQUEEGEE CARPET 12.5IN 13 KIT $20.86 1 usually ships 16-41 days
6 N/A Not available Call for price 1 (nozzle head chassis this is included in kit 1) usually ships 3-26 days
7 472-0308 SQUEEGEE PEDAL JET BLACK $11.26 1 usually ships 16-41 days
8 472-0282 CLUTCH OVERLOAD CPL $44.79 1 ships same day
9 472-0301 REAR WHEEL -90 WITH AXLE CPL. $16.07 1 usually ships 16-41 days
10 N/A Not available Call for price 1 (top cover chassis ral 7001 this is included in kit 2) usually ships 3-26 days
11 472-0306 SQUEEGEE LIFTER $22.41 1 usually ships 16-41 days
12a 472-0244 12.5 inch brush (white) $82.96 1 ships same day
12b 472-0245 BRUSH 12.5IN HARD BLACK $101.16 1 ships same day
12c 472-0246 BRUSH 12.5IN MICROFIBER $93.14 1 usually ships 16-41 days
12d 472-0247 BRUSH 12.5IN CARPET $70.72 1 usually ships 16-41 days
13 N/A Not available Call for price 1 (y-connertor for 06/010 tube this is included in kit 2) usually ships 3-26 days
14 472-0323 BEARING COVER LEFT $9.71 1 usually ships 16-41 days
15 472-0272 BRUSH BEARING COVER $9.71 1 usually ships 16-41 days
16 N/A Not available Call for price 2 (axle for support roller this is included in kit 1) usually ships 3-26 days
17 472-0273 BANDO BELT-BRUSH $22.41 1 usually ships 16-41 days
18 N/A Not available Call for price 1 (frame for chassis this is included in kit 1) usually ships 3-26 days
19 472-0274 HOSE AIRCHANNEL $14.51 1 usually ships 16-41 days
20 472-0298 PARKING PEDAL ORANGE $16.07 1 usually ships 16-41 days
21 472-0307 SQUEEGEE LIFTER-BODY $9.71 4 usually ships 16-41 days
22 N/A Not available Call for price 2 (support roller this is included in kit 1) usually ships 3-26 days
25 N/A Not available Call for price 1 (right bumper this is included in kit 1 ) usually ships 3-26 days
27 472-0283 COVER FOR SQUEEGEE CHANNEL BLK $14.51 1 usually ships 16-41 days
Kit 1 472-0296 NOZZLE HEAD $148.78 1 (kit 1 includes item 6, 16,18,22,25,and 26) usually ships 16-41 days
Kit 2 472-0310 TOP COVER CHASSIS GREY $23.95 1 (kit 2 includes item 10, 13, 23, and 24) usually ships 16-41 days
