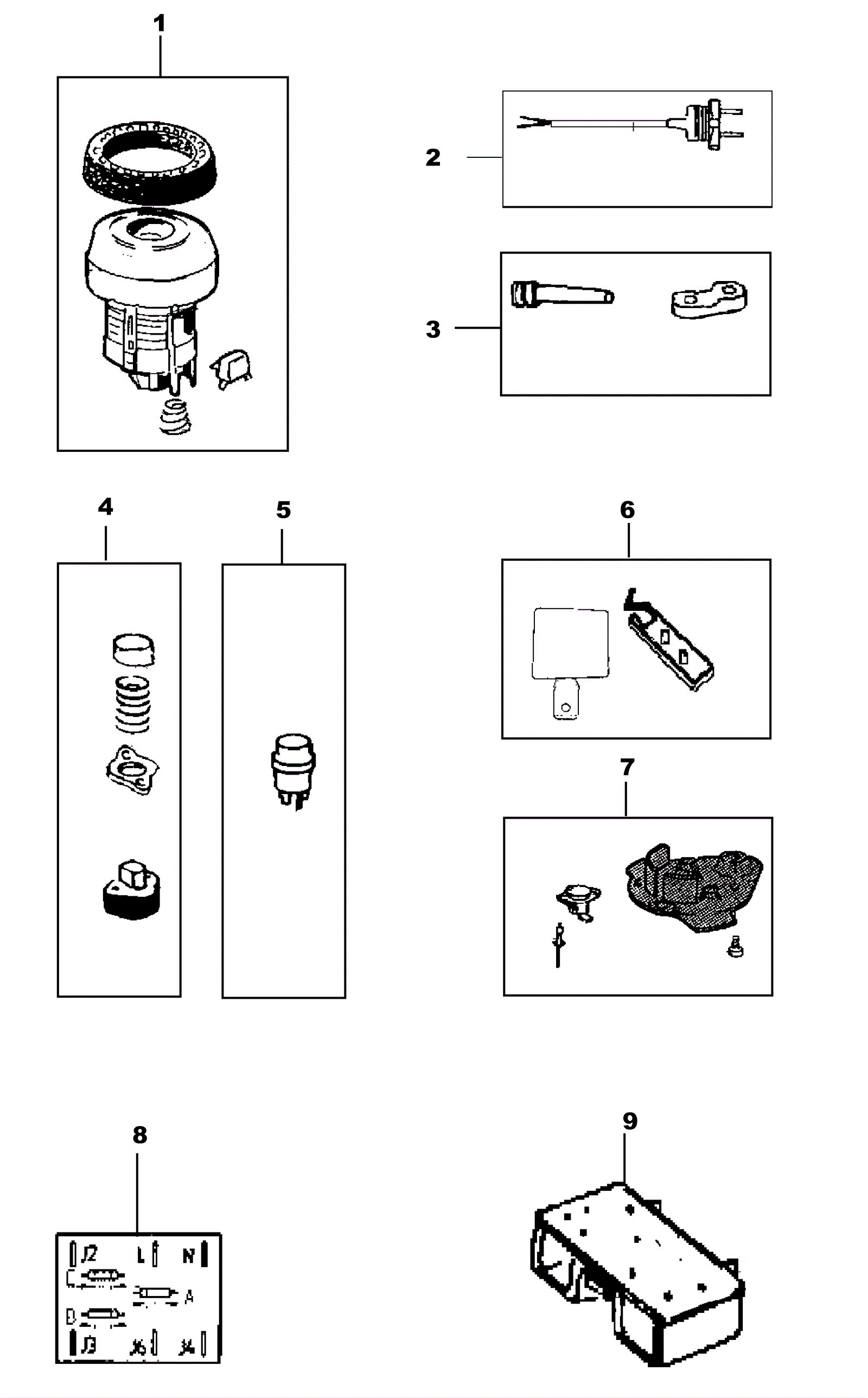

| # | Part | Description |
Req | Notes | Availability |
|---|
1a |
472-0411
|
FAN UNIT 230V/50HZ |
1 |
|
|
1b |
272-3427
|
110-120V fan unit |
1 |
|
|
1c |
572-4013
|
240V fan (OBSOLETE) |
1 |
|
|
1d |
472-0412
|
FAN UNIT--100 VOLT |
1 |
|
|
1e |
572-4014
|
127V fan |
1 |
|
|
2b |
572-4015
|
10M cord |
1 |
|
|
2c |
572-4016
|
15M cord |
1 |
|
|
2d |
572-4017
|
15M cord |
1 |
|
|
2e |
572-4018
|
10M cord |
1 |
|
|
2f |
181-1399
|
18/3 power cord 2 wire 50 foot |
1 |
|
|
2g |
181-0497
|
Grounded 10mm cord |
1 |
|
|
2h |
572-4019
|
15M plug |
1 |
|
|
2i |
572-4020
|
14M cord |
1 |
|
|
3a |
272-3430
|
Sleeve with anti-strain clip |
1 |
|
|
3b |
181-0527
|
Protection sleeve kit (OBSOLETE) |
1 |
|
|
4 |
181-1660
|
Switch kit (OBSOLETE) |
1 |
|
|
5 |
272-3431
|
Two speed switch |
1 |
|
|
6a |
472-0000
|
OUTLET KIT GD930/UZ930S 230V |
1 |
|
|
6b |
181-1654
|
Electrical outlet |
1 |
|
|
7a |
N/A
|
Not available |
1 |
|
|
7b |
272-3432
|
Motor plate with thermo protector |
1 |
|
|
8 |
181-1657
|
Anti-static board |
1 |
|
|
9a |
572-4021
|
Two speed circuit board |
1 |
|
|
9b |
472-0398
|
2S CIRCUIT BOARD 110V-120V KIT |
1 |
|
|
