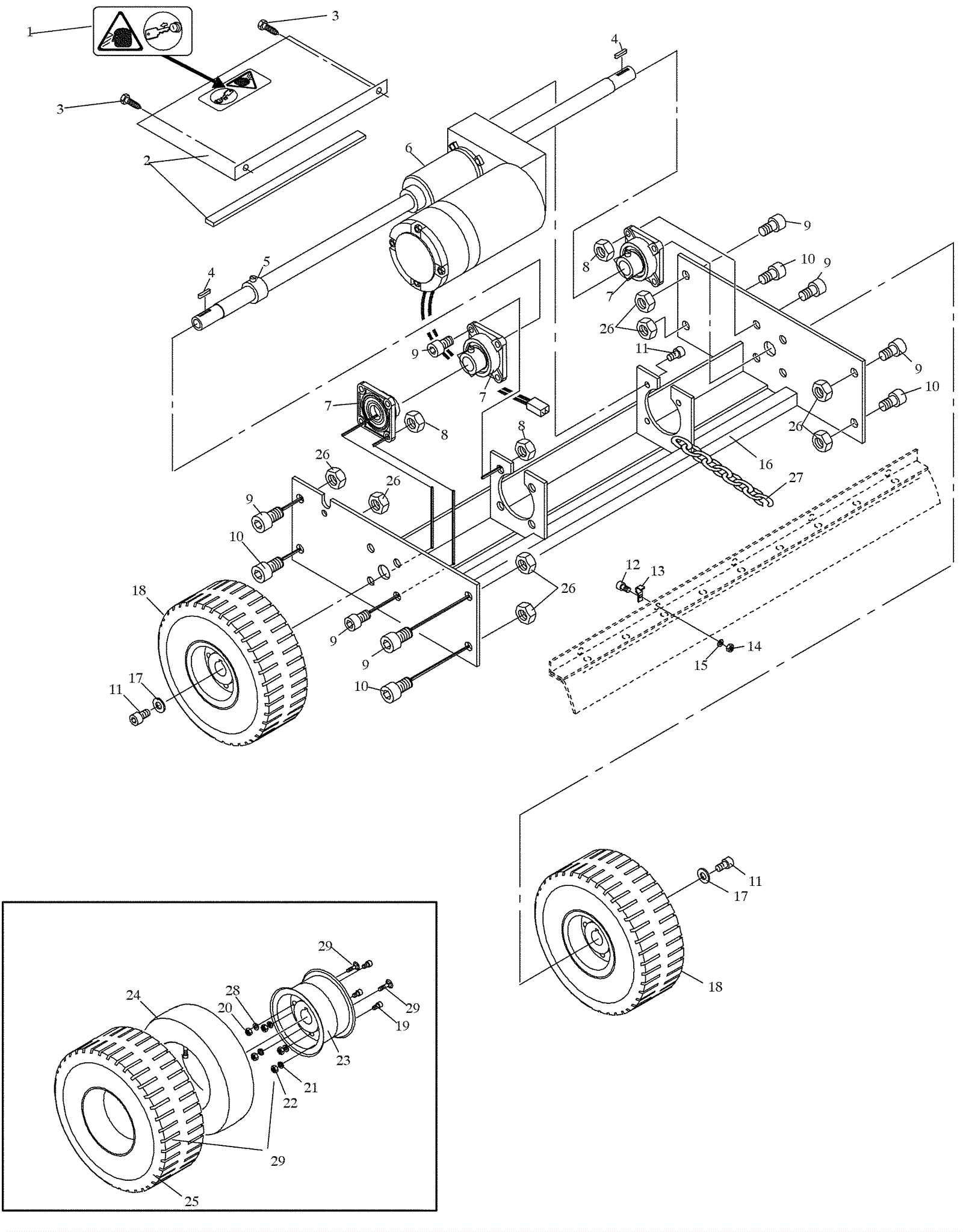

S12 Rear Drive Wheel Assembly

#PartDescriptionPriceReqNotesAvailability
1 675-0883 LABEL, HZRD, HPPR LIFT, CE [6200] (Tennant Industrial) $208.54 1 usually ships 10-16 days
2 375-9889 Motor cover Call for price 1 usually ships 10-16 days
3 375-9890 Screw Call for price 2 usually ships 10-16 days
4 475-7442 VR, KEY, 6MM X 6MM X 25MM (Tennant Industrial) $121.41 2 usually ships 10-16 days
5 375-9865 Adjustable sleeve Call for price 1 usually ships 10-16 days
6a 675-8307 VR, MOTOR, 24VDC (Tennant Industrial) $4,462.24 1 (includes 6b) usually ships 10-16 days
6b 475-2264 VR, BRUSH KIT, MOTOR, DRIVE [SET OF 4] $169.51 1 usually ships 10-16 days
7 575-3903 VR, BEARING, BALL (Tennant Industrial) $152.97 3 usually ships 10-16 days
8 999-0503 Nut M12-1.75 hex stainless steel $1.91 12 ships same day
9 375-9863 Screw M12 X 30mm Call for price 16 usually ships 10-16 days
10 999-1223 Screw M12-1.75 x 25mm hex head stainless steel $5.17 4 ships same day
11 999-0783 Screw M8-1.25 x 16mm hex head $0.99 6 ships same day
12 375-9893 Screw Call for price 5 usually ships 10-16 days
13 375-9894 Clamp Call for price 1 usually ships 10-16 days
14 375-9895 Nut Call for price 5 usually ships 10-16 days
15 375-9896 Washer Call for price 5 usually ships 10-16 days
16 375-9897 Rear axle support Call for price 1 usually ships 10-16 days
17 999-1261 Washer M6 flat stainless steel $0.99 2 ships same day
18 675-4946 VR, TIRE, FOAM FILLED 260X85 (Tennant Industrial) $566.13 2 (includes 19-24) usually ships 10-16 days
19 375-9829 Screw M8 x20mm (OBSOLETE) Call for price 4 usually ships 10-16 days
20 999-1424 Nut M8-1.25 hex stainless steel $1.65 4 ships same day
21 999-1261 Washer M6 flat stainless steel $0.99 4 ships same day
22 999-1308 Nut M6-1 hex stainless steel $0.99 4 ships same day
23 475-2322 VR, WHEEL, 03.0 $194.70 2 usually ships 10-16 days
24 575-4998 VR, TUBE, WHEEL, REAR (Tennant Industrial) $111.22 2 usually ships 10-16 days
25 675-2957 VR, TIRE ASSY, PNEU, NON-MARKING (Tennant Industrial) $345.69 2 (optional) usually ships 10-16 days
26 999-0503 Nut M12-1.75 hex stainless steel $1.91 8 ships same day
27 375-9901 Chain Call for price 1 usually ships 10-16 days
28 375-9902 Star washer Call for price 4 usually ships 10-16 days
29 375-9903 Screw Call for price 4 usually ships 10-16 days
