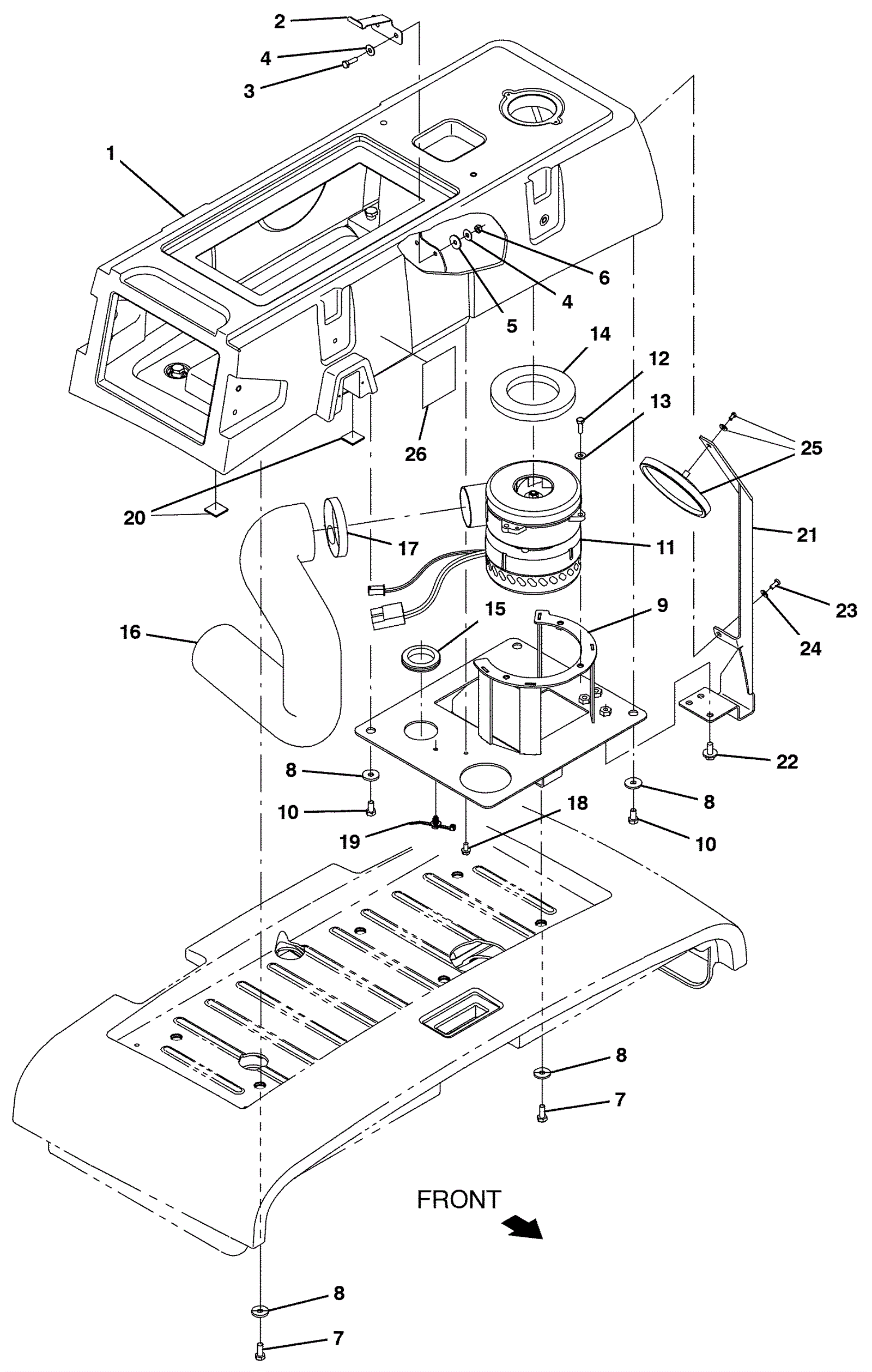

M17 Dry Vacuum - Fan and Housing Assembly - (After SN 019999)

#PartDescriptionPriceReqNotesAvailability
1 N/A Not available Call for price 1 (Box, Wand, Vac (Trimmed) usually ships 3-26 days
2 675-9717 PLATE, SPRING (Tennant Industrial) $149.70 1 usually ships 5-16 days
3 999-1312 Screw M6-1 x 20mm hex head stainless steel $0.99 2 ships same day
4 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 4 ships same day
5 175-7194 WASHER, FLAT, 0.25B 0.88D .06, NEO (Tennant Industrial) $5.17 2 usually ships 1-5 days
6 999-0497 Nut M6-1 nylon insert lock stainless steel $0.99 2 ships same day
7 999-0499 Bolt M8-1.25 x 20mm hex head full thread stainless steel $1.85 6 ships same day
8 175-7920 Washer M8 flat stainless steel $4.09 9 ships same day
9 675-9718 BRACKET WLDT, FAN (Tennant Industrial) $264.72 1 usually ships 5-16 days
10 999-0783 Screw M8-1.25 x 16mm hex head $0.99 3 ships same day
11 675-7782 FAN, VACUUM, 5.7D, 036VDC, 1 STAGE (Tennant Industrial) $2,080.25 1 usually ships 5-16 days
12 999-0502 Bolt M6-1 x 20mm hex head full thread zinc $0.99 3 ships same day
13 999-0016 Washer 1/4 flat plain finish $0.99 3 ships same day
14 675-9719 GASKET,.50,3.15ID 5.08OD,ADH [PORON] (Tennant Industrial) $50.18 1 usually ships 5-16 days
15 275-0543 Rubber grommet $5.83 1 usually ships 1-5 days
16 675-2607 MUFFLER, VACFAN, 2.50 ID X 25.0 OAL (Tennant Industrial) $310.73 1 usually ships 5-16 days
17 997-2009 Hose clamp $3.30 1 ships same day
18 175-3298 Bolt M6-1 x 12mm hex head $4.09 1 ships same day
19 275-5197 Fir tree clip $2.11 1 usually ships 5-16 days
20 175-3233 Cable tie mount $4.22 2 usually ships 1-5 days
21 675-9720 BRACKET, MIRROR (Tennant Industrial) $156.20 1 usually ships 5-16 days
22 275-4736 Screw M8-1.25 x 20mm hex washer head stainless steel SEMS $4.09 3 ships same day
23 175-3223 Screw 12-16 x 1/2 pan head plastic $4.88 1 usually ships 1-5 days
24 999-0998 Washer #10 flat stainless steel $0.99 1 ships same day
25 375-1041 Convex mirror (Tennant Industrial) $42.84 1 usually ships 1-5 days
26 N/A Not available Call for price 1 (Label, Instructional, Dry Vac) usually ships 3-26 days
