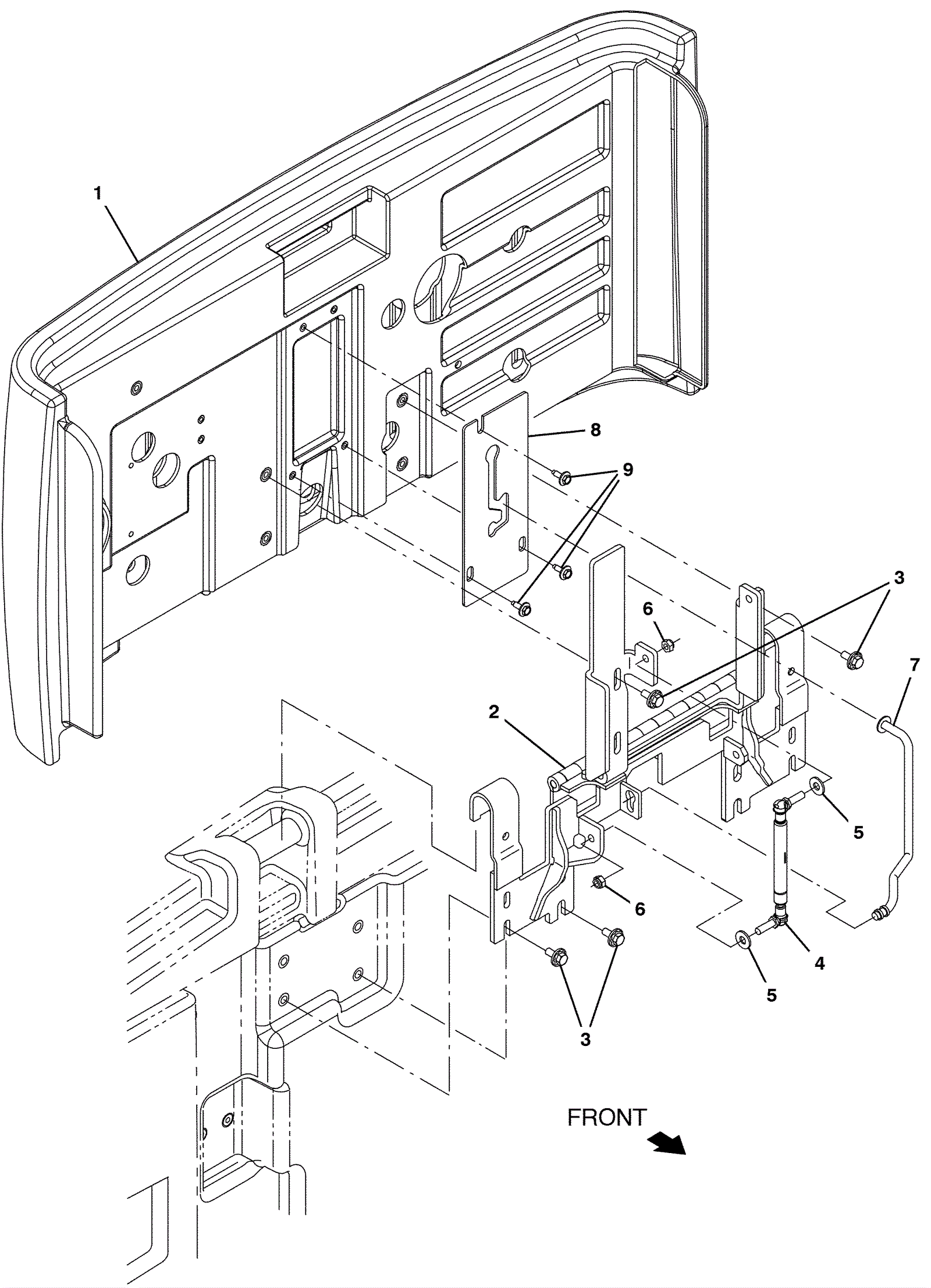

M17 Dry Vacuum - Rear Cover and Hinge Assembly - (After SN 019999)

#PartDescriptionPriceReqNotesAvailability
1 675-9716 COVER, BATTERY, TRIMMED [WASHER/VAC] (Tennant Industrial) $827.00 1 usually ships 5-16 days
2 675-9629 HINGE WLDT, COVER, BATTERY (Tennant Industrial) $380.24 1 usually ships 5-16 days
3 275-4736 Screw M8-1.25 x 20mm hex washer head stainless steel SEMS $4.09 12 ships same day
4 675-9631 STUD, BALL, 10MM BALL, M8X1.25 (Tennant Industrial) $6.17 1 usually ships 5-16 days
5 999-0024 Washer 5/16 flat stainless steel $1.34 2 ships same day
6 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.08 2 ships same day
7 575-8697 ROD WLDT, SEAT, BATTERY COVER [T17] (Tennant Industrial) $125.19 1 usually ships 5-16 days
8 675-9632 PLATE, MTG, COVER (Tennant Industrial) $33.34 1 usually ships 5-16 days
9 999-1312 Screw M6-1 x 20mm hex head stainless steel $0.99 3 ships same day
