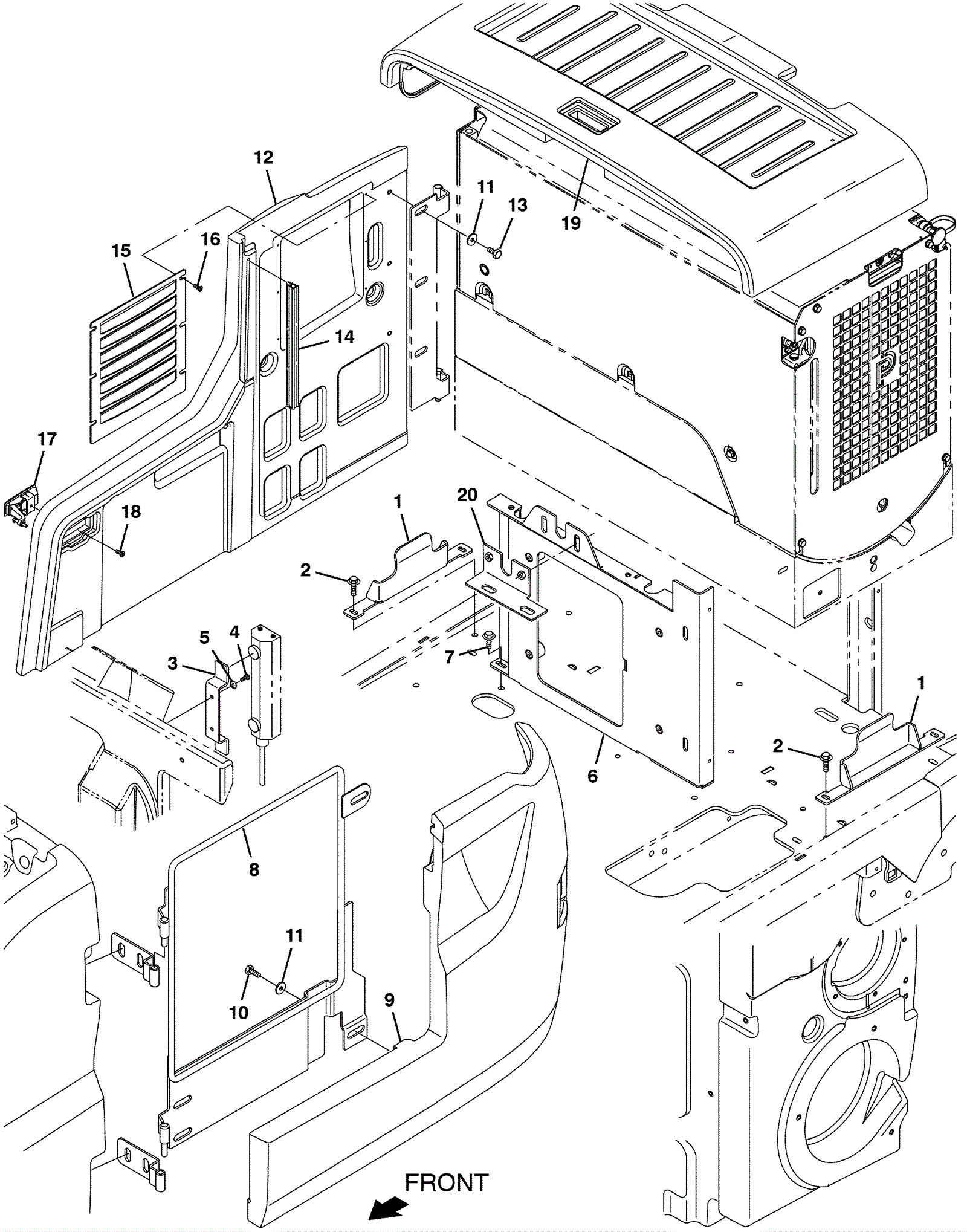

M17 Fuel Cell Assembly - (After SN 010999)

#PartDescriptionPriceReqNotesAvailability
1 675-9616 BRACKET, CELL, FUEL (Tennant Industrial) $122.02 2 usually ships 10-16 days
2 999-0785 Screw M8-1.25 x 30mm hex head stainless steel $2.09 4 ships same day
3 675-9617 BRACKET, CONTROLLER [PENDANT] (Tennant Industrial) $69.51 1 usually ships 10-16 days
4 175-5918 SCREW, PAN, PHL, 12-16 X 0.50, F/ PLSTC (Tennant Industrial $4.17 2 usually ships 1-5 days
5 275-7063 Washer 1/4 SAE flat black (Tennant Industrial) $5.33 2 usually ships 1-5 days
6 675-9618 BRACKET WLDT, SPPT, SEAT (Tennant Industrial) $609.62 1 usually ships 10-16 days
7 275-9575 SCREW, HEX, M8 X 1.25 X 25, 9.8, SEMS (Tennant Industrial) $4.17 2 ships same day
8 675-9619 DOOR, FRAME (Tennant Industrial) $684.64 1 usually ships 10-16 days
9 675-9620 COVER, SIDE, LH, FUEL CELL, AFMKT[T/M17] (Tennant Industrial $1,371.27 1 usually ships 10-16 days
10 999-0499 Bolt M8-1.25 x 20mm hex head full thread stainless steel $1.85 4 ships same day
11 175-7920 Washer M8 flat stainless steel $4.49 4 ships same day
12 675-9621 COVER, SIDE, RH, FUEL CELL,AFMKT [T/M17] (Tennant Industrial $1,452.96 1 usually ships 10-16 days
13 999-0783 Screw M8-1.25 x 16mm hex head $0.99 3 ships same day
14 275-1361 Snap-in lid gasket $80.41 1 usually ships 10-16 days
15 675-9622 PANEL, LOUVERED, RH (Tennant Industrial) $174.70 1 usually ships 10-16 days
16 175-3223 Screw 12-16 x 1/2 pan head plastic $5.28 6 usually ships 1-5 days
17 275-0047 Latch $73.48 1 usually ships 10-16 days
18 175-2895 Screw M5-0.8 x 20mm pan head $4.49 1 usually ships 10-16 days
19a 675-9623 COVER, BATTERY, FUEL CELL, AFMKT [T/M17] (Tennant Industrial $2,460.83 1 usually ships 10-16 days
19b 675-9624 COVER, BATTERY, FUEL CELL, OHG [T/M17] (Tennant Industrial) $2,460.83 1 usually ships 10-16 days
20 675-9625 BRACKET WLDT, MTG, OHG (Tennant Industrial) $71.68 1 usually ships 10-16 days
