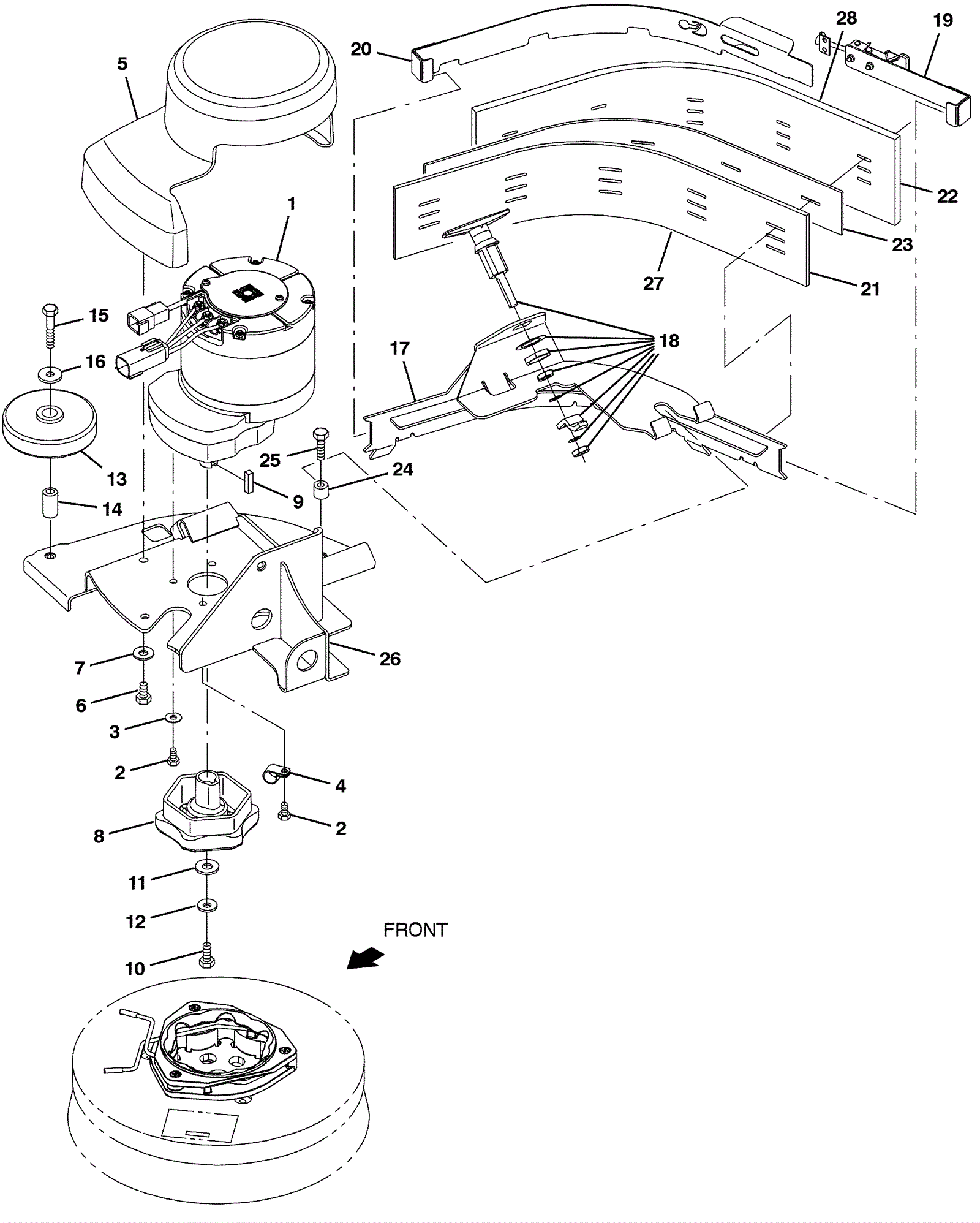

M17 Scrubbing Side Brush - Motor and Squeegee Assembly

#PartDescriptionPriceReqNotesAvailability
1 675-7781 MOTOR, ELE, 36 VDC, 350 RPM 1.25 HP GEAR (Tennant Industrial $2,157.76 1 usually ships 5-16 days
2 999-9116 Screw M6-1 x 12mm hex head stainless steel $0.99 4 ships same day
3 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 3 ships same day
4 175-3170 P clamp $3.83 1 usually ships 1-5 days
5 675-3652 COVER, MOTOR, SBA, AFMKT [T17] (Tennant Industrial) $423.42 1 usually ships 5-16 days
6 999-0784 Screw M8-1.25 x 16mm hex head stainless steel $1.74 2 ships same day
7 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel $0.99 2 ships same day
8 175-9525 Brush drive hub $189.86 1 ships same day
9 175-5356 Square keyway $4.09 1 ships same day
10 999-0499 Bolt M8-1.25 x 20mm hex head full thread stainless steel $1.85 1 ships same day
11 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel $0.99 1 ships same day
12 999-1407 Washer 5/16 belleville $3.04 1 ships same day
13 275-2208 WHEEL, 04.0D 0.89W 0.64B $35.97 1 usually ships 5-16 days
14 275-0855 Tube $9.13 1 usually ships 5-16 days
15 175-2854 Screw M8-1.25 x 45mm hex head stainless steel $4.88 1 ships same day
16 175-7920 Washer M8 flat stainless steel $4.09 1 ships same day
17a 675-5905 SQUEEGEE ASSY, SBA, AFMKT [M17] (Tennant Industrial) $884.68 1 (includes 17b-23) usually ships 5-16 days
17b 675-0898 BRACKET WLDT, SQGE, SBA (Tennant Industrial) $209.88 1 usually ships 5-16 days
18 275-7816 Squeegee compression latch $125.40 1 usually ships 5-16 days
19 575-6935 RETAINER WLDT, SQGE, SBA (Tennant Industrial) $85.68 1 usually ships 5-16 days
20 575-4772 RETAINER WLDT, SQGE, SBA (Tennant Industrial) $53.84 1 usually ships 5-16 days
21 575-8625 BLADE, SQGE, SBA, INNER [LINARD] (Tennant Industrial) $105.19 1 usually ships 5-16 days
22 575-9254 BLADE, SQGE, SBA, linatex (Tennant Industrial) $118.36 1 ships same day
23 575-2765 SPACER, BLADE (Tennant Industrial) $28.34 1 usually ships 5-16 days
24 175-9347 Sleeve $5.50 1 usually ships 5-16 days
25 999-0785 Screw M8-1.25 x 30mm hex head stainless steel $2.09 1 ships same day
26 675-2568 BRACKET WLDT, DECK (Tennant Industrial) $317.73 1 usually ships 5-16 days
27a 575-9952 BLADE, SQGE, SBA, INNER, URE (Tennant Industrial) $139.36 1 usually ships 5-16 days
27b 575-7699 BLADE, SQGE, SBA, INNER, GUM (Tennant Industrial) $50.01 1 usually ships 5-16 days
28a 675-1667 BLADE, SQGE, SBA, URE (Tennant Industrial) $212.38 1 usually ships 5-16 days
28b 575-9398 BLADE, SQGE, SBA, GUM (Tennant Industrial) $66.68 1 usually ships 5-16 days
