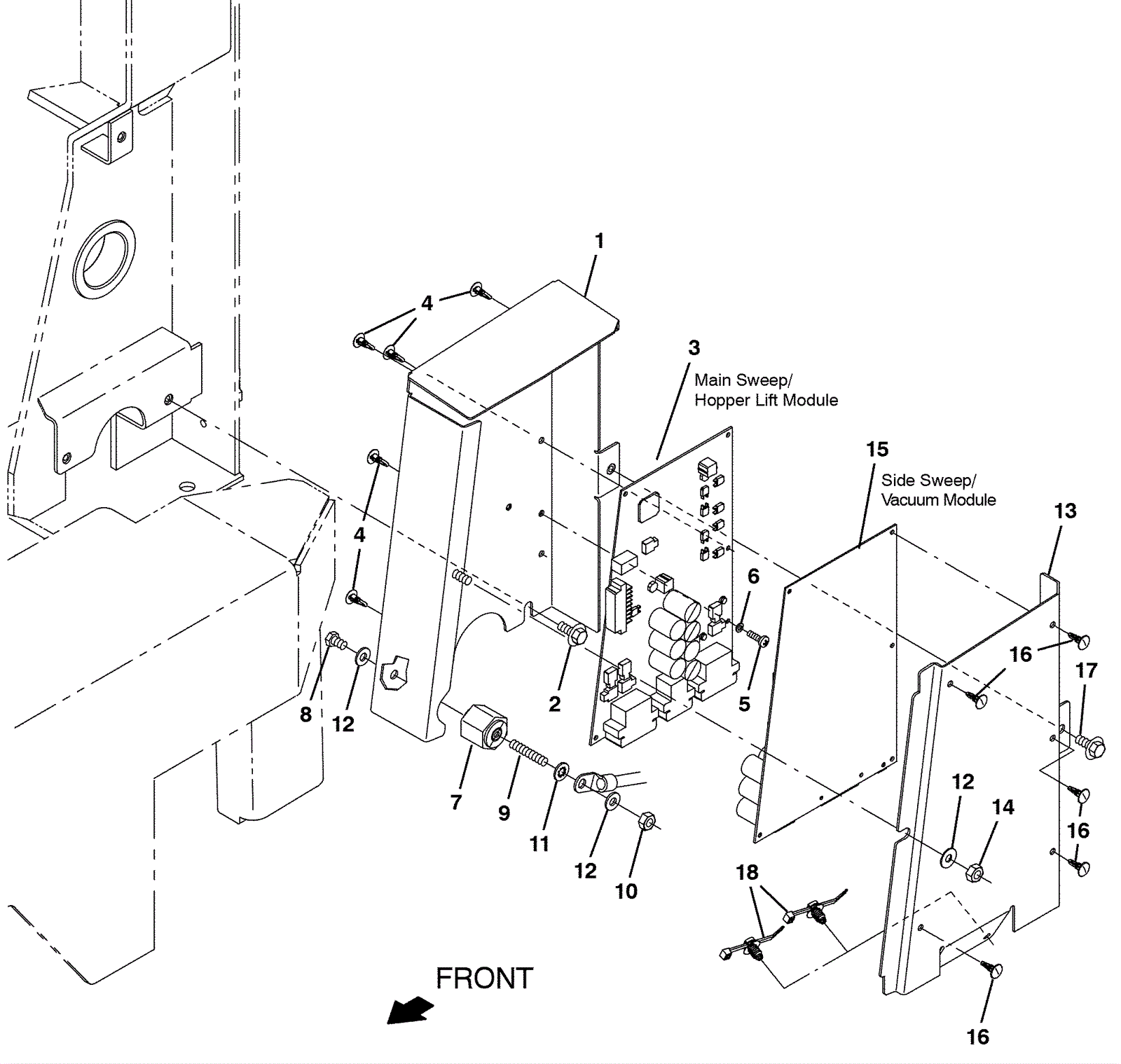

M17 Sweeping Electrical Box Assembly

#PartDescriptionPriceReqNotesAvailability
1 575-7356 CHANNEL WLDT, ENCLOSURE, ELE (Tennant Industrial) $94.02 1 usually ships 5-16 days
2 999-1383 Screw M6-1 x 16mm hex head stainless steel $3.96 4 ships same day
3 675-7511 CIRCUITBOARD KIT, SWP, MAIN, AFMKT [M17] (Tennant Industrial $1,947.22 1 (includes 4) usually ships 5-16 days
4 475-7425 STAND-OFF, CIRCUITBOARD [0.25 inch] (Tennant Industrial) $2.20 5 usually ships 5-16 days
5 175-5310 Screw 4 x 45/64 x 16 pan head $3.96 2 usually ships 1-5 days
6 275-7743 Washer .17x.31x.03 flat nylon $1.85 2 usually ships 1-5 days
7 175-3226 Insulated stand off $9.57 1 ships same day
8 999-0361 Bolt 1/4-20 x 3/8 hex head grade 5 zinc $4.17 1 ships same day
9 175-3227 Threaded rod $7.59 1 usually ships 1-5 days
10 999-0190 Nut 1/4-20 hex plain finish $0.99 1 ships same day
11 999-0238 Washer 1/4 internal star lock zinc plated $0.99 1 ships same day
12 999-0016 Washer 1/4 flat plain finish $0.99 3 ships same day
13 575-6909 PLATE, SPPT, BOARD (Tennant Industrial) $85.35 1 usually ships 5-16 days
14 999-0497 Nut M6-1 nylon insert lock stainless steel $0.99 1 ships same day
15 675-6897 CIRCUITBOARD KIT, SWP, SIDE, AFMKT [M17] (Tennant Industrial $1,409.62 1 (includes 16) usually ships 5-16 days
16 475-7425 STAND-OFF, CIRCUITBOARD [0.25 inch] (Tennant Industrial) $2.20 5 usually ships 5-16 days
17 999-1383 Screw M6-1 x 16mm hex head stainless steel $3.96 2 ships same day
18 275-5197 Fir tree clip $2.11 1 usually ships 5-16 days
