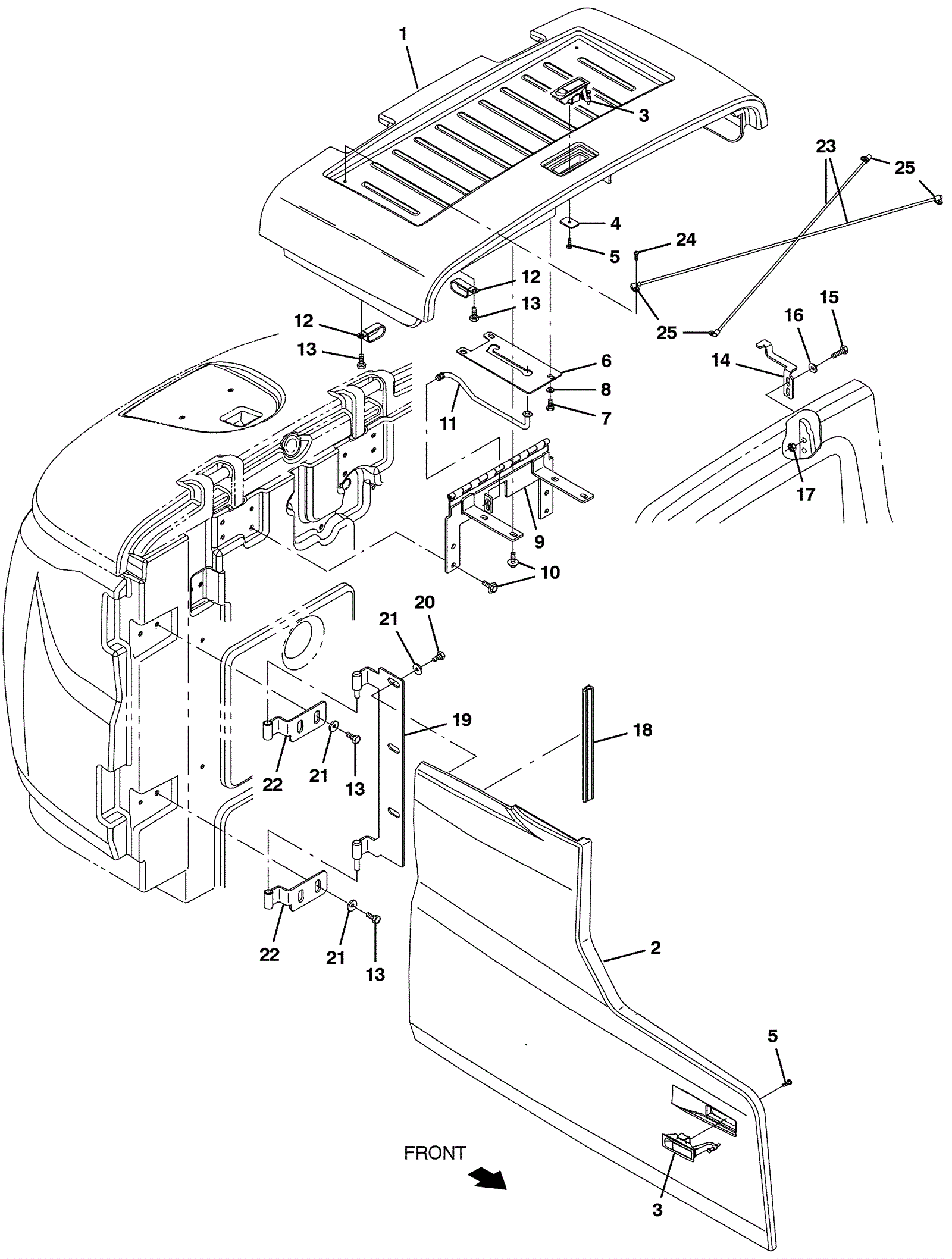

# | Part | Description | Price | Req | Notes | Availability |
1a |
675-5261
|
COVER, BATTERY, TOP, AFMKT [T17] (Tennant Industrial) |
$1,494.32
|
1 |
(before SN 011000) |
usually ships 6-16 days |
1b |
675-9589
|
COVER, ASSY, BATTERY [T17/M17] (Tennant Industrial) |
$2,190.37
|
1 |
(after SN 010999) |
usually ships 6-16 days |
2a |
675-4859
|
COVER, SIDE, RH, AFMKT [M17] (Tennant Industrial) |
$599.70
|
1 |
(before SN 011000) |
usually ships 6-16 days |
2b |
675-9590
|
COVER, SIDE, RH, STD, AFMKT [T/M17] (Tennant Industrial) |
$1,512.85
|
1 |
(after SN 010999) |
usually ships 6-16 days |
3 |
275-0047
|
Latch |
$61.10
|
2 |
|
usually ships 6-16 days |
4 |
475-8758
|
PLATE, LATCH [T17] (Tennant Industrial) |
$5.18
|
1 |
|
usually ships 6-16 days |
5 |
175-5139
|
SCREW, PAN, PHL, M5 X 0.80 X 25, 4.8 (Tennant Industrial) |
$5.01
|
2 |
|
usually ships 1-5 days |
6 |
575-0763
|
PLATE, PROP ROD, [T17] (Tennant Industrial) |
$15.36
|
1 |
|
usually ships 6-16 days |
7 |
999-0507
|
Bolt M6-1 x 16mm hex head full thread plain finish |
$0.99
|
3 |
|
ships same day |
8 |
999-0123
|
Washer 1/4 SAE flat zinc plated |
$0.99
|
3 |
|
ships same day |
9 |
575-8238
|
HINGE WLDT, COVER, BATTERY [T17] (Tennant Industrial) |
$110.39
|
1 |
|
usually ships 6-16 days |
10 |
275-4736
|
Screw M8-1.25 x 20mm hex washer head stainless steel SEMS |
$3.30
|
8 |
|
ships same day |
11 |
575-8697
|
ROD WLDT, SEAT, BATTERY COVER [T17] (Tennant Industrial) |
$122.91
|
1 |
|
usually ships 6-16 days |
12 |
175-3171
|
Cable clamp |
$4.50
|
3 |
|
usually ships 1-5 days |
13 |
999-0499
|
Bolt M8-1.25 x 20mm hex head full thread stainless steel |
$1.85
|
7 |
|
ships same day |
14 |
575-1517
|
BRACKET, LATCH [T17] (Tennant Industrial) |
$20.88
|
1 |
|
usually ships 6-16 days |
15 |
999-0248
|
Bolt M8-1.25 x 30mm hex head full thread plain finish |
$0.99
|
2 |
|
ships same day |
16 |
999-0024
|
Washer 5/16 flat stainless steel |
$1.34
|
4 |
|
ships same day |
17 |
999-0471
|
Nut M8-1.25 nylon insert lock zinc plated |
$0.99
|
2 |
|
ships same day |
18 |
475-9875
|
SEAL, AFMKT, BULB, DUAL, 01FT [F/.30GAP] (Tennant Industrial |
$10.52
|
1 |
|
usually ships 6-16 days |
19 |
575-9897
|
HINGE WLDT, RH [T17] (Tennant Industrial) |
$155.64
|
1 |
|
usually ships 6-16 days |
20 |
999-0783
|
Screw M8-1.25 x 16mm hex head |
$0.99
|
3 |
|
ships same day |
21 |
175-7920
|
Washer M8 flat stainless steel |
$3.30
|
7 |
|
ships same day |
22 |
475-3421
|
HINGE WLDT, [T/M17] |
$27.40
|
2 |
|
usually ships 6-16 days |
23 |
575-3675
|
CORD, BATTERY COVER [T17] (Tennant Industrial) |
$37.07
|
2 |
|
usually ships 6-16 days |
24 |
475-7635
|
SCREW, PAN, PHL, 10-32 X 0.50, G2, BLK (Tennant Industrial) |
$2.17
|
4 |
|
usually ships 6-16 days |
25 |
175-0144
|
P clamp |
$2.90
|
4 |
|
usually ships 6-16 days |
