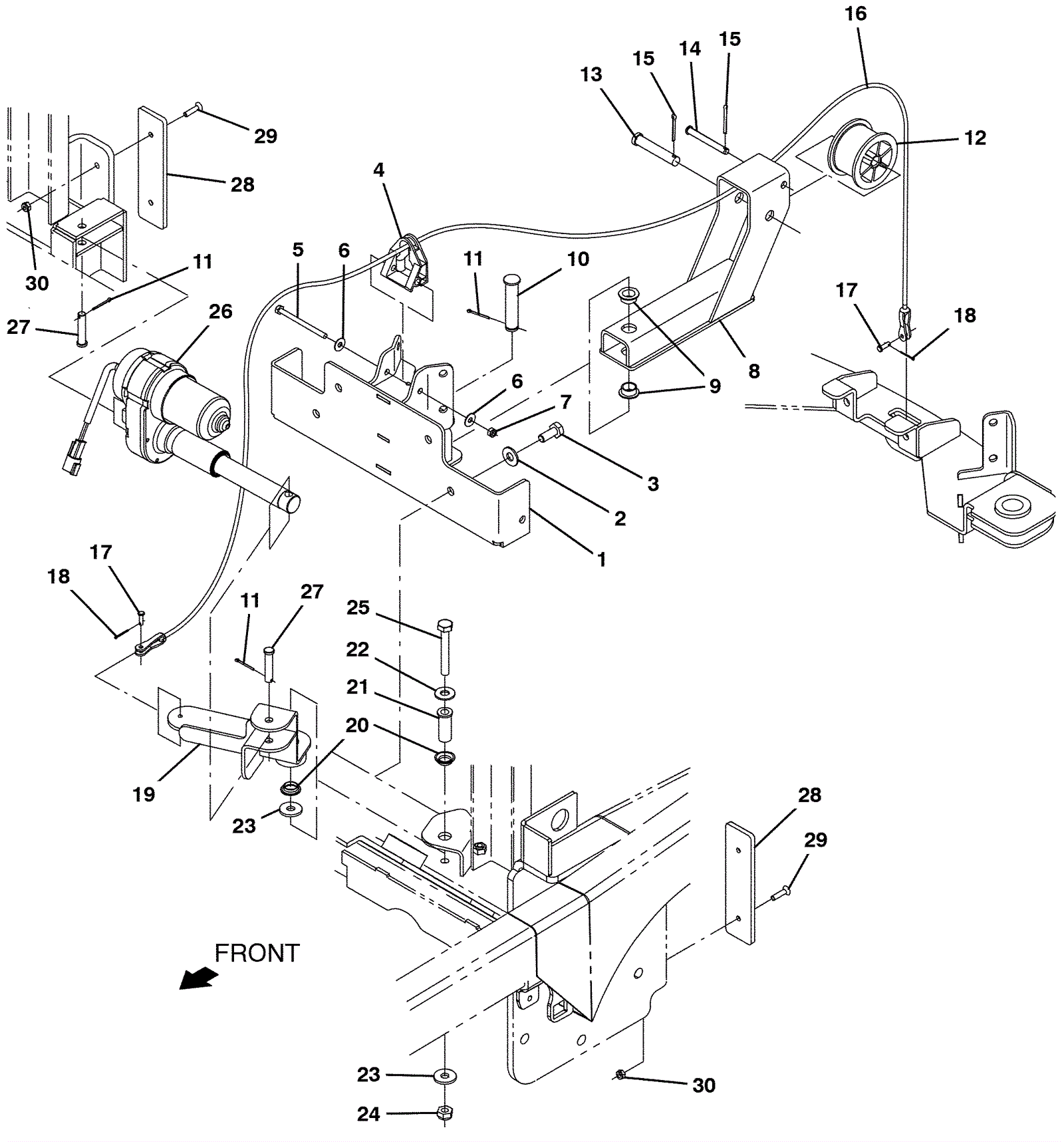

M17 Rear Squeegee - Lift Assembly

#PartDescriptionPriceReqNotesAvailability
1 675-1364 BRACKET WLDT, SQGE LIFT, FRAME (Tennant Industrial) $237.05 1 usually ships 5-16 days
2 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel $0.99 4 ships same day
3 999-1372 Bolt M10-1.5 x 25mm hex head stainless steel $3.56 4 ships same day
4 575-0261 GUIDE, CABLE, SQGE LIFT (Tennant Industrial) $12.34 1 usually ships 5-16 days
5 175-3399 Bolt M6-1 x 80mm hex head stainless steel $5.50 1 usually ships 5-16 days
6 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 2 ships same day
7 999-0497 Nut M6-1 nylon insert lock stainless steel $0.99 1 ships same day
8 575-8463 LIFT WLDT, SQGE, PULLEY (Tennant Industrial) $114.86 1 usually ships 5-16 days
9 175-3460 Flanged bushing $10.78 2 usually ships 5-16 days
10 375-4344 Clevis pin (Tennant Industrial) $38.34 1 usually ships 5-16 days
11 175-2588 Cotter pin $3.04 3 usually ships 5-16 days
12 175-0798 DRUM, CABLE, LIFT (Tennant Industrial) $21.34 1 usually ships 5-16 days
13 275-3047 PIN, CLEVIS, 0.50D X 2.62L (Tennant Industrial) $12.84 1 usually ships 1-5 days
14 275-5277 Clevis pin (Tennant Industrial) $5.17 1 usually ships 5-16 days
15 175-4986 Cotter pin $3.04 2 usually ships 1-5 days
16 575-4551 CABLE, SS .12D 22.6L .2CLEVIS / .2CLEVIS (Tennant Industrial $45.18 1 usually ships 5-16 days
17 175-0801 Clevis pin $4.09 2 usually ships 5-16 days
18 175-2361 Cotter pin $3.04 2 ships same day
19 575-8299 LEVER WLDT, SQGE LIFT, PULLEY (Tennant Industrial) $116.02 1 usually ships 5-16 days
20 175-2099 Flanged bushing $9.35 2 ships same day
21 575-2036 BUSHING,SLEEVE,FLNG0.40B 0.625D 1.62L,SS (Tennant Industrial $23.50 1 usually ships 5-16 days
22 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel $0.99 1 ships same day
23 275-1169 Washer .40 x 12mm flat $5.83 2 ships same day
24 999-1120 Nut M10-1.5 nylon insert lock stainless steel $3.92 1 ships same day
25 999-1321 Screw M10-1.5 x 70mm hex head stainless steel $5.57 1 usually ships 1-5 days
26 675-5074 ACTUATOR, 36V, 2.36IN STROKE (Tennant Industrial) $651.46 1 usually ships 5-16 days
27 175-2592 Clevis Pin 0.37 D X 1.75 L $4.88 2 ships same day
28 575-2914 SHIELD, BUMPER, SQGE CPLG (Tennant Industrial) $33.34 2 usually ships 5-16 days
29 999-1282 Screw M6-1 x 25mm flat head phillips zinc $0.99 4 ships same day
30 999-0469 Nut M6-1 nylon insert lock zinc plated $1.32 4 ships same day
