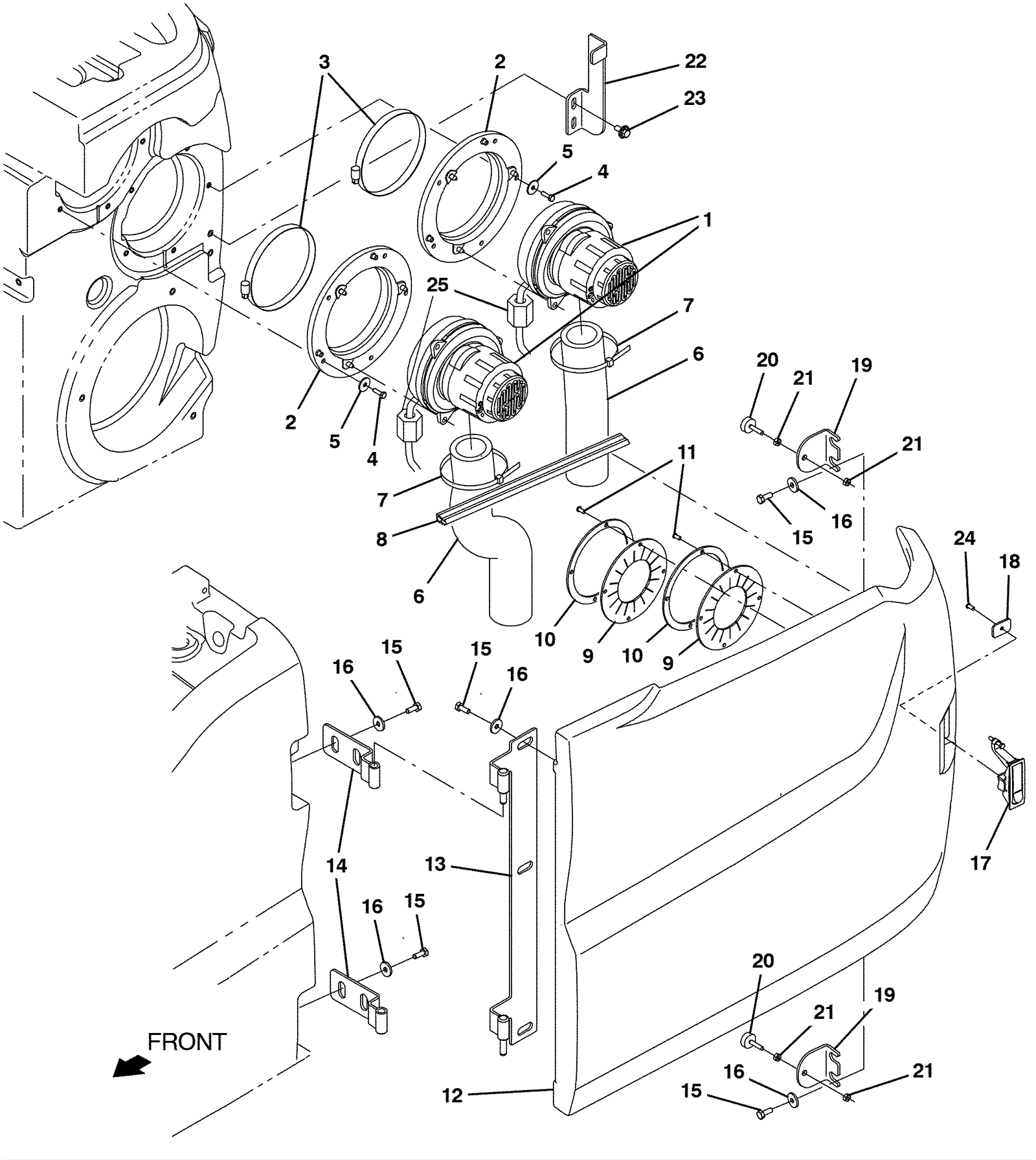

M17 Vacuum Fan and Rear Side Door

#PartDescriptionPriceReqNotesAvailability
1a 275-7692 Vacuum fan $288.20 2 (includes 1b) usually ships 10-16 days
1b 275-7693 Carbon brush (pkg of 2) $29.92 1 usually ships 10-16 days
2 275-7694 Vacuum fan seal assembly $40.81 2 usually ships 10-16 days
3 275-7695 Hose clamp (Tennant Industrial) $15.67 2 usually ships 10-16 days
4 999-1312 Screw M6-1 x 20mm hex head stainless steel $0.99 10 ships same day
5 275-0093 WASHER, FLAT, 0.28B 1.00D .06, STL (Tennant Industrial) $5.00 10 usually ships 10-16 days
6 275-7696 Vacuum fan muffler $36.08 2 usually ships 10-16 days
7 175-7795 Cable tie $5.15 2 ships same day
8 375-3230 Dual seal (Tennant Industrial) $26.51 1 ships same day
9 575-0644 SEAL, DOOR, VAC FAN, RBR (Tennant Industrial) $16.84 2 usually ships 10-16 days
10 575-0497 RETAINER, SEAL, DOOR, VAC FAN (Tennant Industrial) $16.17 2 usually ships 10-16 days
11 175-5918 SCREW, PAN, PHL, 12-16 X 0.50, F/ PLSTC (Tennant Industrial $4.17 8 usually ships 1-5 days
12a 575-2017 COVER, SIDE, LH, AFMKT [M17] (Tennant Industrial) $29.01 1 (before SN 011000) usually ships 10-16 days
12b 675-9588 COVER, SIDE, LH, STD, AFMKT [T/M17] (Tennant Industrial) $1,756.68 1 (after SN 010999) usually ships 10-16 days
13 575-9098 HINGE, WLDT, LH (Tennant Industrial) $141.36 1 usually ships 10-16 days
14 475-3421 HINGE WLDT, [T/M17] $33.00 2 usually ships 10-16 days
15 999-0784 Screw M8-1.25 x 16mm hex head stainless steel $1.74 11 ships same day
16 999-0032 Washer 3/8 USS flat plain finish $2.42 11 ships same day
17 275-0047 Latch $73.48 1 usually ships 10-16 days
18 475-8758 PLATE, LATCH [T17] (Tennant Industrial) $5.83 1 usually ships 10-16 days
19 575-0222 BRACKET, BMPR (Tennant Industrial) $13.17 2 usually ships 10-16 days
20 275-8308 BUMPER, RBR, 1.0D 0.38TH .25-20 (Tennant Industrial) $21.50 2 usually ships 10-16 days
21 999-0190 Nut 1/4-20 hex plain finish $0.99 4 ships same day
22 575-1721 BRACKET, LATCH, LH PANEL [T17] (Tennant Industrial) $26.51 1 usually ships 10-16 days
23 275-4736 Screw M8-1.25 x 20mm hex washer head stainless steel SEMS $4.49 2 usually ships 10-16 days
24 999-0901 Screw M5-.8 x 16mm pan head phillips stainless steel $0.99 2 ships same day
25 575-0329 INDUCTOR, 12.7MMID [156 IMP AT 25MHZ] (Tennant Industrial) $13.84 2 usually ships 10-16 days
