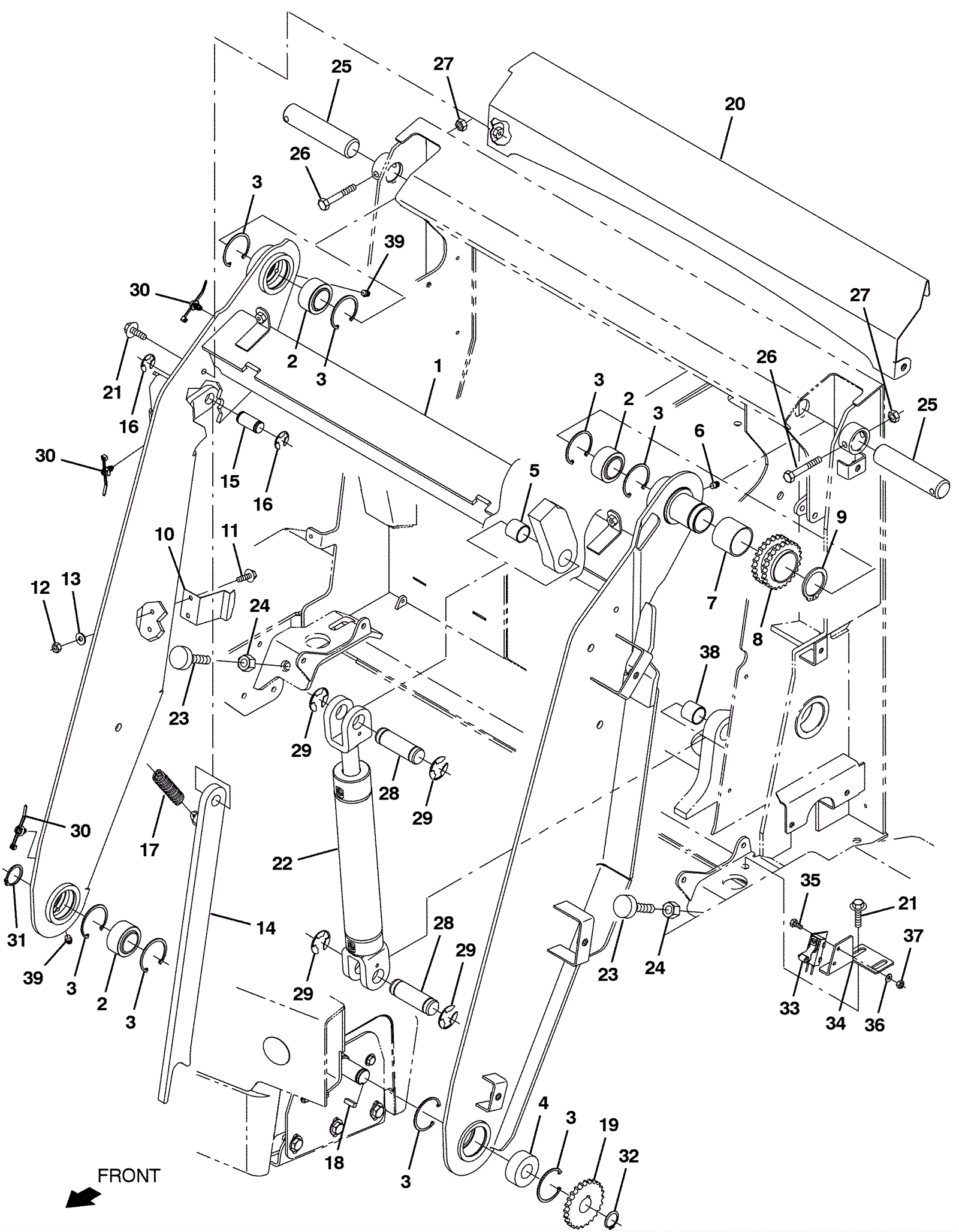

M17 Hopper - Lift Arm Assembly

#PartDescriptionPriceReqNotesAvailability
1 675-7880 ARM WLDT, HPPR (Tennant Industrial) $2,275.79 1 usually ships 5-16 days
2 275-2505 Self align bearing (Tennant Industrial) $79.68 3 usually ships 1-5 days
3 275-8454 RING, RETAINING, INT, 2.00D (Tennant Industrial) $6.17 8 usually ships 1-5 days
4 575-6596 BEARING, BALL, 1.00B 2.05D .811W 2ROW (Tennant Industrial) $71.51 1 usually ships 5-16 days
5 275-2063 BUSHING, SLEEVE, 1.00B 1.13D 0.99L, FGL (Tennant Industrial $18.50 1 usually ships 1-5 days
6 475-8077 FITTING, GREASE, STR 1.125L (Tennant Industrial) $5.00 1 usually ships 5-16 days
7 275-8456 BEARING, SLEEVE, 1.75ID (Tennant Industrial) $38.67 1 usually ships 1-5 days
8 575-3413 SPROCKET, 18TOOTH, DBL (Tennant Industrial) $39.17 1 usually ships 5-16 days
9 275-8457 RING, RETAINING, EXT, 1.75D, HD (Tennant Industrial) $6.50 1 usually ships 1-5 days
10 575-1519 CLIP, SPRING, PROP ARM (Tennant Industrial) $22.00 1 usually ships 5-16 days
11 999-0779 Screw M6-1 x 25mm hex head plain finish $0.99 2 ships same day
12 999-0469 Nut M6-1 nylon insert lock zinc plated $1.32 2 ships same day
13 999-0123 Washer 1/4 SAE flat zinc plated $0.99 2 ships same day
14a 675-0966 ARM KIT, PROP, AFMKT [M17] (Tennant Industrial) $212.54 1 usually ships 5-16 days
14b 675-4449 ARM KIT, PROP, TJ, AFMKT [M17] (Tennant Industrial) $531.61 1 usually ships 5-16 days
15 575-1557 PIN, ARM, PROP ROD (Tennant Industrial) $22.34 1 usually ships 5-16 days
16 175-6766 RING, RETAINING, EXT, 0.75D (Tennant Industrial) $4.60 2 usually ships 1-5 days
17 575-2081 SPRING, EXTN, 0.70OD .09WIR 3.9L (Tennant Industrial) $26.67 1 usually ships 5-16 days
18 175-2236 Square keyway $4.09 1 usually ships 5-16 days
19 575-2141 SPROCKET, 40, 18TOOTH, 1.00B (Tennant Industrial) $26.01 1 usually ships 5-16 days
20 575-6865 COVER WLDT, CROSS TUBE (Tennant Industrial) $84.52 1 usually ships 5-16 days
21 675-9578 SCREW, HEX, M8 X 1.25 X 25, SEMS, LOCK (Tennant Industrial) $1.40 6 usually ships 1-5 days
22 675-6345 CYLINDER, HYD, 2.0B 19.69L 10.00STRK (Tennant Industrial) $1,026.71 1 usually ships 5-16 days
23 675-9579 VIBRATION DAMPER, RUBBER, M12 THREAD (Tennant Industrial) $32.67 2 usually ships 5-16 days
24 475-8845 NUT, HEX, JAM, M12 X 1.75, [DIN439] (Tennant Industrial) $5.00 2 usually ships 5-16 days
25 575-4660 PIN, 1.25D 5.5L (Tennant Industrial) $54.01 2 usually ships 5-16 days
26 175-3163 Screw M8-1.25 x 60mm hex head $4.09 2 usually ships 5-16 days
27 999-0471 Nut M8-1.25 nylon insert lock zinc plated $0.99 2 ships same day
28 575-2879 PIN, CLEVIS, GRVD, 1.00D X 3.31L (Tennant Industrial) $34.34 2 usually ships 5-16 days
29 375-0702 Retainging ring (Tennant Industrial) $4.40 4 usually ships 1-5 days
30 275-5197 Fir tree clip $2.11 3 usually ships 5-16 days
31 175-6744 RING, RETAINING, EXT, 0.98D, BASIC (Tennant Industrial) $4.40 1 usually ships 5-16 days
32 275-2038 RETAINER, RING (Tennant Industrial) $11.50 1 usually ships 1-5 days
33 275-0140 Roller snap switch 15A no $134.31 1 usually ships 5-16 days
34 575-1854 BRACKET, MTG, SWITCH (Tennant Industrial) $23.67 1 usually ships 5-16 days
35 999-1220 Screw M5-.8 x 12mm hex head stainless steel $0.99 2 ships same day
36 999-0998 Washer #10 flat stainless steel $0.99 2 ships same day
37 999-0740 Nut M5-.8 hex stainless steel $0.99 2 ships same day
38 275-2063 BUSHING, SLEEVE, 1.00B 1.13D 0.99L, FGL (Tennant Industrial $18.50 1 usually ships 1-5 days
39 175-3248 Grease fitting $4.09 2 usually ships 5-16 days
Kit1 675-7791 ARM KIT, LIFT, HPPR, AFMKT [M17] (Tennant Industrial) $2,103.59 1 (includes 1-5) usually ships 5-16 days
Kit2 575-6602 SPROCKET KIT, HPPR, AFMKT [M17] (Tennant Industrial) $77.35 1 (includes 7 and 8) usually ships 5-16 days
