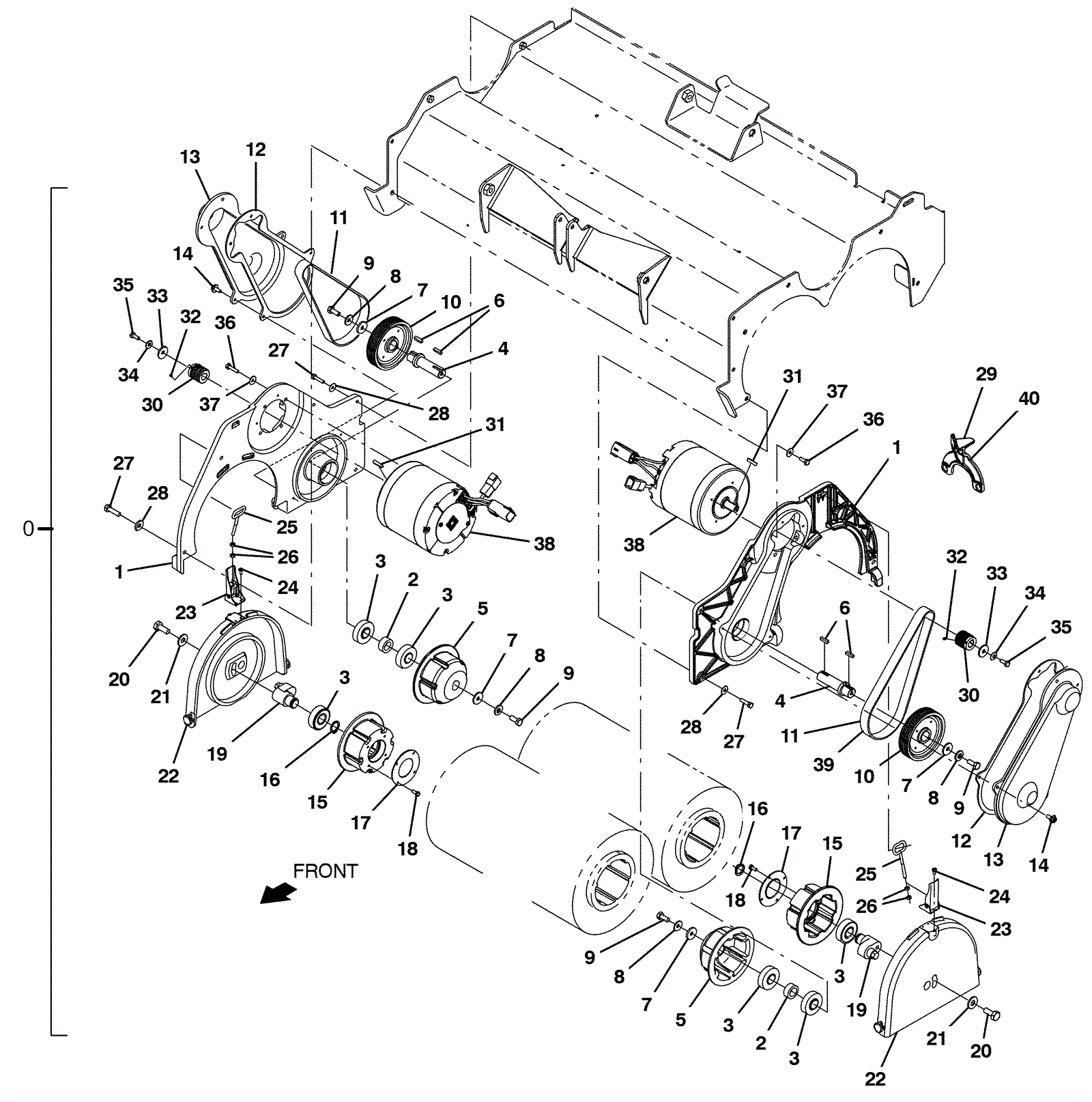

M17 Scrub Head and Drive Motor Assembly - Cylindrical

#PartDescriptionPriceReqNotesAvailability
0 675-6809 PANEL ASSY, CYL, AFMKT [T17] (Tennant Industrial) $1,285.92 2 (includes 1-29) usually ships 5-16 days
1 675-1009 PLATE, SIDE, WRAP (Tennant Industrial) $215.21 1 usually ships 5-16 days
2 575-1556 SPACER, BRG (Tennant Industrial) $19.67 1 usually ships 5-16 days
3 175-9072 Ball bearing $8.58 3 ships same day
4 575-9788 SHAFT, DRIVE, BRUSH (Tennant Industrial) $159.53 1 usually ships 5-16 days
5 575-7484 PLUG, DRIVE, BRUSH (Tennant Industrial) $97.35 1 usually ships 5-16 days
6 175-8818 Square keyway $4.09 2 usually ships 5-16 days
7 175-7920 Washer M8 flat stainless steel $4.09 2 ships same day
8 999-1407 Washer 5/16 belleville $3.04 2 ships same day
9 999-0499 Bolt M8-1.25 x 20mm hex head full thread stainless steel $1.85 2 ships same day
10 575-6831 SHEAVE, 09GRV, 4.13PD 0.75B [PJ] (Tennant Industrial) $75.02 1 usually ships 5-16 days
11 575-4179 BELT, DRIVE, CYL [T17] (Tennant Industrial) $41.34 1 usually ships 5-16 days
12a 575-8646 COVER KIT, BELT, CYL, AFMKT [T7] (Tennant Industrial) $123.52 1 (includes 12b-14) usually ships 5-16 days
12b 575-0495 GASKET, BELT, COVER (Tennant Industrial) $13.84 1 usually ships 5-16 days
13 575-1720 COVER, BELT (Tennant Industrial) $22.67 1 usually ships 5-16 days
14 999-1383 Screw M6-1 x 16mm hex head stainless steel $3.96 4 ships same day
15a 675-4018 DOOR ASSY, IDLER, CYL, AFMKT [T17] (Tennant Industrial) $469.09 2 (includes 15b-26) usually ships 5-16 days
15b 575-6566 PLUG, IDLER, BRUSH (Tennant Industrial) $47.09 1 ships same day
16 275-2003 Retaining ring (Tennant Industrial) $6.00 1 usually ships 5-16 days
17 275-6557 Bearing retainer (Tennant Industrial) $17.84 1 ships same day
18 999-1220 Screw M5-.8 x 12mm hex head stainless steel $0.99 4 ships same day
19 575-5574 CAM, ADJ, BRUSH (Tennant Industrial) $57.34 1 usually ships 5-16 days
20 999-1372 Bolt M10-1.5 x 25mm hex head stainless steel $3.56 1 ships same day
21 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel $0.99 1 ships same day
22 575-8182 COVER, PLUG, IDLER (Tennant Industrial) $113.36 1 usually ships 5-16 days
23 575-2393 LATCH (Tennant Industrial) $26.51 1 usually ships 5-16 days
24 999-0534 Screw M4-.7 x 10mm pan head slotted zinc $0.99 3 ships same day
25 275-8633 HOOK WLDT, LATCH (Tennant Industrial) $38.84 1 usually ships 5-16 days
26 275-3158 NUT, HEX, STD, M5 X 0.80, 8 (Tennant Industrial) $5.00 2 usually ships 1-5 days
27 999-1087 Bolt M6-1 x 25mm hex head stainless steel $0.99 5 ships same day
28 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 5 ships same day
29 575-8641 TOOL, INSTALLATION, BELT [T17] (Tennant Industrial) $118.86 1 usually ships 5-16 days
30a 675-8008 MOTOR ASSY, CYL, AFMKT [T17] (Tennant Industrial) $2,477.66 2 (includes 3b-38) usually ships 5-16 days
30b 575-7056 SHEAVE, 09GRV, 1.18PD 0.55B [PJ] (Tennant Industrial) $78.85 1 usually ships 5-16 days
31 275-1468 Square keyway $4.88 1 ships same day
32 999-0431 Screw 8-32 x 1/4 set socket cup point alloy plain finish $0.99 1 ships same day
33 175-7920 Washer M8 flat stainless steel $4.09 1 ships same day
34 275-0092 Washer 1/4 flat belleville $3.96 1 usually ships 5-16 days
35 999-0518 Bolt M6-1 x 25mm hex head full thread zinc $0.99 1 ships same day
36 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish $0.99 4 ships same day
37 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 4 ships same day
38 675-7639 MOTOR, ELE, 36VDC, 1750 RPM 1.5HP (Tennant Industrial) $1,989.90 1 usually ships 5-16 days
39a 675-2621 BELT KIT, CYL, AFMKT [T17] (Tennant Industrial) $292.39 2 (includes 39b and 40) usually ships 5-16 days
39b 575-4179 BELT, DRIVE, CYL [T17] (Tennant Industrial) $41.34 1 usually ships 5-16 days
40 575-8641 TOOL, INSTALLATION, BELT [T17] (Tennant Industrial) $118.86 1 usually ships 5-16 days
