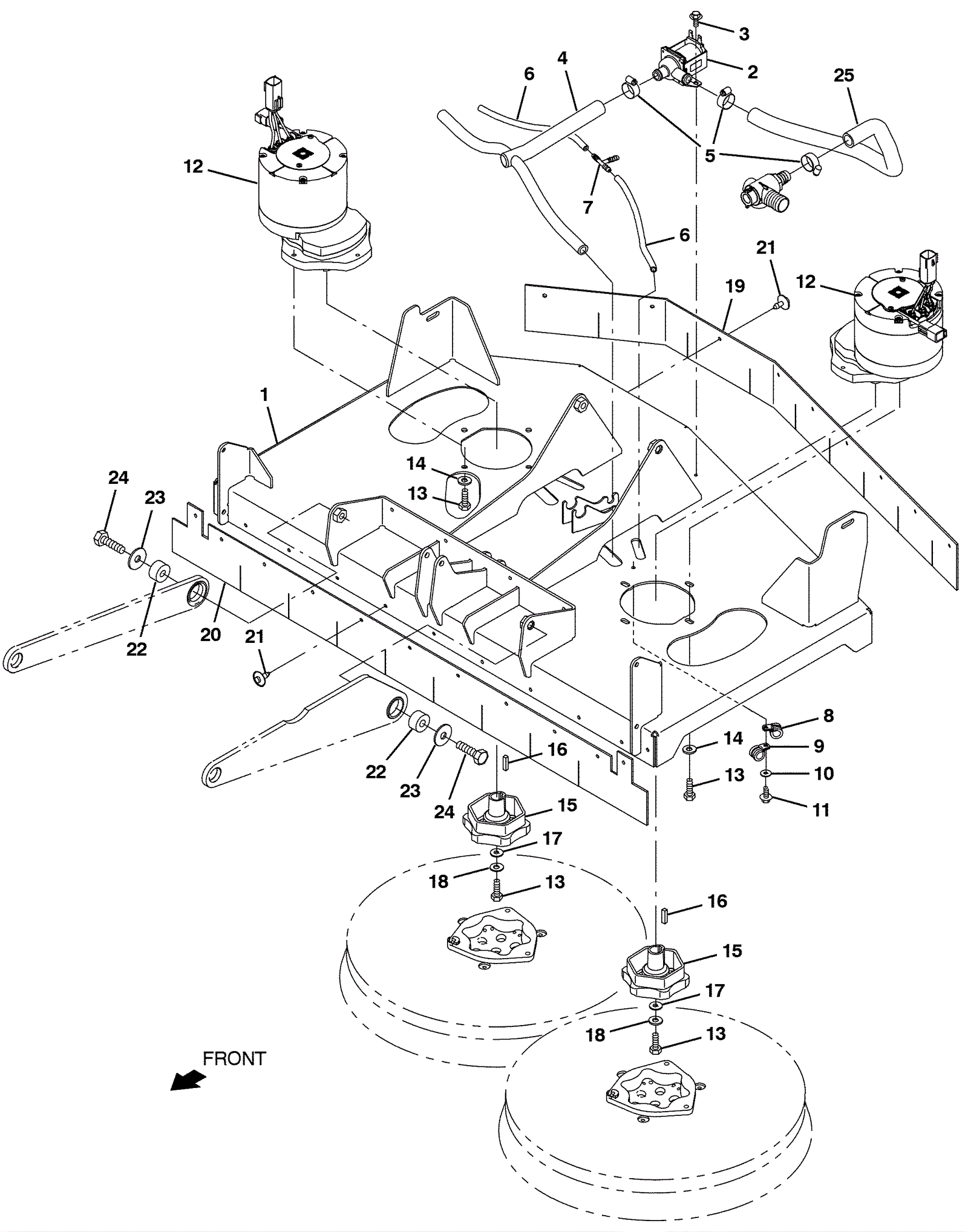

M17 Scrub Head and Drive Motor Assembly - Disk

#PartDescriptionPriceReqNotesAvailability
1 675-5840 HEAD WLDT, DISK (Tennant Industrial) $863.17 1 usually ships 5-16 days
2a 675-0197 VALVE KIT, REPLACEMENT 36V HI FLOW (Tennant Industrial) $168.03 1 before SN 010509) usually ships 5-16 days
2b 675-0825 VALVE, WATER, SOLENOID - 36V (Tennant Industrial) $218.21 1 (after SN 010508) usually ships 5-16 days
3 175-3298 Bolt M6-1 x 12mm hex head $4.09 2 ships same day
4 575-9742 MANIFOLD, SOLTN (Tennant Industrial) $142.53 1 usually ships 5-16 days
5 175-0199 Hose clamp $6.60 3 usually ships 5-16 days
6 575-6280 HOSE, AFMKT, PVC, BRD, 0.25ID, 01FT (Tennant Industrial) $71.01 2 usually ships 5-16 days
7 175-7303 1/4 inch union tee $10.34 1 usually ships 5-16 days
8 175-7808 1/2 inch insulated P clamp $4.75 2 usually ships 1-5 days
9 275-0563 CLAMP, CABLE, STL, 0.75D X 0.75W, 1HOLE $4.09 2 usually ships 5-16 days
10 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 2 ships same day
11 999-0778 Screw M6-1 x 10mm hex head $0.99 2 ships same day
12a 675-8160 MOTOR ASSY, DISK, AFMKT [T17] (Tennant Industrial) $2,845.24 2 (includes 12b-18) usually ships 5-16 days
12b 675-7828 MOTOR, ELE, 36VDC, 350 RPM 1.5HP GEAR (Tennant Industrial) $2,215.78 1 usually ships 5-16 days
13 999-0501 Bolt M8-1.25 x 25mm hex head full thread stainless steel $2.64 5 ships same day
14 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel $0.99 5 ships same day
15 175-9525 Brush drive hub $189.86 1 ships same day
16 175-5356 Square keyway $4.09 1 ships same day
17 999-1407 Washer 5/16 belleville $3.04 1 ships same day
18 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel $0.99 1 ships same day
19a 575-9634 SKIRT KIT, DISK, AFMKT [T17] (Tennant Industrial) $137.53 1 (includes 19b-21) usually ships 5-16 days
19b 575-2912 SKIRT, RBR, REAR (Tennant Industrial) $30.84 1 usually ships 5-16 days
20 575-4397 SKIRT, RBR, FRONT (Tennant Industrial) $43.84 1 usually ships 5-16 days
21 175-3378 Rivet 1/4 x 57/64 plastic $3.83 20 usually ships 5-16 days
22 575-2945 PIVOT, LIFT (Tennant Industrial) $33.51 2 usually ships 5-16 days
23 475-9154 WASHER, FLAT, 0.5B 1.5D .12, STL, PL (Tennant Industrial) $6.17 2 usually ships 5-16 days
24 175-0647 SCREW, HEX, M12 X 1.75 X 40, 8.8 (Tennant Industrial) $6.17 2 usually ships 1-5 days
25 575-5243 HOSE, AFMKT, PVC, WIR, 0.75ID, 03FT, CLR (Tennant Industrial $54.18 1 usually ships 5-16 days
