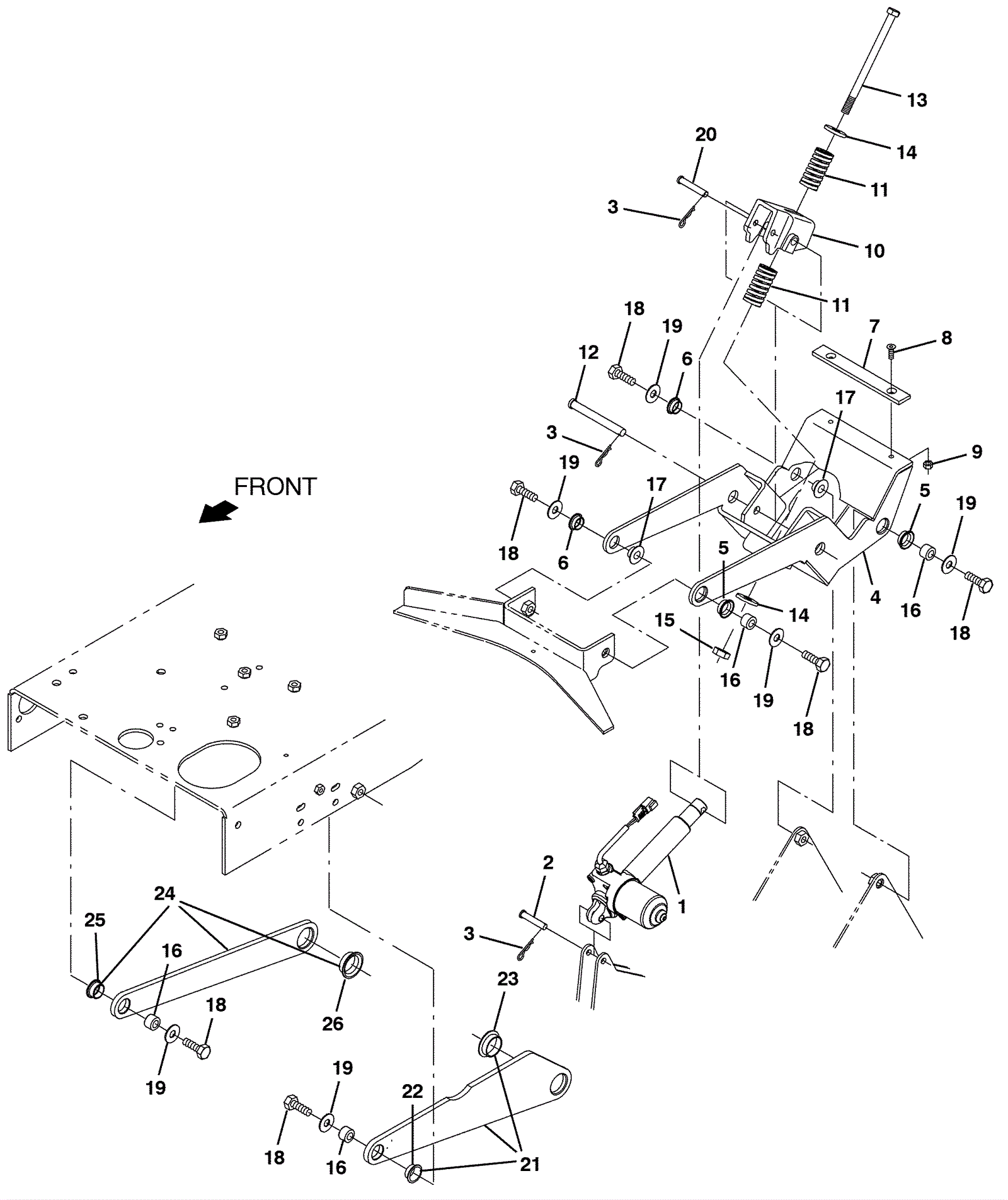

M17 Scrub Head Lift Assembly

#PartDescriptionPriceReqNotesAvailability
1 675-5391 ACTUATOR, 36VDC, 5.00STRK, 1100LB (Tennant Industrial) $726.15 1 ships same day
2 173-1595 Clevis pin (OBSOLETE) $4.88 1 usually ships 5-16 days
3 175-2117 Cotter pin $4.88 3 ships same day
4a 675-4420 ARM WLDT, LIFT, HEAD, AFMKT [T17] (Tennant Industrial) $526.61 1 (includes 4b-9) usually ships 5-16 days
4b 475-3884 ARM WLDT, LIFT $296.78 1 usually ships 5-16 days
5 375-0729 Flanged bushing (Tennant Industrial) $7.67 2 usually ships 5-16 days
6 275-0082 Flange bushing .5b .59d .38l $10.23 2 usually ships 1-5 days
7 575-1792 PAD, STOP, RBR (Tennant Industrial) $23.50 1 usually ships 5-16 days
8 175-0562 SCREW, FLT, SOC, M6 X 1.00 X 20, 10.9 (Tennant Industrial) $6.17 2 usually ships 1-5 days
9 999-0497 Nut M6-1 nylon insert lock stainless steel $0.99 2 ships same day
10 675-1651 BELLCRANK, SPRING, MACHINED (Tennant Industrial) $226.55 1 usually ships 5-16 days
11 575-4443 SPRING, CMPR, 1.25OD FLAT WIR 02.5L (Tennant Industrial) $44.34 2 usually ships 5-16 days
12 175-5401 Clevis pin 1/2 x 4 1/2 $5.50 1 usually ships 5-16 days
13 475-9083 SCREW, HEX, M12 X 1.75 X 180, 8.8 (Tennant Industrial) $6.00 1 usually ships 5-16 days
14 475-9165 WASHER, FLAT, 0.53B 1.50D .19, STL (Tennant Industrial) $6.17 2 usually ships 5-16 days
15 999-0519 Nut M12-1.75 nylon insert lock stainless steel $3.85 1 ships same day
16 475-8949 SLEEVE, P/M, 0.50B 0.87D 0.6L [430SS] (Tennant Industrial) $5.67 4 usually ships 5-16 days
17 475-9082 SLEEVE, P/M, FLNG, 0.50B 1.25/0.75D 0.4L (Tennant Industrial $6.00 2 usually ships 5-16 days
18 175-0647 SCREW, HEX, M12 X 1.75 X 40, 8.8 (Tennant Industrial) $6.17 6 usually ships 1-5 days
19 475-7754 WASHER, FLAT, 0.50B 1.25D 0.8, STL, PL (Tennant Industrial) $3.80 6 usually ships 5-16 days
20 175-2185 Clevis pin $3.96 1 ships same day
21 675-0417 LINK ASSY, HEAD, RH SIDE, AFMKT [T17] (Tennant Industrial) $180.20 1 (includes 22 and 23) usually ships 5-16 days
22 475-9012 BUSHING, FLNG, 0.88B 1.0D 0.50L (Tennant Industrial) $5.83 1 usually ships 5-16 days
23 475-9783 BUSHING, FLNG, 1.25B 1.41D 0.50L (Tennant Industrial) $9.17 1 usually ships 5-16 days
24 675-9559 Side head plate assembly $50.68 1 (includes 25 and 26) usually ships 5-16 days
25 475-9012 BUSHING, FLNG, 0.88B 1.0D 0.50L (Tennant Industrial) $5.83 1 usually ships 5-16 days
26 475-9783 BUSHING, FLNG, 1.25B 1.41D 0.50L (Tennant Industrial) $9.17 1 usually ships 5-16 days
