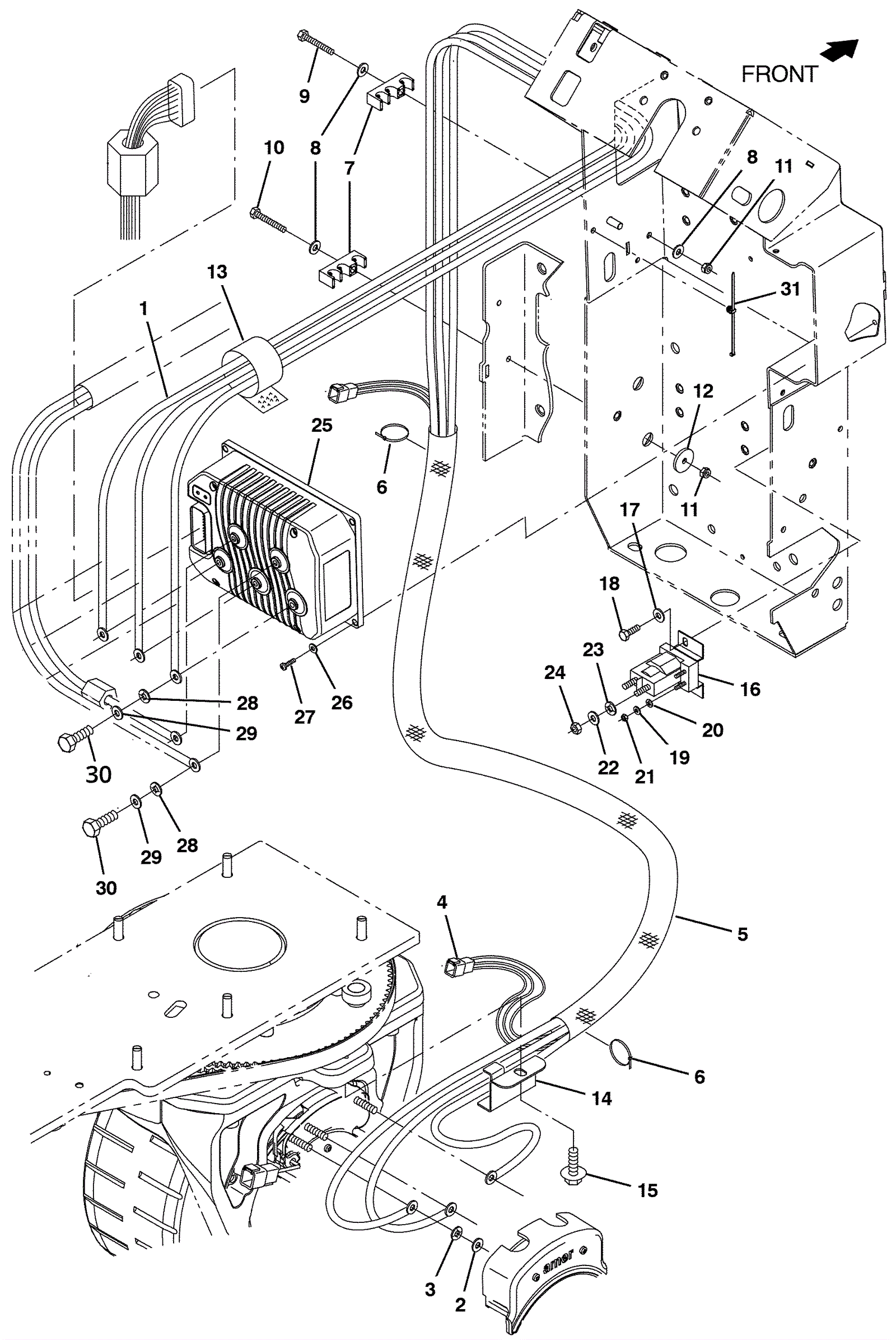

M17 Drive Wheel Electrical Assembly

#PartDescriptionPriceReqNotesAvailability
1 675-4066 CABLE ASSY, 02GA [M17/T17, PROPEL] (Tennant Industrial) $476.10 1 usually ships 5-16 days
2 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 3 ships same day
3 999-0406 Washer 5/16 internal star lock zinc plated $0.99 3 ships same day
4 575-4907 HARNESS, ELE, PROPEL MOTOR [M17, T17] (Tennant Industrial) $55.01 1 usually ships 5-16 days
5 175-6980 SLEEVE, NYL, 1.63ID 20.0L (Tennant Industrial) $20.50 1 usually ships 1-5 days
6 375-3863 Cable tie (Tennant Industrial) $5.00 2 usually ships 5-16 days
7 475-8330 CLAMP, SPPT, WIRE (Tennant Industrial) $5.00 4 usually ships 5-16 days
8 999-0016 Washer 1/4 flat plain finish $0.99 5 ships same day
9 175-0574 Bolt 6mm-1 x 35 hex head $4.09 1 usually ships 5-16 days
10 999-0781 Screw M6-1 x 45mm hex head $0.99 1 ships same day
11 999-0469 Nut M6-1 nylon insert lock zinc plated $1.32 4 ships same day
12 275-1464 WASHER, FLAT, 0.25B 1.12D .12, SS (Tennant Industrial) $8.84 1 usually ships 1-5 days
13 575-0064 FASTENER, 11.00L [HOOK & LOOP] (Tennant Industrial) $10.34 1 usually ships 5-16 days
14 575-1254 CLAMP, CABLE (Tennant Industrial) $17.50 1 usually ships 5-16 days
15 999-1312 Screw M6-1 x 20mm hex head stainless steel $0.99 1 ships same day
16 175-2373 36V contactor $36.19 1 ships same day
17 999-0016 Washer 1/4 flat plain finish $0.99 2 ships same day
18 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish $0.99 2 ships same day
19 999-0998 Washer #10 flat stainless steel $0.99 2 ships same day
20 999-0089 Washer #10 internal star lock zinc plated $0.99 2 ships same day
21 999-0460 Nut 10-32 hex $0.99 2 ships same day
22 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 2 ships same day
23 999-0406 Washer 5/16 internal star lock zinc plated $0.99 2 ships same day
24 999-0763 Nut 5/16-24 hex jam plain finish $0.99 2 ships same day
25 675-7962 CONTROLLER, PROPEL [AC, 36V, 275A] (Tennant Industrial) $2,249.45 1 usually ships 5-16 days
26 999-0412 Washer #8 SAE flat $0.99 4 ships same day
27 175-5310 Screw 4 x 45/64 x 16 pan head $3.96 4 usually ships 1-5 days
28 175-4544 Washer M6 locking $4.09 5 ships same day
29 999-0016 Washer 1/4 flat plain finish $0.99 5 ships same day
30 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish $0.99 5 ships same day
31 375-3160 Cable tie (Tennant Industrial) $9.17 1 usually ships 5-16 days
