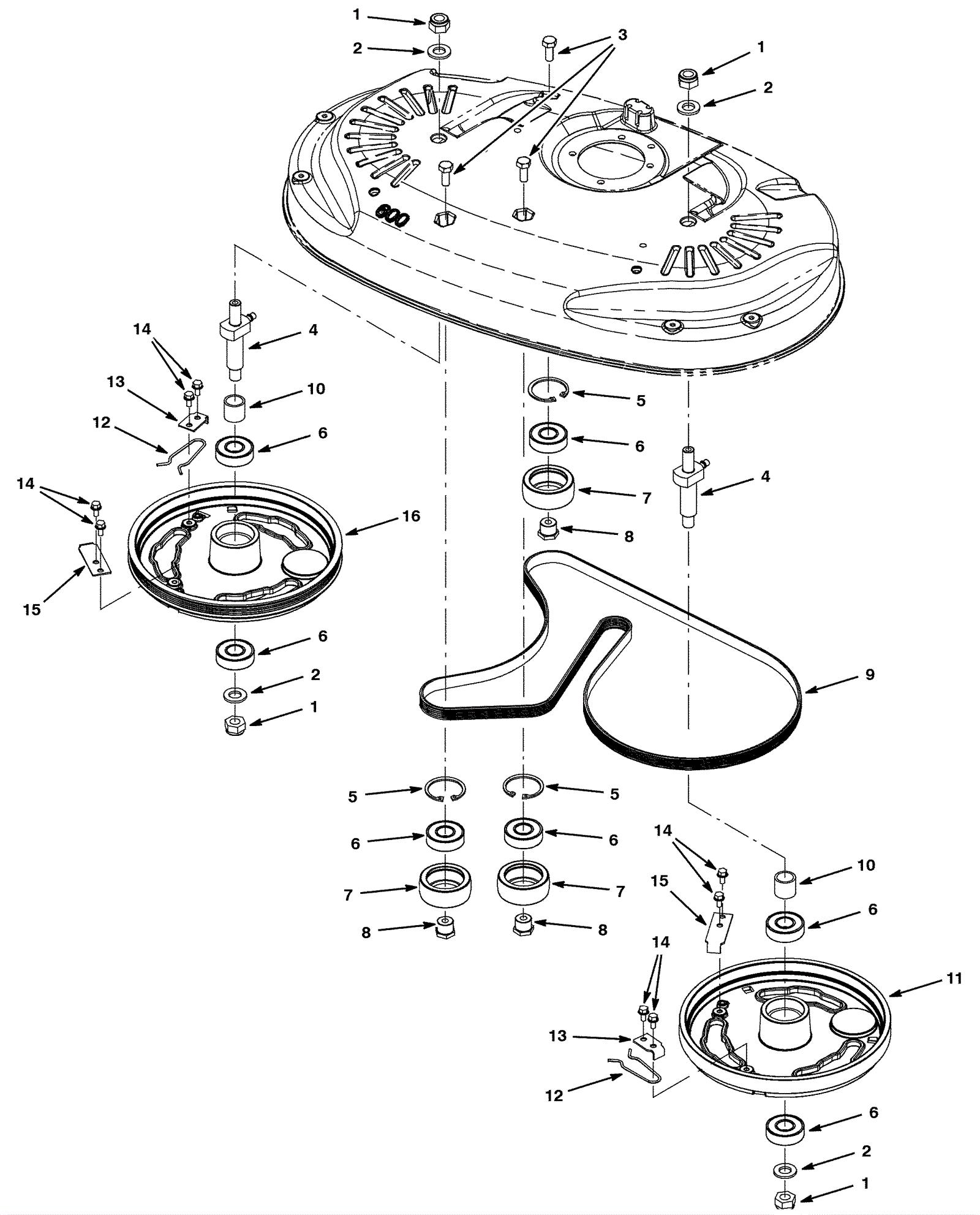

SS3 Scrub Head Assembly - Dual Disk - Lower

#PartDescriptionPriceReqNotesAvailability
1 999-0519 Nut M12-1.75 nylon insert lock stainless steel $2.12 4 ships same day
2 175-5407 Washer M12 flat stainless steel $2.90 4 usually ships 5-16 days
3 999-0499 Bolt M8-1.25 x 20mm hex head full thread stainless steel $1.85 3 ships same day
4 275-9913 Pulley mounting shaft weldment $164.30 2 ships same day
5 275-9914 Retaining ring $21.10 3 usually ships 5-16 days
6a 375-0036 Ball bearing $18.90 7 (before SN 80000001) ships same day
6b 175-0957 Brush bearing $11.80 7 (after SN 79999999) usually ships 5-16 days
7 275-9915 Idler pulley $61.10 3 usually ships 5-16 days
8 275-9916 Spacer $10.90 3 usually ships 5-16 days
9 275-9917 Drive belt $110.70 1 usually ships 5-16 days
10 275-9918 Tube $5.70 2 usually ships 5-16 days
11 275-9919 Drive hub $55.70 1 usually ships 5-16 days
12 175-7924 Spring clip $6.00 2 ships same day
13 275-9920 Release stop $16.40 2 usually ships 5-16 days
14 999-1228 Screw M5-.8 x 10mm hex head stainless steel $0.99 8 ships same day
15 175-7921 Brush plate clamp $18.90 2 ships same day
16 275-9921 Drive hub $48.46 1 ships same day
