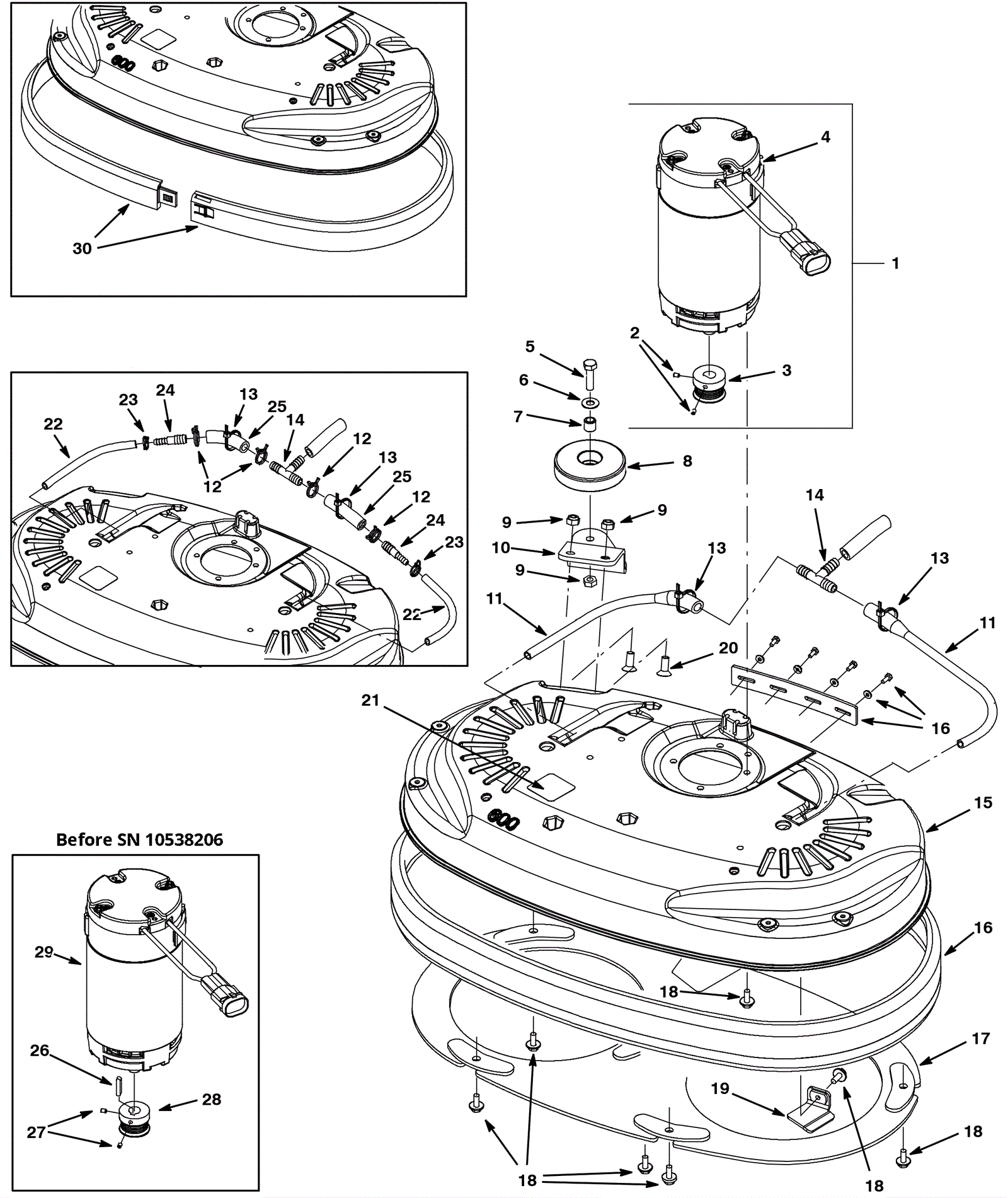

SS3 Scrub Head Assembly - Dual Disk - Upper

#PartDescriptionPriceReqNotesAvailability
1 275-6612 Motor kit $1,167.98 1 (includes 2-4a) (after SN 10538205) usually ships 10-16 days
2 275-9911 Screw M5-.8 x 8 set stainless steel $4.88 2 usually ships 10-16 days
3 275-9905 Sheave $57.20 1 (after SN 10538205) usually ships 10-16 days
4a 275-9903 24V brush motor $1,241.79 1 (includes 4b) (after SN 10538205) usually ships 10-16 days
4b 275-9904 Carbon brush (pkg of 4) $87.34 1 usually ships 10-16 days
5 999-0785 Screw M8-1.25 x 30mm hex head stainless steel $2.09 1 ships same day
6 999-0024 Washer 5/16 flat stainless steel $1.34 1 ships same day
7 175-2249 Sleeve $3.83 1 ships same day
8 175-7919 Guide wheel $5.50 1 ships same day
9 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.34 3 ships same day
10 275-9906 Bracket $30.91 1 usually ships 10-16 days
11 275-9907 Solution hose $13.31 2 usually ships 10-16 days
12 175-3671 Hose clamp $4.88 4 usually ships 10-16 days
13 175-7795 Cable tie $4.75 2 ships same day
14 175-1615 Tee fitting $6.82 1 usually ships 10-16 days
15 275-9909 Scrub deck $273.79 1 usually ships 1-5 days
16 275-1466 24 inch (600mm) bumper skirt assembly $285.56 1 usually ships 10-16 days
17 275-9910 Splash guard bracket $219.23 1 usually ships 10-16 days
18 999-1383 Screw M6-1 x 16mm hex head stainless steel $3.96 10 ships same day
19 275-9908 Guide belt bracket $30.80 1 usually ships 1-5 days
20 999-1324 Screw M8-1.25 x 20mm flat head stainless steel $0.99 2 ships same day
21 175-1238 Moving parts decal $5.50 1 usually ships 10-16 days
22 N/A Not available Call for price 2 (hose) (replaced by 11) usually ships 3-26 days
23 375-9134 Clamp $42.90 2 usually ships 10-16 days
24 275-4947 Plastic fitting $3.04 2 usually ships 10-16 days
25 N/A Not available Call for price 2 (hose) (replaced by 11) usually ships 3-26 days
26 275-1468 Square keyway $4.88 1 (before SN 10538206) usually ships 10-16 days
27 275-9911 Screw M5-.8 x 8 set stainless steel $4.88 2 usually ships 10-16 days
28 275-9912 Sheave $43.23 1 (before SN 10538206) usually ships 1-5 days
29 N/A Not available Call for price 1 (motor) (replaced by 1) (before SN 10538206) usually ships 3-26 days
30 N/A Not available Call for price 1 (bumper skirt) (replaced by 16) usually ships 3-26 days
