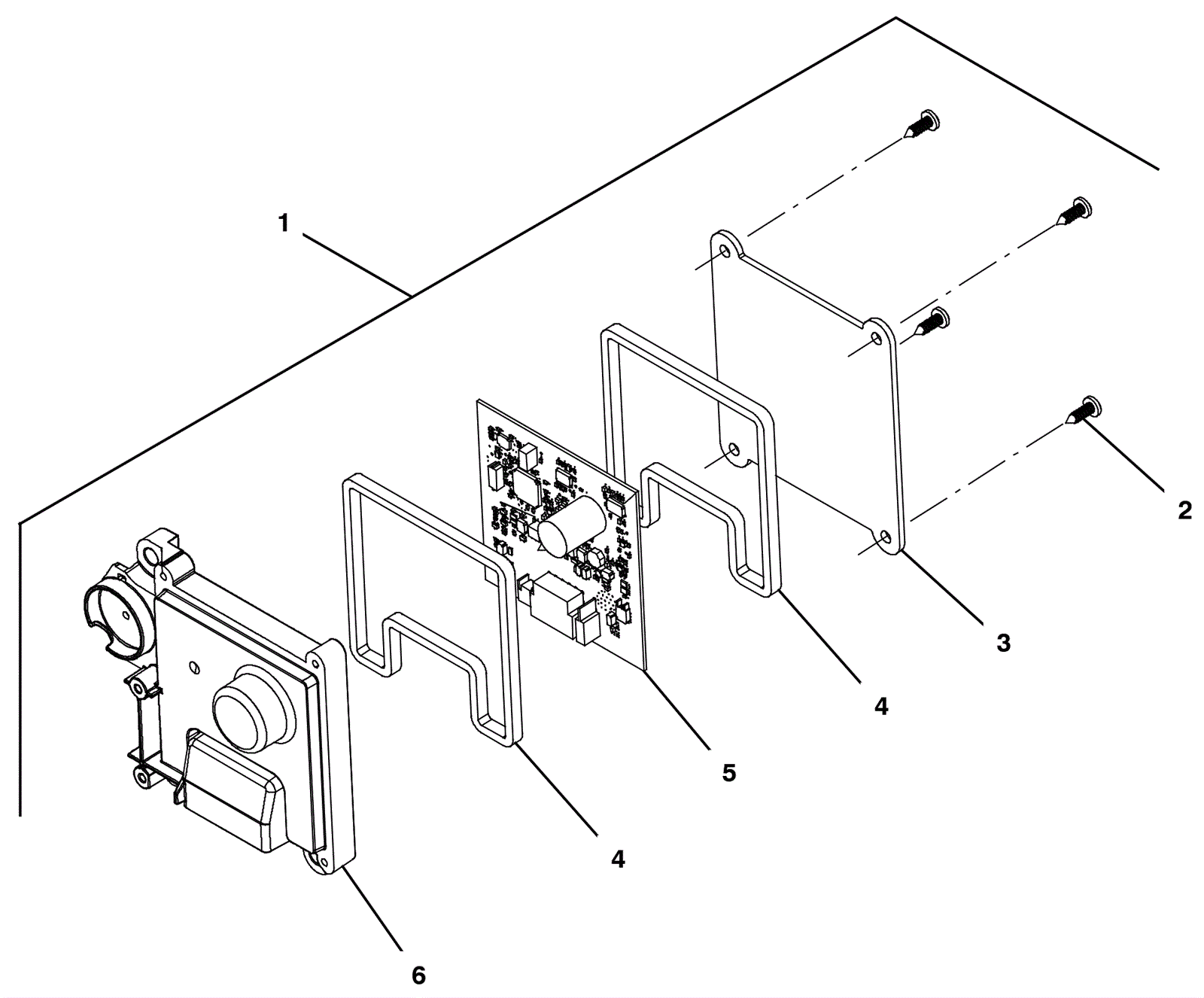

| # | Part | Description |
Req | Notes | Availability |
|---|
2 |
999-0531
|
Screw M5-.8 x 16mm pan head slotted zinc |
4 |
|
|
3 |
475-1116
|
PANEL, MTG, FILL, AUTO, BATTERY |
1 |
|
|
4 |
475-0122
|
SEAL, COVER, BOARD, BATTERY WATERING |
2 |
|
|
5 |
475-2353
|
CIRCUITBOARD ASSY [ABW MODULE] |
1 |
|
|
6 |
475-1093
|
COVER, CIRCUITBOARD, BATTERY WATERING |
1 |
|
|
