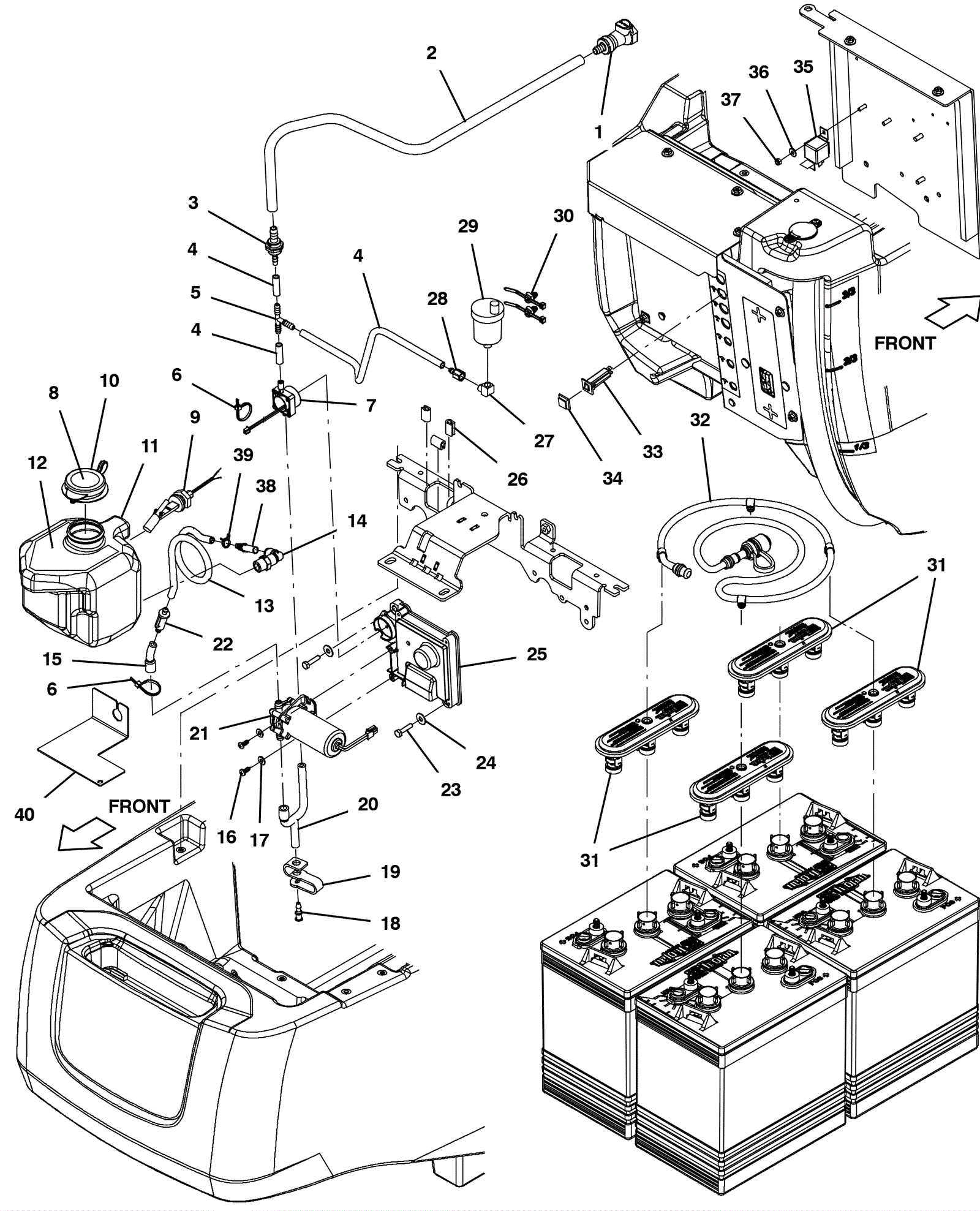

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
375-3437
|
Plastic fitting |
1 |
|
|
2 |
275-1748
|
HOSE, PVC, CLR, 0.38ID 0.56OD 027.0L |
1 |
|
|
3 |
375-3438
|
Check valve |
1 |
|
|
4 |
175-5305
|
Hose 1/4 x 3 foot |
1 |
|
|
5 |
175-7303
|
1/4 inch union tee |
1 |
|
|
6 |
175-7795
|
Cable tie |
2 |
|
|
7 |
375-3439
|
Hall flow sensor |
1 |
|
|
8 |
375-3440
|
Automated battery watering decal |
1 |
|
|
9 |
375-0163
|
Liquid level sensor |
1 |
|
|
10 |
375-3342
|
Snap cap (blue) |
1 |
|
|
12 |
375-3441
|
Warning decal |
1 |
|
|
13 |
175-5305
|
Hose 1/4 x 3 foot |
1 |
|
|
14 |
375-0154
|
90 degree elbow |
1 |
|
|
15 |
375-3442
|
Molded hose |
1 |
|
|
16 |
999-0531
|
Screw M5-.8 x 16mm pan head slotted zinc |
2 |
|
|
17 |
999-0998
|
Washer #10 flat stainless steel |
2 |
|
|
18 |
375-3443
|
Plastic cap fitting |
1 |
|
|
19 |
375-3444
|
Retaining cap strap |
1 |
|
|
20 |
375-3445
|
Molded hose |
1 |
|
|
21 |
375-3446
|
Battery fill pump |
1 |
|
|
22 |
375-3449
|
In-line filter |
1 |
|
|
23 |
999-1087
|
Bolt M6-1 x 25mm hex head stainless steel |
2 |
|
|
24 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
2 |
|
|
26 |
275-8203
|
Molding |
1 |
|
|
27 |
175-1661
|
90 degree elbow fitting |
1 |
|
|
28 |
275-9196
|
Straight brass fitting |
1 |
|
|
29 |
175-7941
|
Air vent valve |
1 |
|
|
30 |
275-5197
|
Fir tree clip |
2 |
|
|
31 |
375-0001
|
Battery fill cap |
4 |
|
|
32 |
375-3448
|
24V battery water tube |
1 |
|
|
33 |
275-9986
|
10amp circuit breaker (Tennant Industrial) |
1 |
|
|
34 |
275-2596
|
Circuit breaker boot (Tennant Industrial) |
1 |
|
|
35 |
375-3233
|
24V relay |
1 |
|
|
36 |
999-0998
|
Washer #10 flat stainless steel |
1 |
|
|
37 |
999-0740
|
Nut M5-.8 hex stainless steel |
1 |
|
|
38 |
375-1138
|
Plastic fitting |
1 |
|
|
39 |
175-5304
|
Hose clamp |
1 |
|
|
40 |
375-9009
|
Sheild plate |
1 |
|
|
