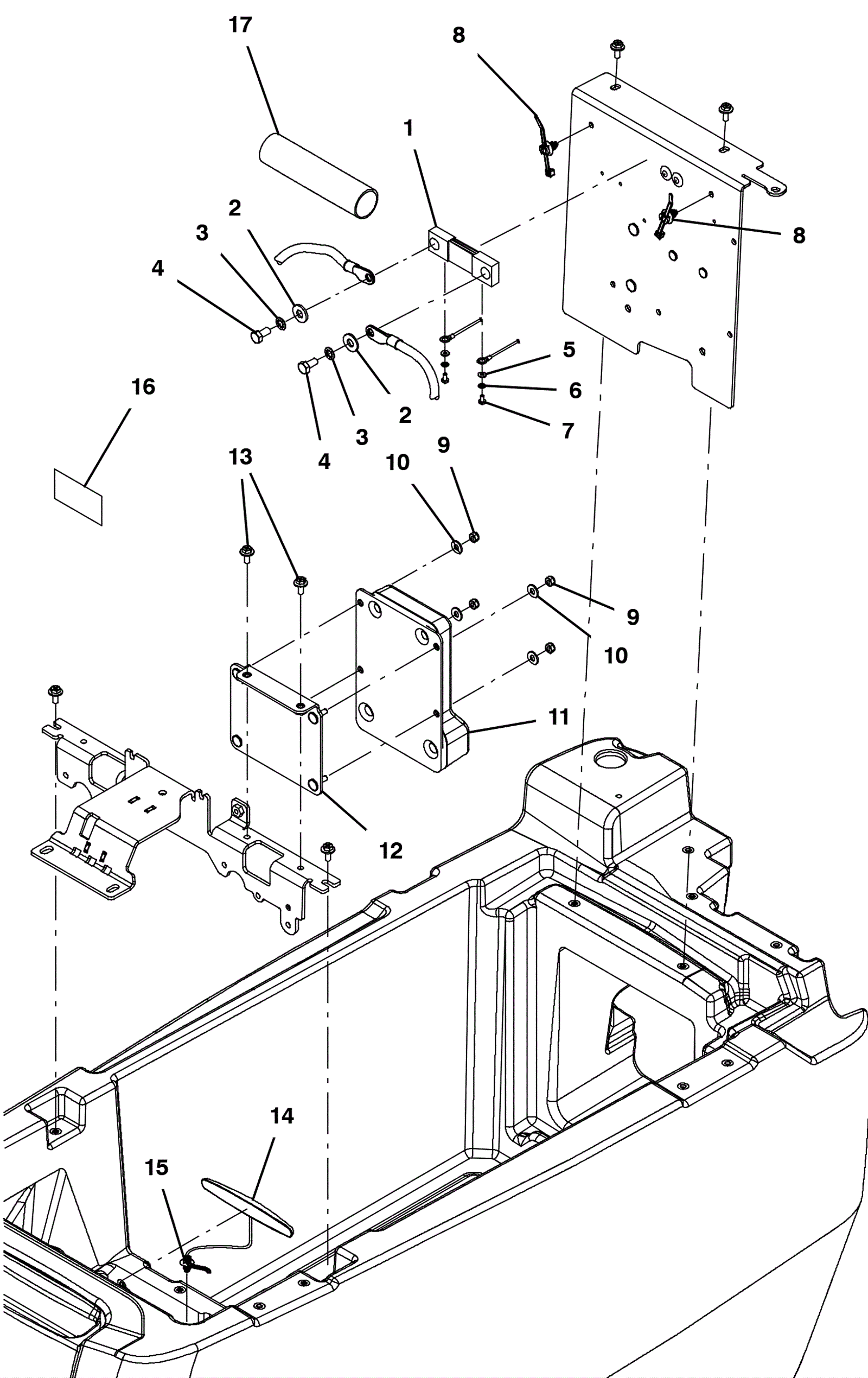

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
375-1151
|
Shunt |
1 |
|
|
2 |
999-0355
|
Washer 3/8 x 7/8 SAE flat stainless steel |
2 |
|
|
3 |
999-1053
|
Washer 5/16 internal star lock stainless steel |
2 |
|
|
4 |
999-0784
|
Screw M8-1.25 x 16mm hex head stainless steel |
2 |
|
|
5 |
999-1158
|
Washer #6 flat stainless steel |
2 |
|
|
6 |
999-1083
|
Washer #8 internal star lock stainless steel |
2 |
|
|
7 |
175-3370
|
Screw M4-.7 x 8mm pan head stainless steel |
2 |
|
|
8 |
275-5197
|
Fir tree clip |
2 |
|
|
9 |
999-0497
|
Nut M6-1 nylon insert lock stainless steel |
4 |
|
|
10 |
999-0016
|
Washer 1/4 flat plain finish |
4 |
|
|
11 |
275-2615
|
Telemetry control box assembly kit |
1 |
|
|
12 |
475-1721
|
BRACKET WLDT, CONTROL BOX |
1 |
|
|
13 |
999-1383
|
Screw M6-1 x 16mm hex head stainless steel |
2 |
|
|
14 |
375-0171
|
18 inch antenna (Tennant Industrial) |
1 |
|
|
15 |
275-5197
|
Fir tree clip |
1 |
|
|
16 |
275-7899
|
Telemetry decal |
1 |
|
|
17 |
375-1155
|
Heatshrink sleeve |
1 |
|
|
