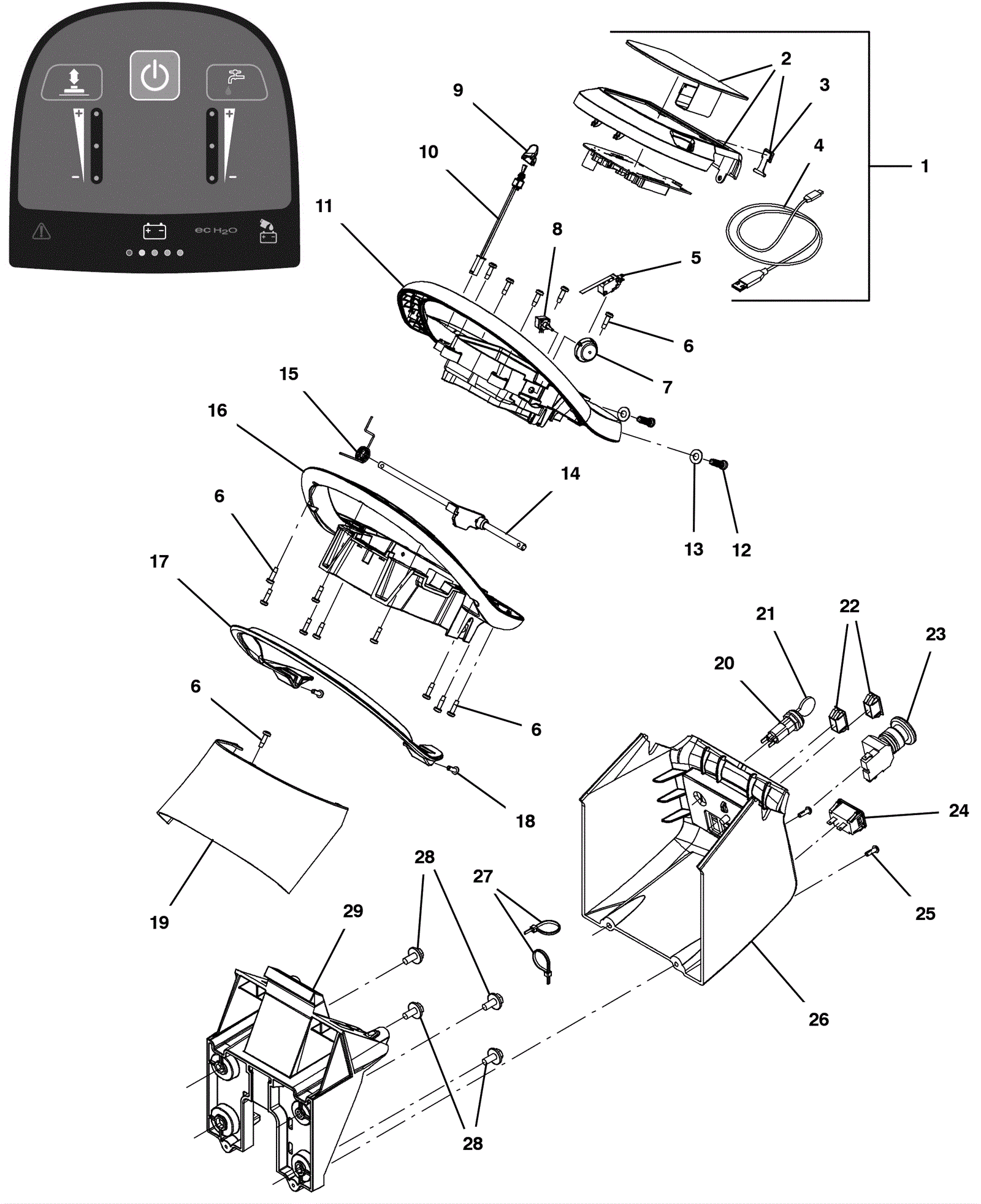

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
375-4598
|
Membrane bezel kit |
1 |
(includes 2-4) |
|
2 |
375-4599
|
Membrane screen kit |
1 |
(inlcudes 3) |
|
3 |
275-5430
|
USB cap |
1 |
|
|
4 |
375-1351
|
USB to USB mini cable |
1 |
|
|
5 |
275-5433
|
Switch |
1 |
|
|
6 |
175-7660
|
Screw #10-14 x .675 shoulder self-tapping |
15 |
|
|
7 |
375-4600
|
Speed range dial |
1 |
|
|
8 |
275-5452
|
Potentiometer |
1 |
|
|
9 |
275-5453
|
Toggle cap |
1 |
|
|
10 |
275-5454
|
Toggle switch assembly |
1 |
|
|
11 |
275-5434
|
Top handle housing |
2 |
|
|
12 |
375-3186
|
Screw |
2 |
|
|
13 |
999-0024
|
Washer 5/16 flat stainless steel |
2 |
|
|
14 |
275-5436
|
Handle shaft assembly |
1 |
|
|
15 |
275-5435
|
Spring |
1 |
|
|
16 |
275-5437
|
Bottom handle housing |
1 |
|
|
17 |
275-5438
|
Bail |
1 |
|
|
18 |
999-1403
|
Screw M8 x 16mm torx head |
2 |
|
|
19 |
275-5439
|
Handle cover |
1 |
|
|
20 |
175-7872
|
Key switch with 2 keys |
1 |
(includes 21) |
|
21 |
991-1634
|
Key (pkg of 2) |
1 |
|
|
22 |
175-2698
|
Switch plug |
2 |
|
|
23 |
275-1416
|
Safety shut-off switch |
1 |
|
|
24 |
275-9900
|
Hour meter |
1 |
|
|
25 |
999-1403
|
Screw M8 x 16mm torx head |
2 |
|
|
26 |
475-1895
|
COVER, CONSOLE, LOWER [T500E] |
1 |
|
|
27 |
175-7795
|
Cable tie |
2 |
|
|
28 |
275-4736
|
Screw M8-1.25 x 20mm hex washer head stainless steel SEMS |
4 |
|
|
29 |
475-1358
|
FRAME, CONSOLE, SHORT, SIMPLIFIED [IM] |
1 |
|
|
N/S |
775-0533
|
Harness kit |
1 |
|
|
