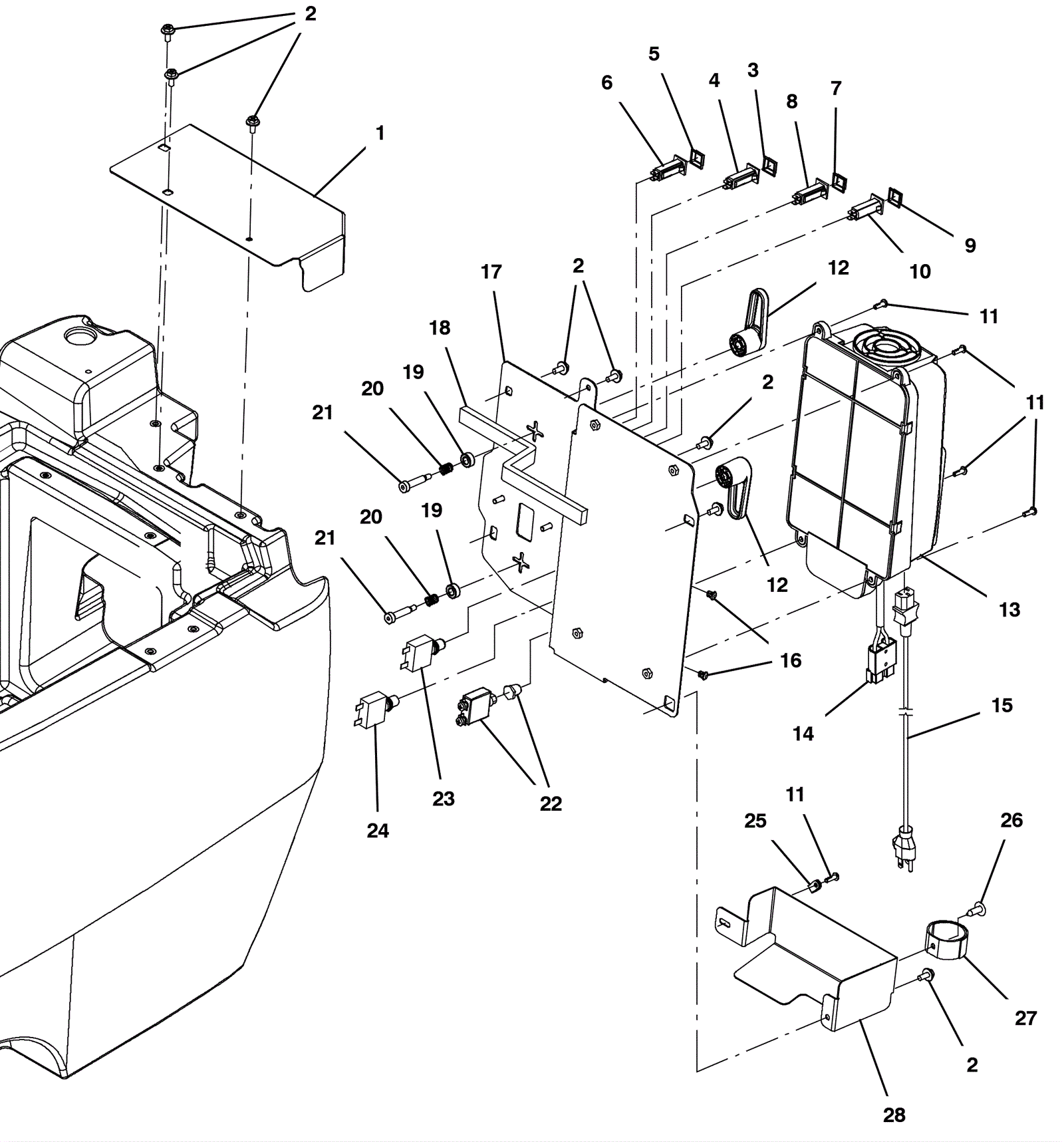

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
475-1546
|
BRACKET, COVER, CHARGER |
1 |
|
|
2 |
999-1383
|
Screw M6-1 x 16mm hex head stainless steel |
8 |
|
|
3 |
275-2596
|
Circuit breaker boot (Tennant Industrial) |
1 |
|
|
4 |
275-9986
|
10amp circuit breaker (Tennant Industrial) |
1 |
|
|
5 |
275-2596
|
Circuit breaker boot (Tennant Industrial) |
1 |
|
|
6 |
375-0170
|
Circuit breaker |
1 |
|
|
7 |
275-2596
|
Circuit breaker boot (Tennant Industrial) |
1 |
|
|
8 |
275-9986
|
10amp circuit breaker (Tennant Industrial) |
1 |
|
|
9 |
275-2596
|
Circuit breaker boot (Tennant Industrial) |
1 |
|
|
10 |
275-7846
|
20amp circuit breaker (Tennant Industrial) |
1 |
|
|
11 |
999-1403
|
Screw M8 x 16mm torx head |
5 |
|
|
12 |
275-5449
|
Cord hook |
2 |
|
|
13 |
375-3264
|
24V 25amp SPE onboard battery charger |
1 |
(includes 14) |
|
14 |
991-9284
|
50amp charger plug SB50 with pins (red) |
1 |
|
|
15 |
275-1585
|
16/3 charger power cord 15 foot (black) |
1 |
|
|
16 |
275-7625
|
Plastic clip |
2 |
|
|
17 |
475-1875
|
BRACKET WLDT, CHARGER |
1 |
|
|
18 |
275-9334
|
SEAL, AFMKT, RBR, CLSD, ADH, 02FT (Tennant Industrial) |
1 |
|
|
19 |
275-8103
|
Sleeve bushing |
2 |
|
|
20 |
175-7507
|
Compression spring |
2 |
|
|
21 |
775-0390
|
Bolt M6-.8 x 30mm shield |
2 |
|
|
22 |
375-3232
|
60amp circuit breaker |
1 |
|
|
23 |
991-1631
|
25amp circuit breaker |
1 |
|
|
24 |
991-1631
|
25amp circuit breaker |
1 |
|
|
25 |
275-5443
|
P clamp |
1 |
|
|
26 |
991-5122
|
1/4 nylon tree push-in rivet |
1 |
|
|
27 |
275-7799
|
Fastener |
1 |
|
|
28 |
475-1579
|
BRACKET, COVER, CHARGER CABLES |
1 |
|
|
