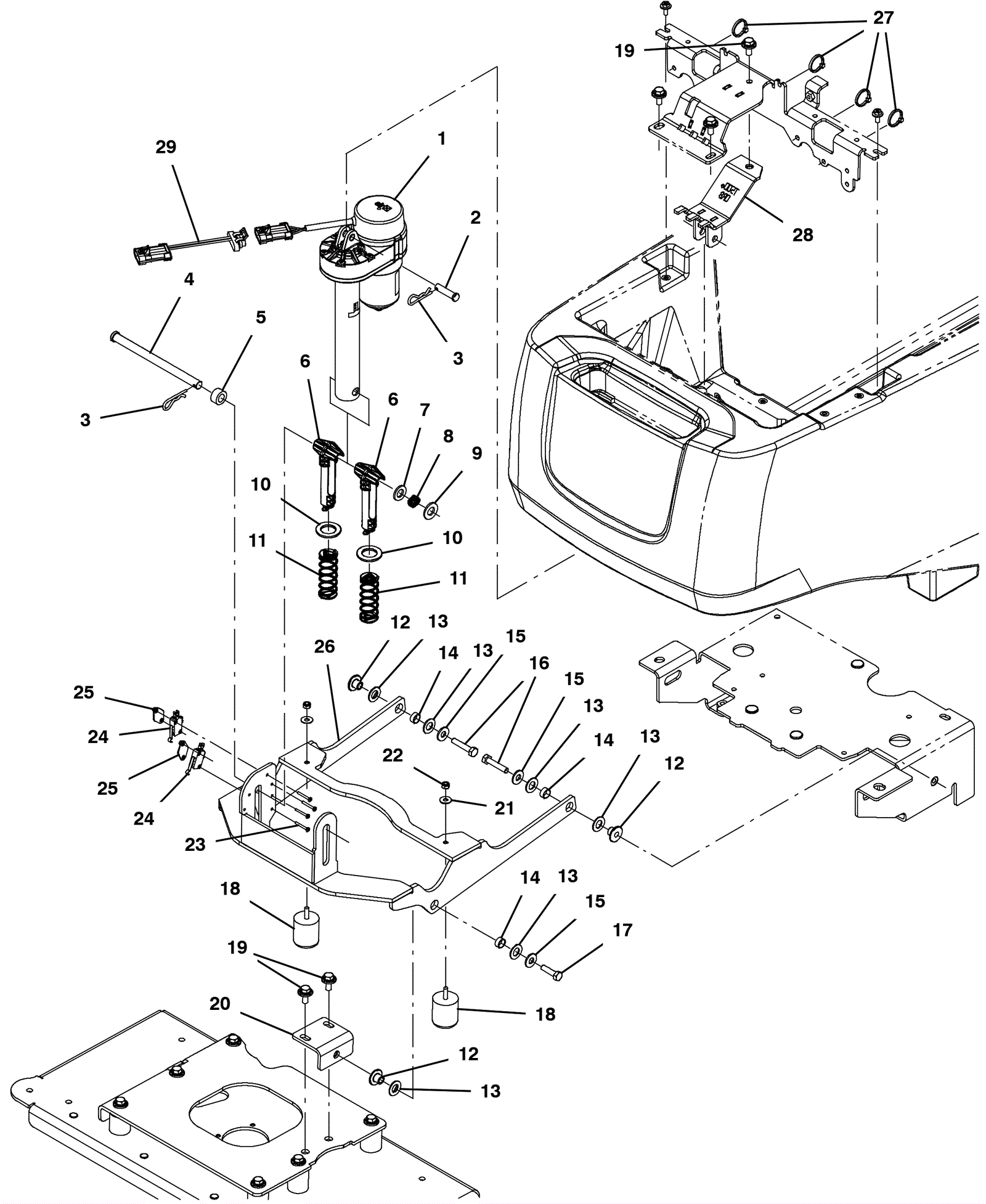

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
475-2570
|
24V actuator |
1 |
(includes 2-4) |
|
2 |
175-2111
|
Clevis pin |
1 |
|
|
3 |
175-4331
|
Cotter hair pin |
1 |
(includes 4) |
|
4 |
375-3255
|
Clevis pin |
1 |
|
|
5 |
375-3256
|
Spacer |
1 |
|
|
6 |
375-3257
|
Scrubhead guide spring pin |
2 |
|
|
7 |
999-9214
|
Washer M8 flat nylon |
1 |
|
|
8 |
375-3258
|
Wave spring |
1 |
|
|
9 |
999-0114
|
Washer 1/2 SAE flat |
1 |
|
|
10 |
375-3259
|
Thrust washer |
2 |
|
|
11 |
375-3260
|
Spring |
2 |
|
|
12 |
275-7716
|
Flanged sleeve (Tennant Industrial) |
3 |
|
|
13 |
999-0566
|
Washer 1/2 flat nylon |
6 |
|
|
14 |
175-4720
|
Bearing |
3 |
|
|
15 |
999-0355
|
Washer 3/8 x 7/8 SAE flat stainless steel |
3 |
|
|
16 |
999-0787
|
Bolt M8-1.25 x 40mm hex head full thread stainless steel |
2 |
|
|
17 |
999-0770
|
Screw M8-1.25 x 30mm flat head socket stainless steel |
1 |
|
|
18 |
375-0102
|
Neoprene isolator |
2 |
|
|
19 |
275-4736
|
Screw M8-1.25 x 20mm hex washer head stainless steel SEMS |
3 |
|
|
20 |
375-3261
|
Lift weldment bracket |
1 |
|
|
21 |
999-0355
|
Washer 3/8 x 7/8 SAE flat stainless steel |
2 |
|
|
22 |
999-0496
|
Nut M8-1.25 nylon insert lock stainless steel |
2 |
|
|
23 |
999-1221
|
Screw M3-.5 x 25mm pan head stainless steel |
6 |
|
|
24 |
375-0226
|
Mircroswitch |
2 |
|
|
25 |
175-7839
|
Switch plate |
2 |
|
|
26 |
375-4587
|
Lift arm weldment |
1 |
|
|
27 |
175-2202
|
Nylon wire tie |
5 |
|
|
28 |
475-1745
|
BRACKET WLDT, MOUNT, ACTUATOR[T500e] |
1 |
|
|
29 |
375-9004
|
Delphi adaptor harness |
1 |
(SN after 10959722) |
|
