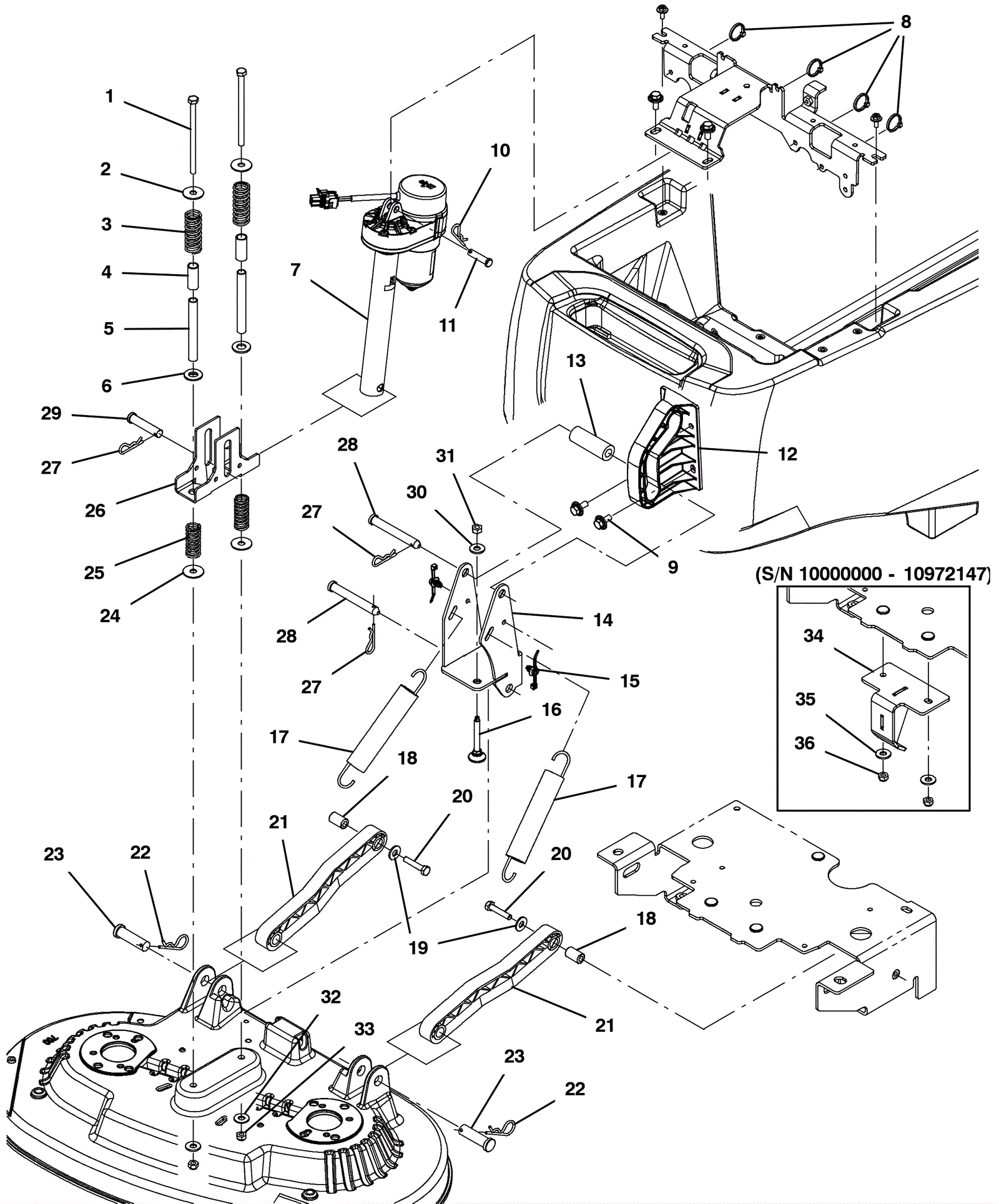

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
275-8726
|
SCREW, HEX, M8 X 1.25 X 130, SS (Tennant Industrial) |
2 |
|
|
2 |
175-2298
|
Washer .38 x .06 stainless steel |
2 |
|
|
3 |
175-2199
|
Compression spring |
2 |
|
|
4 |
375-3244
|
Pm sleeve |
2 |
|
|
5 |
375-3245
|
Sleeve |
2 |
|
|
6 |
999-0114
|
Washer 1/2 SAE flat |
2 |
|
|
7 |
475-2570
|
24V actuator |
1 |
|
|
8 |
175-2202
|
Nylon wire tie |
5 |
|
|
9 |
275-4736
|
Screw M8-1.25 x 20mm hex washer head stainless steel SEMS |
4 |
|
|
10 |
175-4331
|
Cotter hair pin |
1 |
|
|
11 |
175-2111
|
Clevis pin |
1 |
|
|
12 |
375-3248
|
Guide bracket |
1 |
|
|
13 |
375-3249
|
Plastic tube |
1 |
|
|
14 |
375-3250
|
Scrubhead pivot weldment |
1 |
|
|
15 |
275-5197
|
Fir tree clip |
2 |
|
|
16 |
375-3251
|
Leveler screw |
1 |
|
|
17 |
175-2234
|
Extension spring |
2 |
|
|
18 |
175-4343
|
1 inch tube |
2 |
|
|
19 |
999-0355
|
Washer 3/8 x 7/8 SAE flat stainless steel |
2 |
|
|
20 |
999-0787
|
Bolt M8-1.25 x 40mm hex head full thread stainless steel |
2 |
|
|
21 |
175-2102
|
Scrub head lifting arm |
2 |
|
|
22 |
175-2106
|
Cotter hair pin |
2 |
|
|
23 |
175-2105
|
Clevis pin |
2 |
|
|
24 |
175-2298
|
Washer .38 x .06 stainless steel |
2 |
|
|
25 |
175-2443
|
2 1/2 inch compression spring |
2 |
|
|
26 |
375-3253
|
Suspension head spring bracket |
1 |
|
|
27 |
175-4331
|
Cotter hair pin |
3 |
|
|
28 |
175-4960
|
Clevis pin |
2 |
|
|
29 |
175-9603
|
Clevis pin |
1 |
|
|
30 |
999-0355
|
Washer 3/8 x 7/8 SAE flat stainless steel |
1 |
|
|
31 |
999-1424
|
Nut M8-1.25 hex stainless steel |
1 |
|
|
32 |
999-0355
|
Washer 3/8 x 7/8 SAE flat stainless steel |
2 |
|
|
33 |
999-0496
|
Nut M8-1.25 nylon insert lock stainless steel |
2 |
|
|
34 |
375-3254
|
Frame weldment stop |
1 |
|
|
35 |
999-0355
|
Washer 3/8 x 7/8 SAE flat stainless steel |
2 |
(SN before 10972148) |
|
36 |
999-0496
|
Nut M8-1.25 nylon insert lock stainless steel |
2 |
(SN before 10972148) |
|
