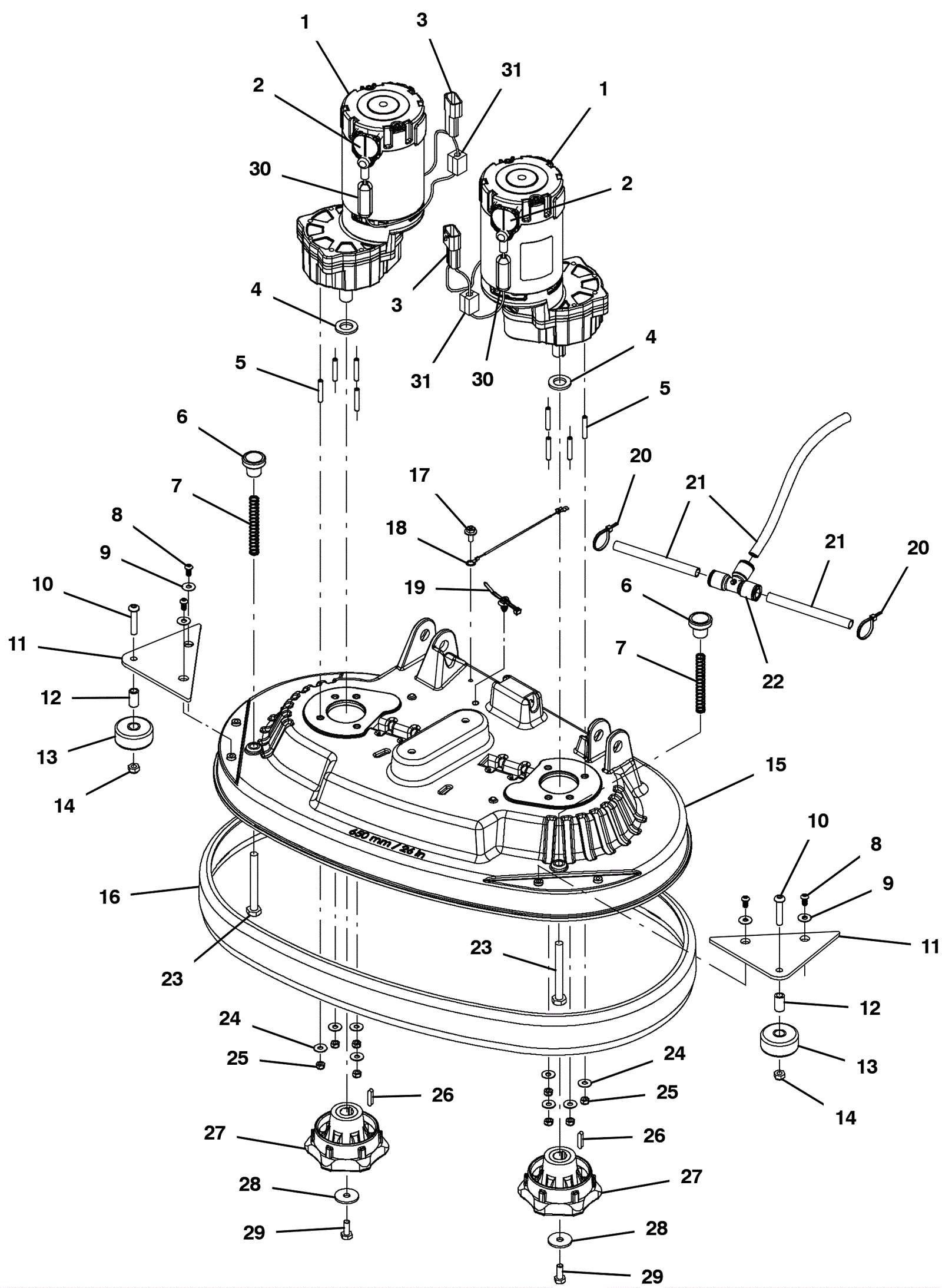

Scrub Head Assembly- Disk

#PartDescription ReqNotesAvailability
1 275-1457 24V brush motor assembly with gearbox 2 (includes 2 and 3)
2 275-1458 Carbon brush (pkg of 2) 1
3 275-1459 Brush motor connector harness 1
4 275-1469 Shaft spacer 2
5 275-1465 Screw M6-1 x 35 mm set nylock stainless steel 8
6 375-3139 Plastic round knob 2
7 175-7018 Compression spring 2
8 375-3140 Screw M6-1 x 12mm truss head phillips stainless steel 4
9 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 4
10 999-0769 Screw M8-1.25 x 40mm button head socket stainless steel 2
11 375-3141 Roller bracket 2
12 175-2182 Sleeve 2
13 175-2245 Wheel 2
14 999-0496 Nut M8-1.25 nylon insert lock stainless steel 2
15a 375-3142 26 inch (600mm) housing 1
15b 375-3145 28 inch (700mm) housing 1
15c 475-3946 HOUSING, DISC, DUAL, 80CM [MACHINED] 1
16a 475-3755 26 inch bumper head skirt 1
16b 375-3146 28 inch (700mm) bumper 1
16c 375-3148 32 inch (800mm) bumper 1
17 999-1383 Screw M6-1 x 16mm hex head stainless steel 1
18 375-0108 Electrical harness 1
19 275-5197 Fir tree clip 1
20 175-7795 Cable tie 2
21a 375-0204 5 foot solution hose 1 (OEM)
21b 991-1405 Vinyl tubing 1/2 x 3/4 (sold by the inch) 1 (NON-OEM)(order qty 60 inches)
22 375-3144 Plastic tee fitting 1
23 999-1408 Screw M10-1.5 x 90mm hex head stainless steel 2
24 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 8
25 999-0497 Nut M6-1 nylon insert lock stainless steel 8
26 275-1468 Square keyway 2
27 275-1477 Brush drive hub (disk) 2
28 175-7920 Washer M8 flat stainless steel 2
29 999-0499 Bolt M8-1.25 x 20mm hex head full thread stainless steel 2
30 375-4507 Split case inductor 4
31 375-4508 Inductor 2
