| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
675-9533
|
Harness (battery to UI) |
1 |
|
|
2 |
375-4076
|
USB cable |
1 |
|
|
3 |
675-9532
|
Harness (ui power) |
1 |
(includes 4)
(includes 4) |
|
4 |
275-7904
|
Fuse (Tennant Industrial) |
1 |
|
|
5 |
775-0527
|
Cable assembly |
1 |
(includes 6) |
|
6 |
991-2112
|
175amp charger plug with pins (gray) SB175 |
1 |
|
|
7 |
675-9521
|
Cable (red) |
3 |
|
|
8 |
175-9591
|
Battery cable (black) |
3 |
|
|
9 |
675-9523
|
8 postion male to male cable assembly |
3 |
|
|
10 |
675-9524
|
Resistor plug |
1 |
|
|
11 |
175-6887
|
Boot (red) |
4 |
|
|
12 |
175-6885
|
Boot (black) |
4 |
|
|
13 |
275-5197
|
Fir tree clip |
2 |
|
|
14 |
275-2711
|
175amp cable assembly (Tennant Industrial) |
1 |
(includes 15) |
|
15 |
991-2112
|
175amp charger plug with pins (gray) SB175 |
1 |
|
|
16 |
999-0780
|
Screw M6-1 x 40mm hex head |
2 |
|
|
17 |
999-0016
|
Washer 1/4 flat plain finish |
4 |
|
|
18 |
999-0469
|
Nut M6-1 nylon insert lock zinc plated |
2 |
|
|
19 |
675-9528
|
Harness |
1 |
|
|
20 |
675-9534
|
Harness adaptor kit |
1 |
|
|
21 |
375-3863
|
Cable tie (Tennant Industrial) |
1 |
|
|
22 |
775-0528
|
Clamp inductor |
1 |
|
|
23 |
775-0529
|
Battery hazard decal |
1 |
|
|
24 |
275-0126
|
TIE, CABLE, 6.0L, 1.25D MAX (Tennant Industrial) |
8 |
|
|

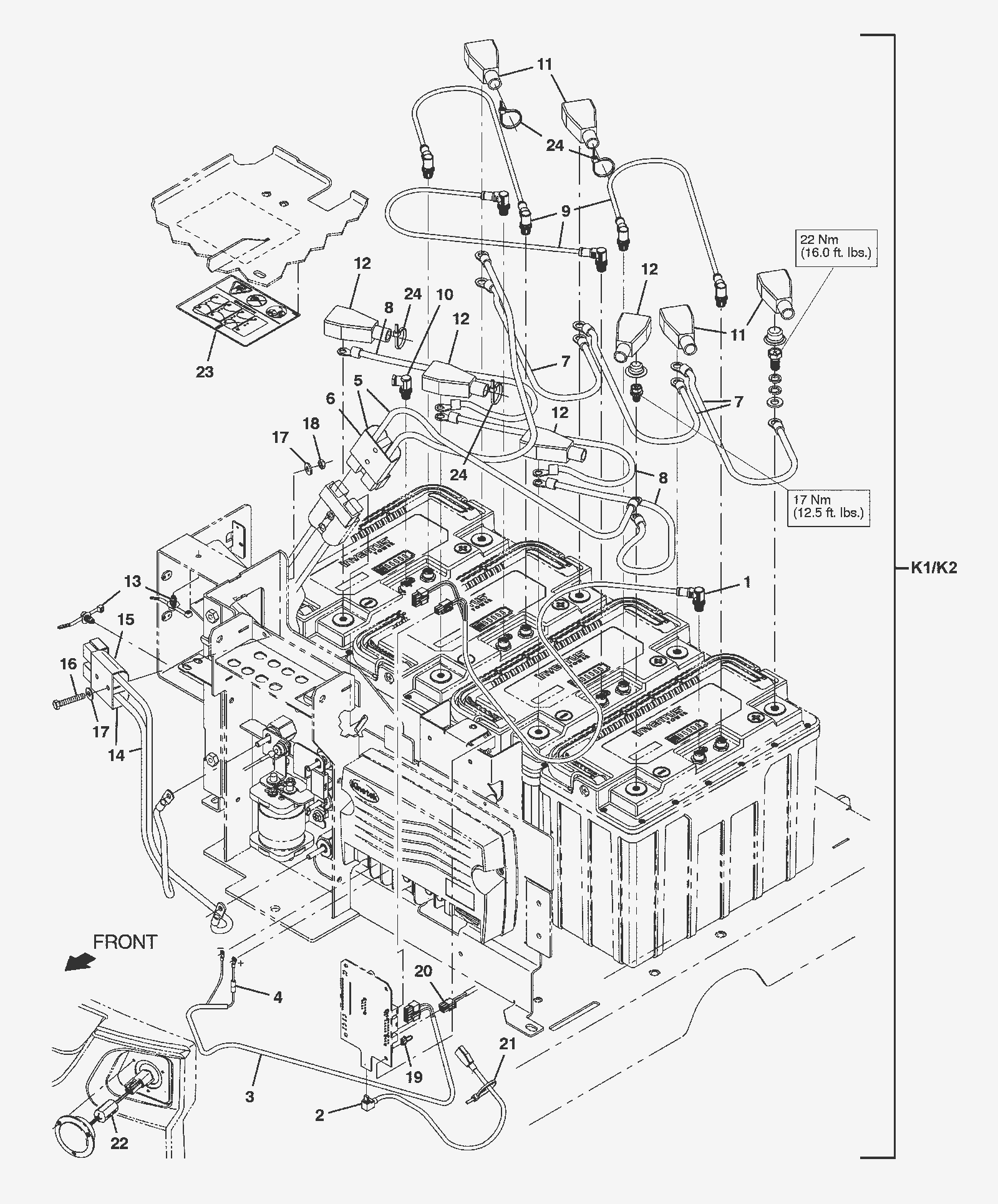

K1 |
775-0525
|
33amp lithium-ion battery kit |
1 |
(includes 1-24 and all parts in Battery Group diagram) Requires Tennant True service or an authorized Tennant service provider. |
|
K2 |
775-0526
|
90amp charger lithium-ion battery kit |
1 |
(includes 1-24 and all parts in Battery Group diagram) Requires Tennant True service or an authorized Tennant service provider. |
|
