| # | Part | Description |
Req | Notes | Availability |
|---|

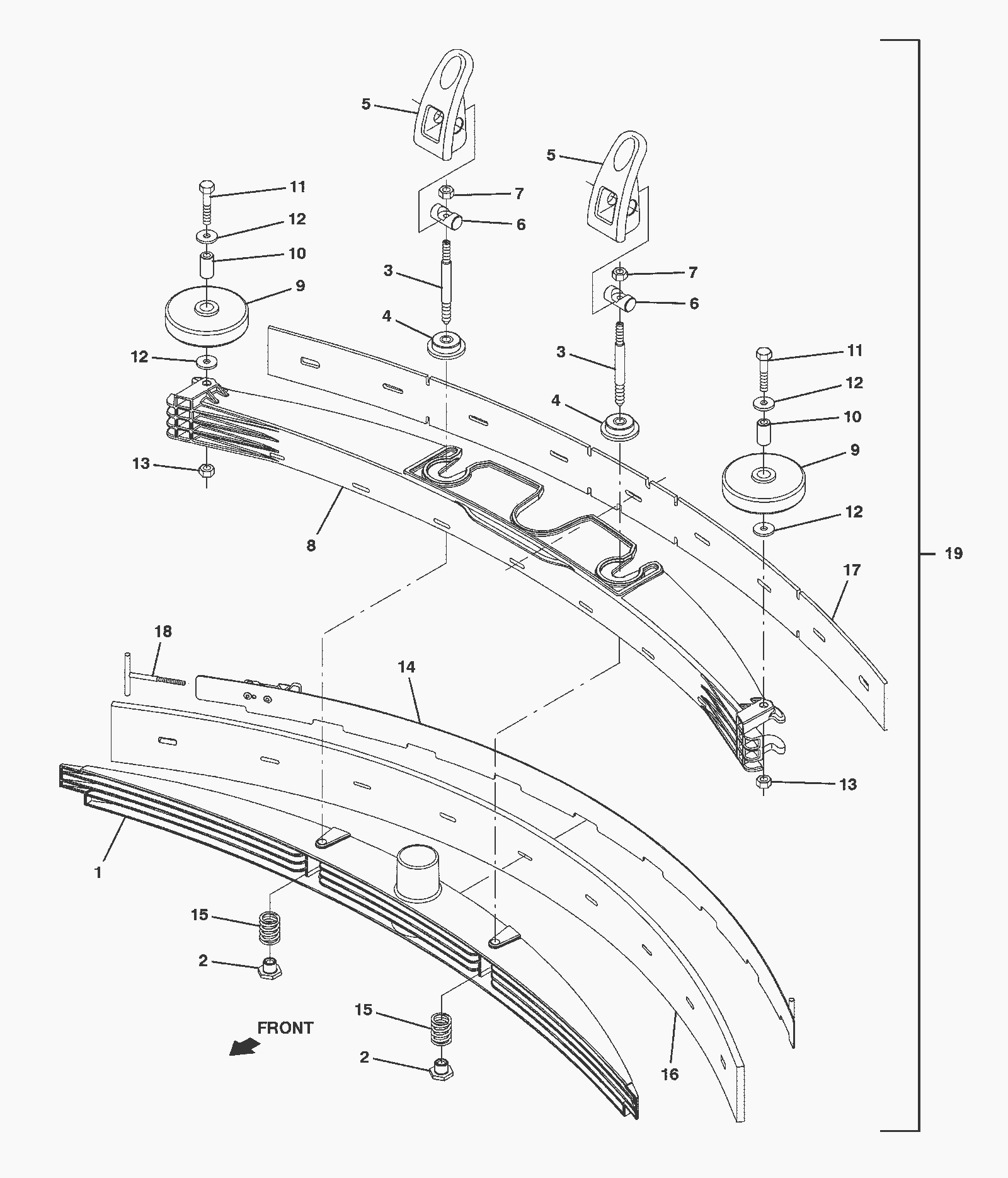

19a |
675-6789
|
SQUEEGEE ASSY, REAR, linatex [T16] (Tennant Industrial) |
1 |
(includes 1a-18a) |
|
1a |
275-5502
|
Inner squeegee frame (Tennant Industrial) |
1 |
|
|
2a |
175-3352
|
T-nut M10-1.5mm |
2 |
|
|
3a |
275-7726
|
Rod (Tennant Industrial) |
2 |
|
|
4a |
275-7727
|
Squeegee mounting ring (Tennant Industrial) |
2 |
|
|
5a |
275-7724
|
Lock grip (Tennant Industrial) |
2 |
|
|
6a |
275-7725
|
Pin with screw M8 (Tennant Industrial) |
2 |
|
|
7a |
999-1424
|
Nut M8-1.25 hex stainless steel |
2 |
|
|
8a |
275-5503
|
Outer squeegee frame (Tennant Industrial) |
1 |
|
|
9a |
275-2208
|
WHEEL, 04.0D 0.89W 0.64B |
2 |
|
|
10a |
275-0855
|
Tube |
2 |
|
|
11a |
999-1297
|
Screw M8 x 50mm hex head stainless steel |
2 |
|
|
12a |
175-7920
|
Washer M8 flat stainless steel |
4 |
|
|
13a |
999-0496
|
Nut M8-1.25 nylon insert lock stainless steel |
2 |
|
|
14a |
275-7300
|
Squeegee retainer clamp (TENNANT INDUSTRIAL) |
1 |
|
|
15a |
275-7728
|
Compression spring (Tennant Industrial) |
2 |
|
|
16a |
275-6502
|
Squeegee blade rear linatex (TENNANT INDUSTRIAL) |
1 |
|
|
17a |
275-7297
|
Squeegee blade 36 inch linatex front (red) (Tennant Industr |
1 |
|
|
18a |
275-7396
|
Latch |
1 |
|
|
19b |
675-7211
|
SQUEEGEE ASSY, REAR, URE [T16] (Tennant Industrial) |
1 |
(includes 1b-18b) |
|
1b |
275-5502
|
Inner squeegee frame (Tennant Industrial) |
1 |
|
|
2b |
175-3352
|
T-nut M10-1.5mm |
2 |
|
|
3b |
275-7726
|
Rod (Tennant Industrial) |
2 |
|
|
4b |
275-7727
|
Squeegee mounting ring (Tennant Industrial) |
2 |
|
|
5b |
275-7724
|
Lock grip (Tennant Industrial) |
2 |
|
|
6b |
275-7725
|
Pin with screw M8 (Tennant Industrial) |
2 |
|
|
7b |
999-1424
|
Nut M8-1.25 hex stainless steel |
2 |
|
|
8b |
275-5503
|
Outer squeegee frame (Tennant Industrial) |
1 |
|
|
9b |
275-2208
|
WHEEL, 04.0D 0.89W 0.64B |
2 |
|
|
10b |
275-0855
|
Tube |
2 |
|
|
11b |
999-1297
|
Screw M8 x 50mm hex head stainless steel |
2 |
|
|
12b |
175-7920
|
Washer M8 flat stainless steel |
4 |
|
|
13b |
999-0496
|
Nut M8-1.25 nylon insert lock stainless steel |
2 |
|
|
14b |
275-7300
|
Squeegee retainer clamp (TENNANT INDUSTRIAL) |
1 |
|
|
15b |
275-7728
|
Compression spring (Tennant Industrial) |
2 |
|
|
16b |
675-9795
|
Squeegee blade urethane rear (Tennant Industrial) |
1 |
|
|
17b |
275-7390
|
BLADE, SQGE, FRONT, 43.19L, PYU (Tennant Industrial) |
1 |
|
|
18b |
275-7396
|
Latch |
1 |
|
|
19c |
675-6776
|
SQUEEGEE ASSY, REAR, GUM [T16] (Tennant Industrial) |
1 |
(includes 1c-18c) |
|
1c |
275-5502
|
Inner squeegee frame (Tennant Industrial) |
1 |
|
|
2c |
175-3352
|
T-nut M10-1.5mm |
2 |
|
|
3c |
275-7726
|
Rod (Tennant Industrial) |
2 |
|
|
4c |
275-7727
|
Squeegee mounting ring (Tennant Industrial) |
2 |
|
|
5c |
275-7724
|
Lock grip (Tennant Industrial) |
2 |
|
|
6c |
275-7725
|
Pin with screw M8 (Tennant Industrial) |
2 |
|
|
7c |
999-1424
|
Nut M8-1.25 hex stainless steel |
2 |
|
|
8c |
275-5503
|
Outer squeegee frame (Tennant Industrial) |
1 |
|
|
9c |
275-2208
|
WHEEL, 04.0D 0.89W 0.64B |
2 |
|
|
10c |
275-0855
|
Tube |
2 |
|
|
11c |
999-1297
|
Screw M8 x 50mm hex head stainless steel |
2 |
|
|
12c |
175-7920
|
Washer M8 flat stainless steel |
4 |
|
|
13c |
999-0496
|
Nut M8-1.25 nylon insert lock stainless steel |
2 |
|
|
14c |
275-7300
|
Squeegee retainer clamp (TENNANT INDUSTRIAL) |
1 |
|
|
15c |
275-7728
|
Compression spring (Tennant Industrial) |
2 |
|
|
16c |
775-0486
|
Squeegee blade gum rubber rear |
1 |
|
|
17c |
275-5508
|
Squeegee blade front gum (Tennant Industrial) |
1 |
|
|
18c |
275-7396
|
Latch |
1 |
|
|
