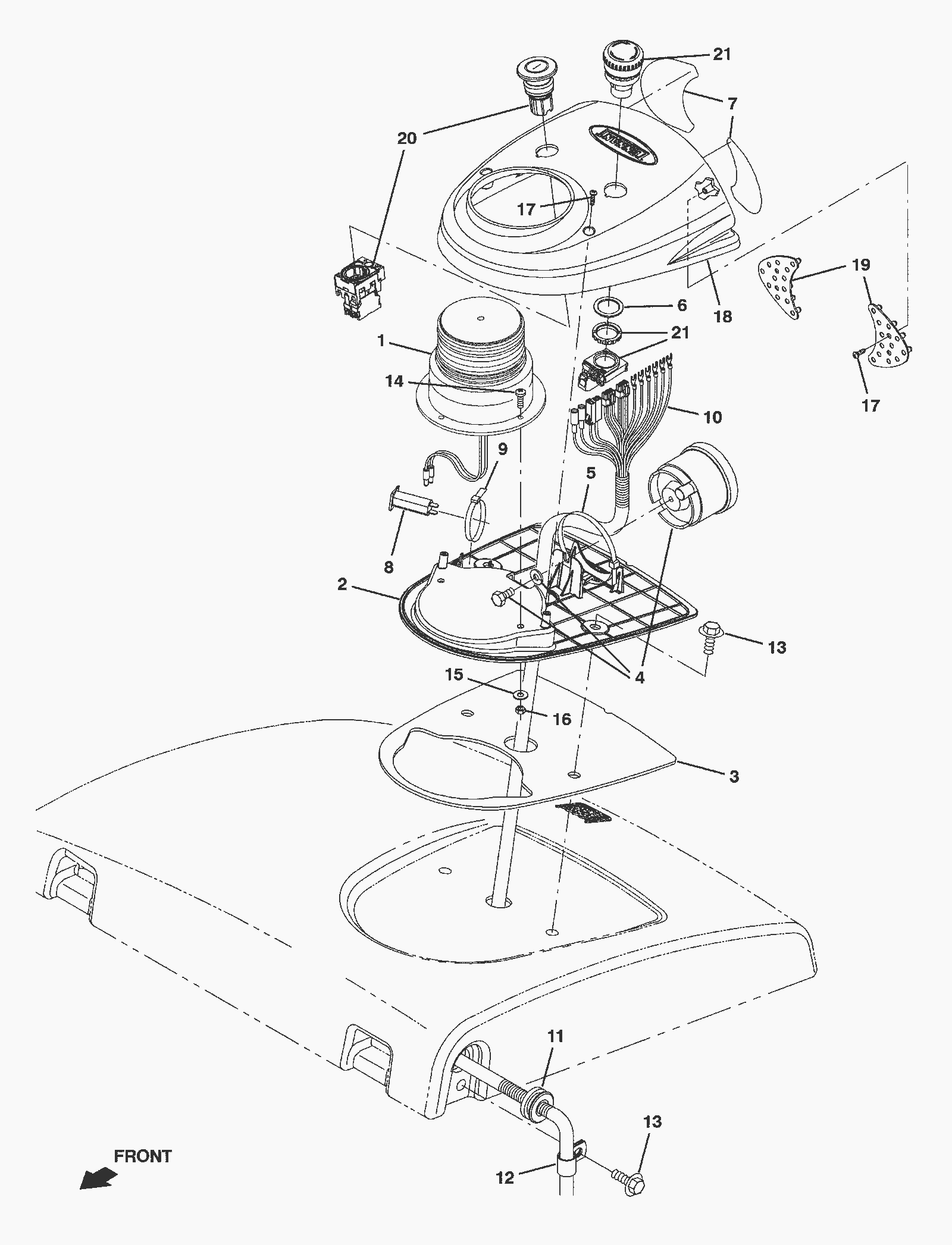

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
275-7765
|
Strobe light |
1 |
|
|
2 |
275-7766
|
Light base (Tennant Industrial) |
1 |
|
|
3 |
275-7767
|
Base gasket |
1 |
|
|
4 |
275-7768
|
Backup alarm (Tennant Industrial) |
1 |
|
|
5 |
375-7695
|
E-stop lock ring |
1 |
|
|
6 |
775-0485
|
Backup LED overlay label (clear) |
2 |
|
|
7 |
999-0016
|
Washer 1/4 flat plain finish |
1 |
|
|
8 |
275-5483
|
2.5amp circuit breaker |
1 |
|
|
9 |
175-2162
|
Nylon wire tie |
1 |
|
|
10 |
775-0483
|
Light module electrical harness |
1 |
|
|
11 |
275-3903
|
GROMMET, RBR, 0.69ID, F/1.0H, .25 MATL (Tennant Industrial) |
1 |
|
|
12 |
175-0559
|
P clamp |
1 |
|
|
13 |
275-4736
|
Screw M8-1.25 x 20mm hex washer head stainless steel SEMS |
3 |
|
|
14 |
999-0901
|
Screw M5-.8 x 16mm pan head phillips stainless steel |
2 |
|
|
15 |
999-0006
|
Washer 3/16 flat zinc plated |
2 |
|
|
16 |
175-2894
|
Nut M5-.8 hex nylon locking |
2 |
|
|
17 |
999-0447
|
Screw 6-32 x 1/2 pan head phillips zinc plated |
6 |
|
|
18 |
775-0484
|
Button light module cover |
1 |
|
|
19 |
275-7771
|
LED light assembly (Tennant Industrial) |
2 |
|
|
20 |
375-7736
|
Start-pause button assembly |
1 |
|
|
21 |
375-7694
|
Emergency stop switch |
1 |
|
|
