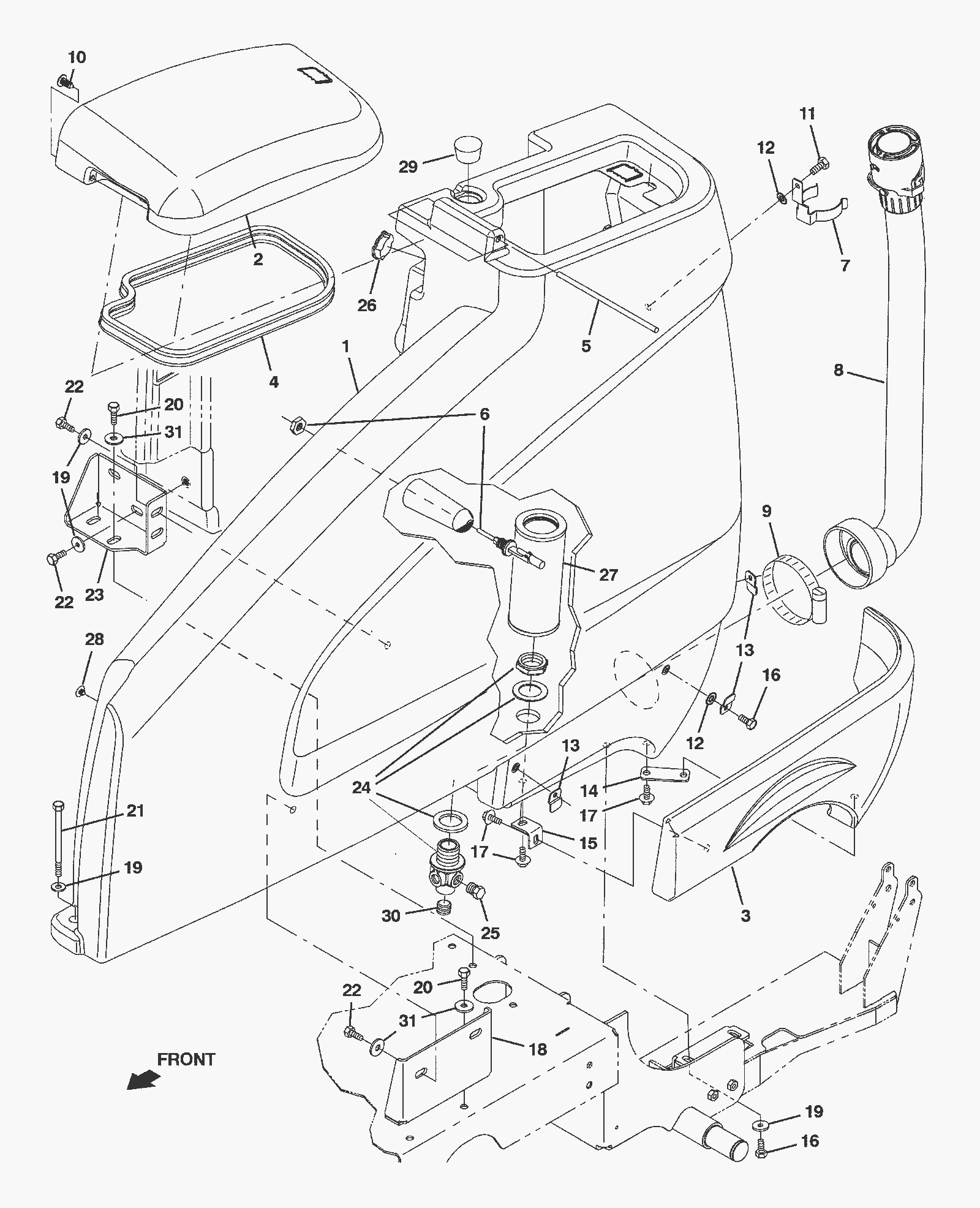

Solution Tank Assembly

#PartDescription ReqNotesAvailability
1 275-5487 Solution tank (Tennant Industrial) 1
2a 275-5488 Solution tank cover (ec-H20) (Tennant Industrial) 1
2b 675-3462 COVER, TANK, SOLTN, TJ, REPLMT [ec-H2O] (Tennant Industrial) 1
2c 775-0471 Aftermarket solution tank cover with labels 1
3 275-5490 Left hand rear bumper (Tennant Industrial) 1
4 275-7372 SEAL, AFMKT, BULB, DUAL, 08FT [F/.30GAP] 1
5 275-5491 8 1/2 inch round plastic bar (Tennant Industrial) 1
6 175-9554 Float switch 1
7 475-3439 BRACKET, MTG, HOSE 1
8 475-3771 HOSE ASSY, DRAIN, 2.00ID X 33.9L, BLK 1
9 275-7690 Hose clamp (Tennant Industrial) 1
10 475-7414 PLUG, HOLE, RND, 0.38H .4-.7, BLK NYL (Tennant Industrial) 1
11 999-0784 Screw M8-1.25 x 16mm hex head stainless steel 1
12 175-2893 Washer 5/16 internal/external locking 4
13 275-1310 Bumper mounting bracket (Tennant Industrial) 3
14 275-1311 Bumper mounting plate (Tennant Industrial) 1
15 275-1312 Bumper mounting angle (Tennant Industrial) 1
16 999-0783 Screw M8-1.25 x 16mm hex head 5
17 275-4736 Screw M8-1.25 x 20mm hex washer head stainless steel SEMS 4
18 275-5493 Solution tank mounting bracket (Tennant Industrial) 1
19 175-7920 Washer M8 flat stainless steel 5
20 999-1372 Bolt M10-1.5 x 25mm hex head stainless steel 6
21 275-1474 Screw M8-1.25 x 110mm hex head (Tennant Industrial) 1
22 999-0783 Screw M8-1.25 x 16mm hex head 6
23 275-5495 Front tank mounting bracket (Tennant Industrial) 1
24 275-7702 Solution fitting assembly (Tennant Industrial) 1
25 175-4759 3/8 inch nylon plug 1
26 175-3415 Solution tank plug 1
27 275-5547 Solution filter (Tennant Industrial) 1
28 275-1313 Nylon round plug (Tennant Industrial) 2
29 775-0472 Round plug 1
30 775-0473 Plug pipe fitting hex socket 1
31 275-1169 Washer .40 x 12mm flat 6
