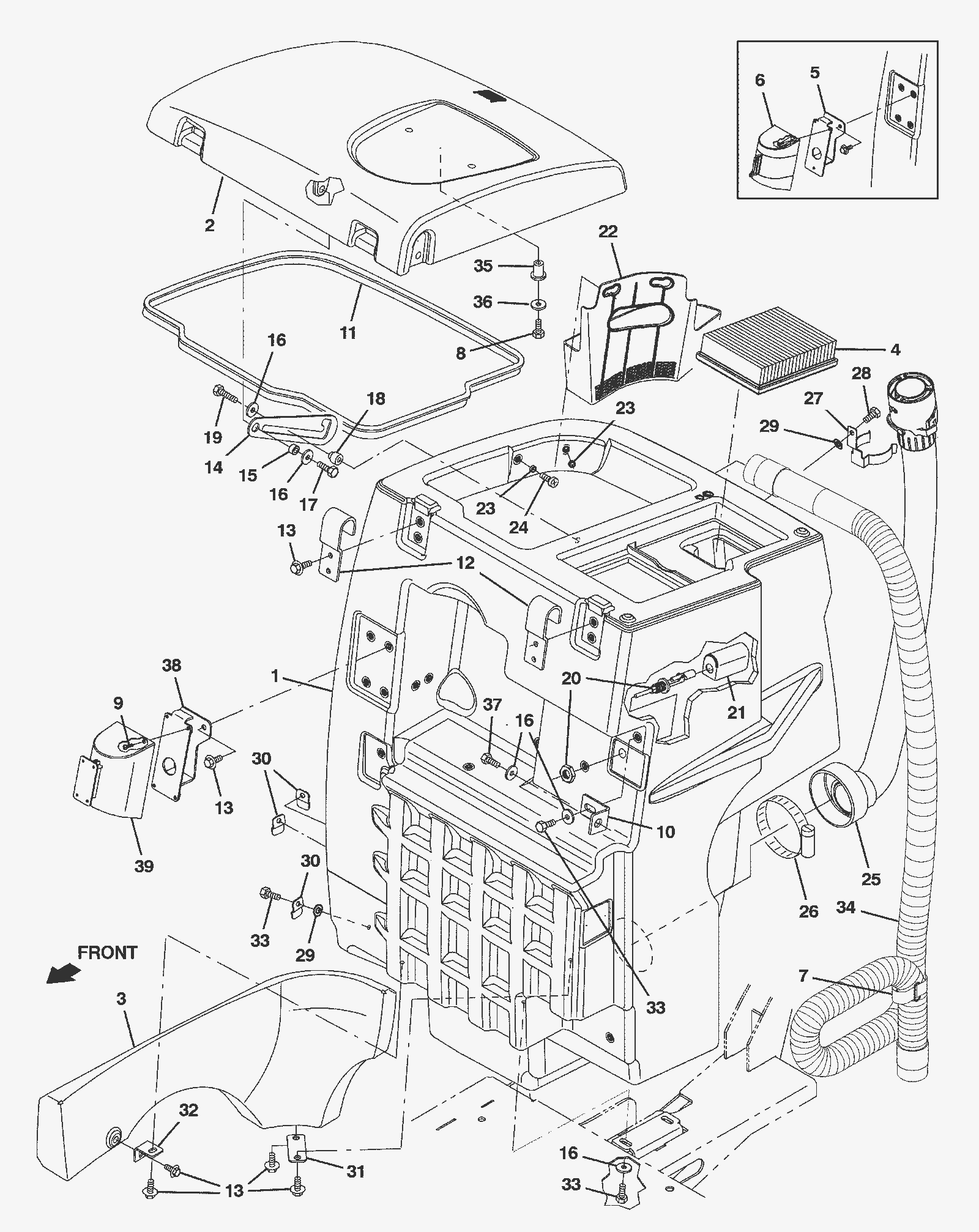

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
275-1297
|
Recovery tank (Tennant Industrial) |
1 |
|
|
2a |
675-4450
|
COVER KIT, TANK, RECVY, AFMKT, NA (Tennant Industrial) |
1 |
|
|
2b |
675-5282
|
COVER KIT, TANK, RECVY, AFMKT, TJ (Tennant Industrial) |
1 |
|
|
2c |
775-0469
|
Aftermarket recovery tank cover |
1 |
|
|
3 |
275-1299
|
Right hand rear bumper (Tennant Industrial) |
1 |
|
|
4 |
175-3363
|
Fan filter |
1 |
|
|
5 |
775-0470
|
Belt bracket weldment |
1 |
(Before SN 010514) |
|
6 |
375-7732
|
Safety belt |
1 |
(Before SN 010514) |
|
7 |
275-7700
|
Fastener |
1 |
|
|
8 |
175-2860
|
Screw 1/4-20 x 1 hex stainless steel |
1 |
|
|
9 |
999-9113
|
Screw M4-.7 x 16mm pan head phillips stainless steel |
3 |
|
|
10 |
275-7682
|
Tank mounting angle (Tennant Industrial) |
1 |
|
|
11 |
275-7372
|
SEAL, AFMKT, BULB, DUAL, 08FT [F/.30GAP] |
1 |
|
|
12 |
275-1305
|
Cover mounting bracket (Tennant Industrial) |
2 |
|
|
13 |
275-4736
|
Screw M8-1.25 x 20mm hex washer head stainless steel SEMS |
10 |
|
|
14 |
275-7686
|
Arm plate (Tennant Industrial) |
1 |
|
|
15 |
675-9891
|
Spacer |
1 |
|
|
16 |
175-7920
|
Washer M8 flat stainless steel |
8 |
|
|
17 |
999-0501
|
Bolt M8-1.25 x 25mm hex head full thread stainless steel |
1 |
|
|
18 |
275-1306
|
Sleeve (Tennant Industrial) |
1 |
|
|
19 |
999-0786
|
Screw M8-1.25 x 35mm hex head stainless steel |
1 |
|
|
20 |
175-9554
|
Float switch |
1 |
|
|
21 |
275-4664
|
Float switch protector bracket |
1 |
|
|
22 |
275-1307
|
Debris tray (Tennant Industrial) |
1 |
|
|
23 |
275-7679
|
Sleeve (Tennant Industrial) |
2 |
|
|
24 |
275-1308
|
Screw M8-1.25 x 20mm pan head phillips (Tennant Industrial) |
2 |
|
|
25 |
475-3771
|
HOSE ASSY, DRAIN, 2.00ID X 33.9L, BLK |
1 |
|
|
26 |
275-7690
|
Hose clamp (Tennant Industrial) |
1 |
|
|
27 |
475-3439
|
BRACKET, MTG, HOSE |
1 |
|
|
28 |
999-0784
|
Screw M8-1.25 x 16mm hex head stainless steel |
1 |
|
|
29 |
175-2893
|
Washer 5/16 internal/external locking |
4 |
|
|
30 |
275-1310
|
Bumper mounting bracket (Tennant Industrial) |
3 |
|
|
31 |
275-1311
|
Bumper mounting plate (Tennant Industrial) |
1 |
|
|
32 |
275-1312
|
Bumper mounting angle (Tennant Industrial) |
1 |
|
|
33 |
999-9092
|
Screw M8-1.25 x 20mm hex head stainless steel |
6 |
|
|
34 |
275-6501
|
Vacuum hose (TENNANT INDUSTRIAL) |
1 |
|
|
35 |
175-5424
|
Nut 1/4-20 isolator wall thick |
1 |
|
|
36 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
1 |
|
|
37 |
999-0783
|
Screw M8-1.25 x 16mm hex head |
1 |
|
|
38 |
775-0498
|
Belt bracket weldment |
1 |
(After SN 101513) |
|
