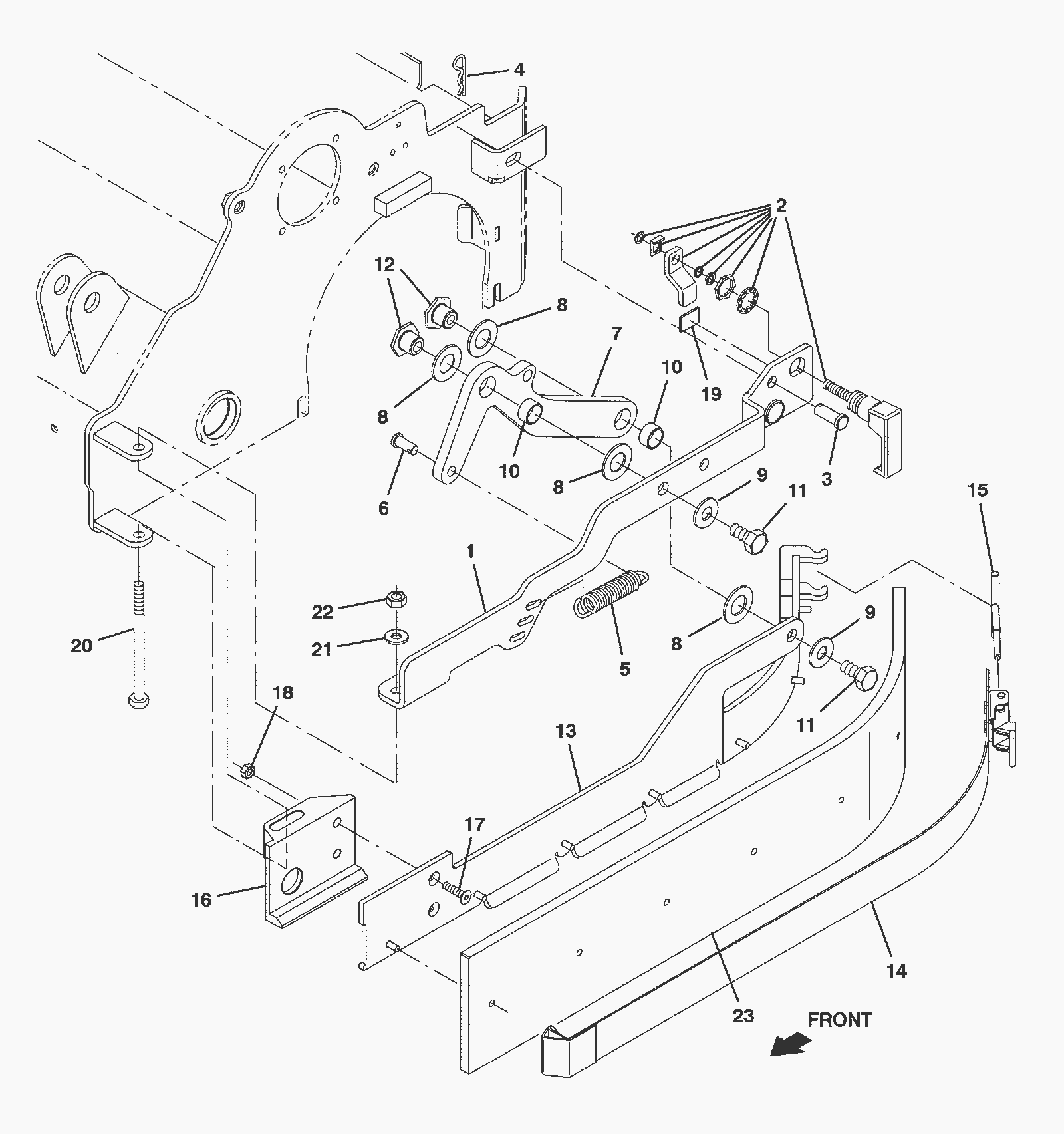

| # | Part | Description |
Req | Notes | Availability |
|---|
N/S |
675-5146
|
ARM KIT, SQGE, SIDE, LH, AFMKT [T16] (Tennant Industrial) |
1 |
(includes 1-19) |
|
1 |
275-1294
|
Left hand side squeegee bracket (Tennant Industrial) |
1 |
|
|
2 |
275-7341
|
Latch (yellow) |
1 |
|
|
3 |
175-0637
|
Clevis pin |
1 |
|
|
4 |
175-2117
|
Cotter pin |
1 |
|
|
5 |
175-3345
|
Extension spring |
1 |
|
|
6 |
175-0655
|
Clevis pin |
1 |
|
|
7 |
275-1291
|
Squeegee bellcrank lift (Tennant Industrial) |
1 |
|
|
8 |
775-0497
|
Washer 30mm OD 16mm ID 1.5mm thick thrust |
4 |
|
|
9 |
999-0355
|
Washer 3/8 x 7/8 SAE flat stainless steel |
2 |
|
|
10 |
175-3349
|
Sleeved bushing |
2 |
|
|
11 |
999-1170
|
Bolt M10-1.5 x 20mm hex head stainless steel |
2 |
|
|
12 |
275-9507
|
NUT, T, M10 X 1.50 X 15.80OD X 13.0L (Tennant Industrial) |
2 |
|
|
13 |
275-1295
|
Left hand squeegee weldment (Tennant Industrial) |
1 |
|
|
14 |
275-7339
|
STRAP ASSY, SQGE, SIDE (Tennant Industrial) |
1 |
|
|
15 |
275-7396
|
Latch |
1 |
|
|
16 |
275-1296
|
Left hand squeegee guide (Tennant Industrial) |
1 |
|
|
17 |
475-7402
|
SCREW, FLT, SOC, M6 X 1.00 X 25, SS (Tennant Industrial) |
2 |
|
|
18 |
999-0497
|
Nut M6-1 nylon insert lock stainless steel |
2 |
|
|
19 |
375-7041
|
Gasket |
1 |
|
|
20 |
275-1474
|
Screw M8-1.25 x 110mm hex head (Tennant Industrial) |
1 |
|
|
21 |
999-0123
|
Washer 1/4 SAE flat zinc plated |
1 |
|
|
22 |
999-0496
|
Nut M8-1.25 nylon insert lock stainless steel |
1 |
|
|
23a |
275-6499
|
Squeegee blade linatex (TENNANT INDUSTRIAL) |
1 |
|
|
23b |
275-7389
|
Squeegee blade polyurethane (Tennant Industrial) |
1 |
|
|
23c |
275-1293
|
Squeegee blade 36 inch side gum (Tennant Industrial) |
1 |
|
|
